External vibrator AR 75/3/240

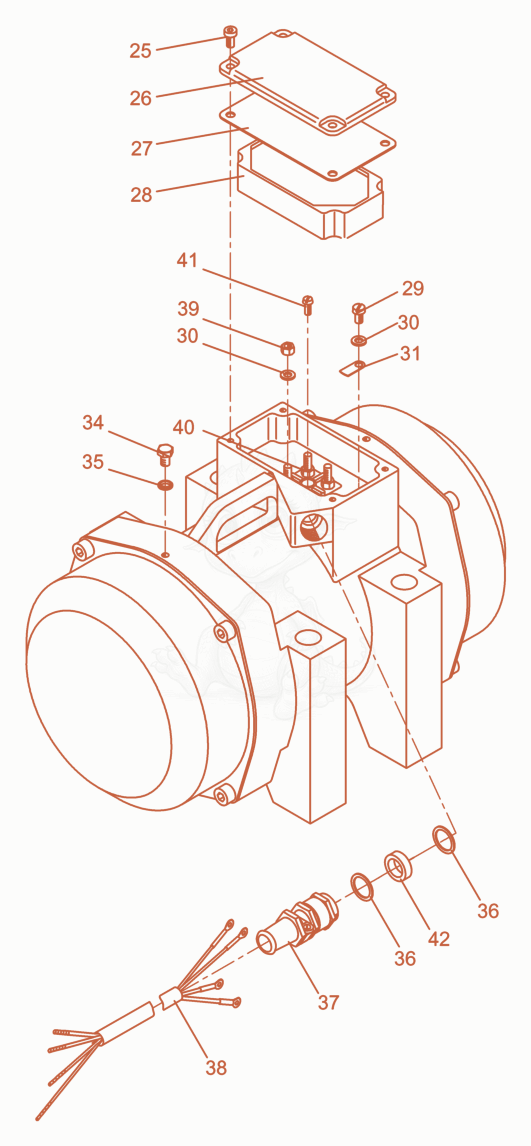

AR75/3/240/415 External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR75/3/240/415, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000095509
    $0.31
    SCREW M5 X 12 SOC.HD. - 5000095509×4
  • 265000067945
    $59.91
    Cover - 5000067945×1
  • 275000068755
    $6.06
    Seal - 5000068755×1
  • 285000097941
    $38.58
    MOUNT-RUBBER - 5000097941×1
  • 295000013175
    $0.59
    SCREW M5 X 12 SOC.HD.CAP - 5000013175×1
  • 305000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×1
  • 315002003378
    $7.12
    LABEL-GROUND SYMBOL - 5002003378×1
  • 335000012642
    $0.13
    WASHER B4.3 MS,FLAT - 5000012642×9
  • 345000013550
    $0.40
    SCREW M6 X 8 HX.HD. - 5000013550×2
  • 355000021670
    $4.91
    SEAL-RING 6.7 X 10 X 1 - 5000021670×2
  • 365002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×2
  • 375000038054
    $25.69
    SCREW-CONNECTION - 5000038054×1
  • 385000097690
    $172.08
    CABLE-POWER SUPPLY - 5000097690×1
  • 395000013178
    $0.40
    NUT M4 MS,HEX. - 5000013178×12
  • 405002004537Not stocked
    Terminal board×1
  • 415000011724
    $2.39
    SCREW M4 X 10 SOC.HD. - 5000011724×2
  • 425002006450
    $0.57
    Gasket - 5002006450×1
