HI 770 XHD Indirect Air Heater, Diesel, 2x12

ARCTICBEARXHD Control panel, AC Diagram

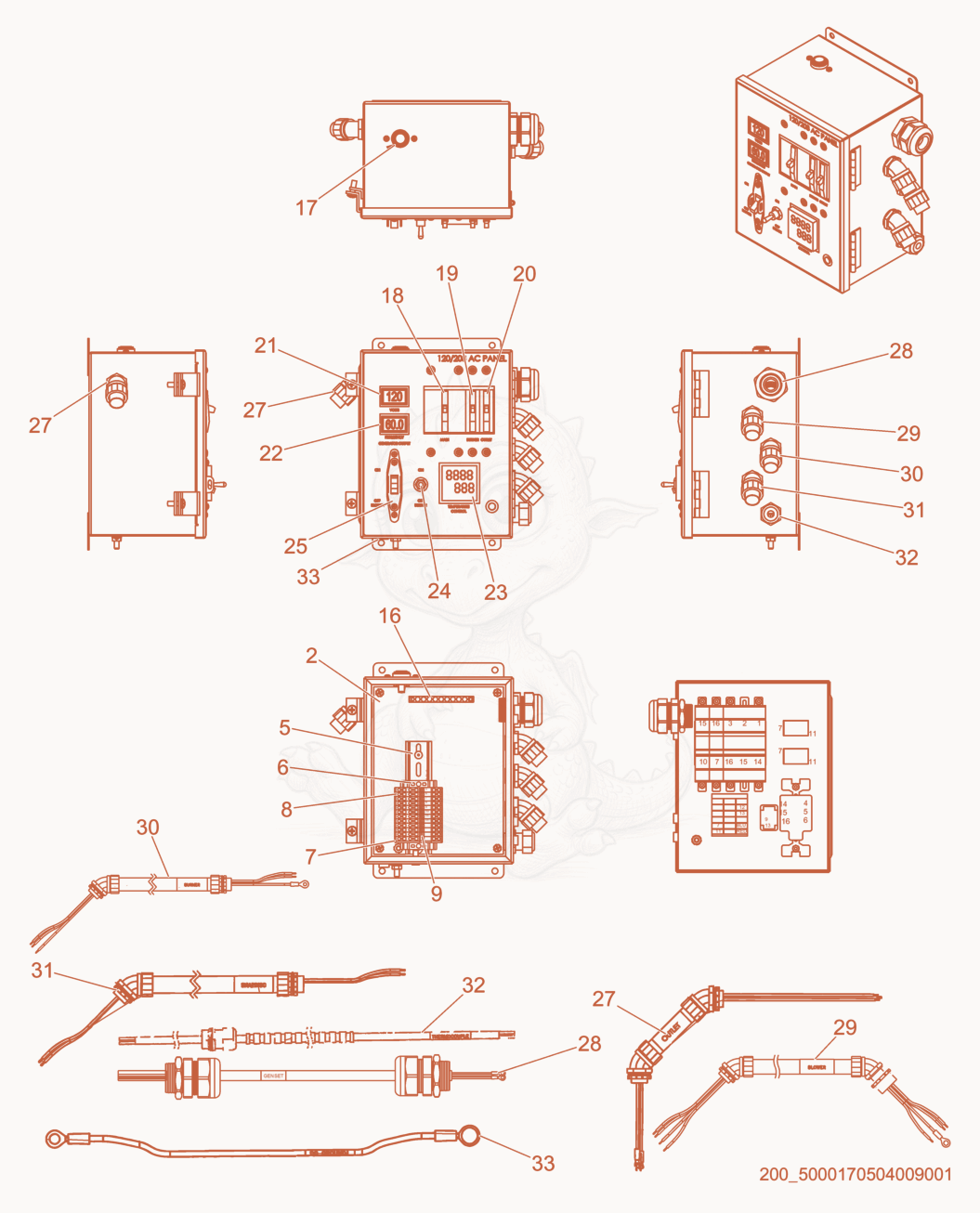

Exploded parts diagram of the Control panel, AC of a Wacker Neuson ARCTICBEARXHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000170598Not stocked
    Panel×1
  • 55000170665Not stocked
    Rail×1
  • 65000170668Not stocked
    Terminal block end×2
  • 75000171349Not stocked
    Terminal×1
  • 85000173285Not stocked
    Terminal block×12
  • 95000171350Not stocked
    Terminal×2
  • 165000171538Not stocked
    Bar×1
  • 175000166774Not stocked
    Snap disc×1
  • 185000166769Not stocked
    Circuit breaker×1
  • 195000166775Not stocked
    Circuit breaker×1
  • 205000166770Not stocked
    Circuit breaker×1
  • 215000166771Not stocked
    Voltage meter×1
  • 225000166772Not stocked
    Frequency meter×1
  • 235000166804Not stocked
    Temperature control×1
  • 245000166776Not stocked
    Toggle switch×1
  • 255000166773Not stocked
    Switch×1
  • 275000170508Not stocked
    Cable cpl.×1
  • 285000192653Not stocked
    Power cable×1
  • 295000170509Not stocked
    Cable cpl.×1
  • 305000170505Not stocked
    Cable cpl.×1
  • 315000170507Not stocked
    Cable cpl.×1
  • 325000170510Not stocked
    Cable cpl.×1
  • 335000170511Not stocked
    Cable cpl.×1
  • 345000170504Not stocked
    Control panel cpl.×1
