Battery rammer AS30e

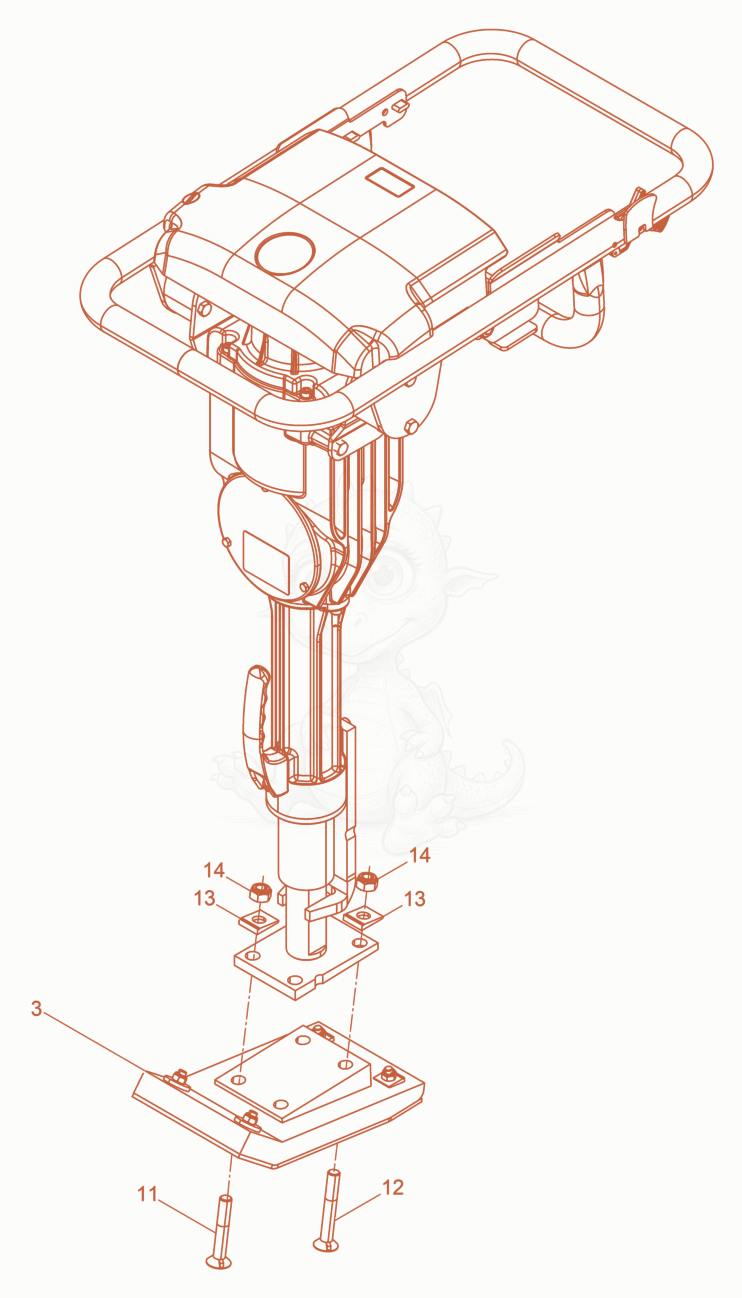

AS30 Vibratory Rammers cpl. Diagram

Exploded parts diagram of the Vibratory Rammers cpl. of a Wacker Neuson AS30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000046243Not stocked
    Ramming shoe cpl.×1
  • 115000011158
    $1.79
    BOLT-PLOW M12X75 DIN 604 - 5000011158×2
  • 125000011156
    $35.48
    BOLT-PLOW M12X85 DIN 604 - 5000011156×2
  • 135000013961
    $0.83
    WASHER 13 TAPERED - 5000013961×4
  • 145000015061
    $0.51
    NUT-LOCK VM12 HEX - 5000015061×4
