Battery rammer AS50e

AS50 Free-floating frame cpl. Diagram

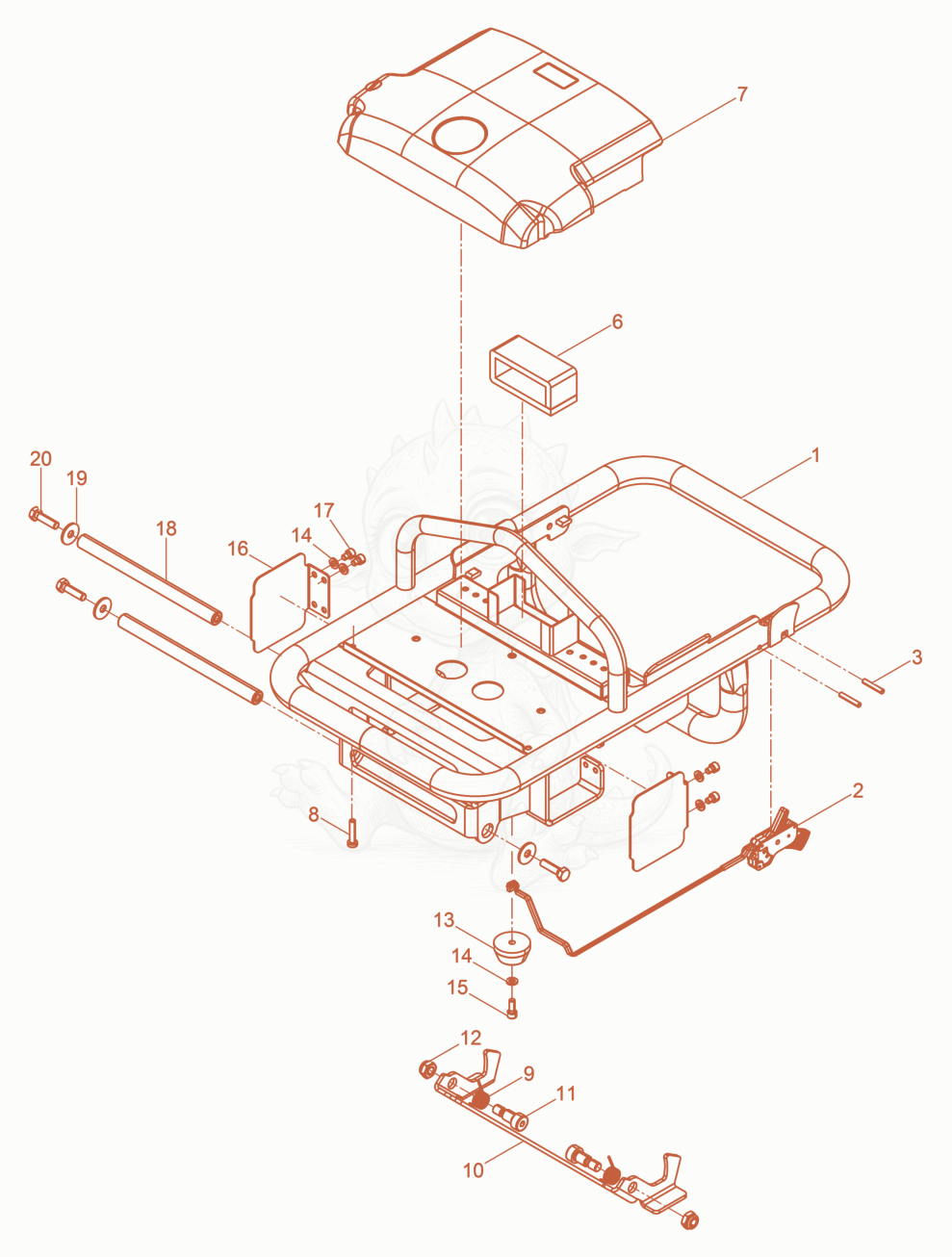

Exploded parts diagram of the Free-floating frame cpl. of a Wacker Neuson AS50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100002573Not stocked
    Free-floating frame×1
  • 25100002571
    $137.65
    Switch - 5100002571×1
  • 35100009734
    $1.77
    Grooved pin 5x30 - 5100009734×2
  • 65100002878
    $30.34
    Foam - 5100002878×2
  • 75100001723
    $240.12
    Protective Hood cpl. - 5100001723×1
  • 85000108370
    $0.70
    SCREW M6 X 30,OVAL HD. - 5000108370×6
  • 95100004202
    $32.81
    Leg spring - 5100004202×2
  • 105100003806
    $246.72
    Locking plate - 5100003806×1
  • 115100009735
    $4.33
    Shim screw 12x16 - 5100009735×2
  • 125000019141Not stocked
    Hexagon nut×2
  • 135100009588
    $188.61
    spring holder - 5100009588×1
  • 145000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×9
  • 155000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×1
  • 165100010370
    $130.82
    Side plate - 5100010370×2
  • 175000014425
    $2.06
    SCREW M6 X 8 SOC.HD. - 5000014425×8
  • 185100009611
    $135.21
    Axle - 5100009611×2
  • 195000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×4
  • 205000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
