AS62ve/25

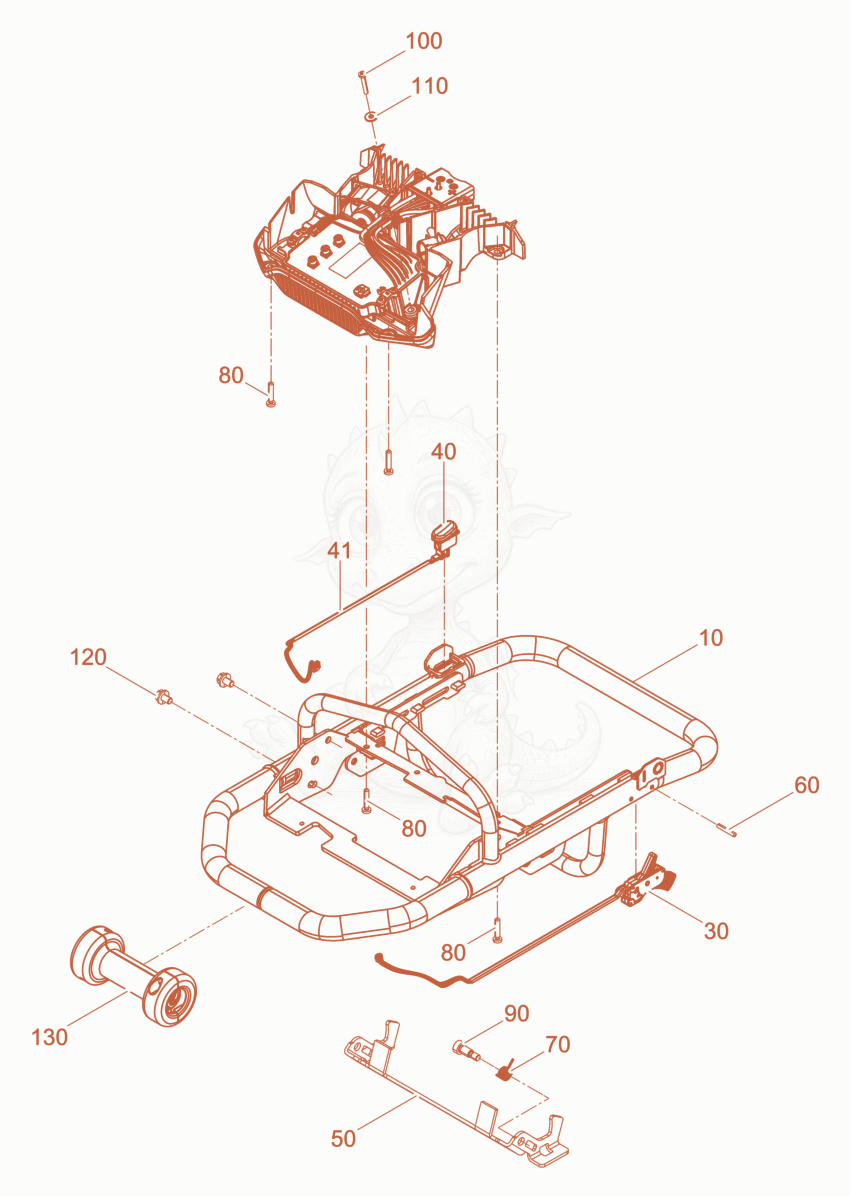

AS62VE/25 Guiding frame cpl. AS speed Diagram

Exploded parts diagram of the Guiding frame cpl. AS speed of a Wacker Neuson AS62VE/25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100080529Not stocked
    Guide Handle×1
  • 305100002571
    $137.65
    Switch - 5100002571×1
  • 405100083122Not stocked
    Switch×1
  • 415100083123Not stocked
    Wire cpl.×1
  • 505100025574
    $187.70
    Locking plate - 5100025574×1
  • 605100009734
    $1.77
    Grooved pin 5x30 - 5100009734×2
  • 705100025600
    $3.54
    Leg spring - 5100025600×2
  • 805000108370
    $0.70
    SCREW M6 X 30,OVAL HD. - 5000108370×4
  • 905100005556
    $2.70
    Shim screw 10x16 - 5100005556×2
  • 1005100077318Not stocked
    Screw×2
  • 1105000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×2
  • 1205100027071
    $1.51
    Screw M8x14 HHCS,10.9,SEM,w/PC80 Patch - 5100027071×4
  • 1305100064900
    $18.23
    transport roller cpl. - 5100064900×1
