AT36e

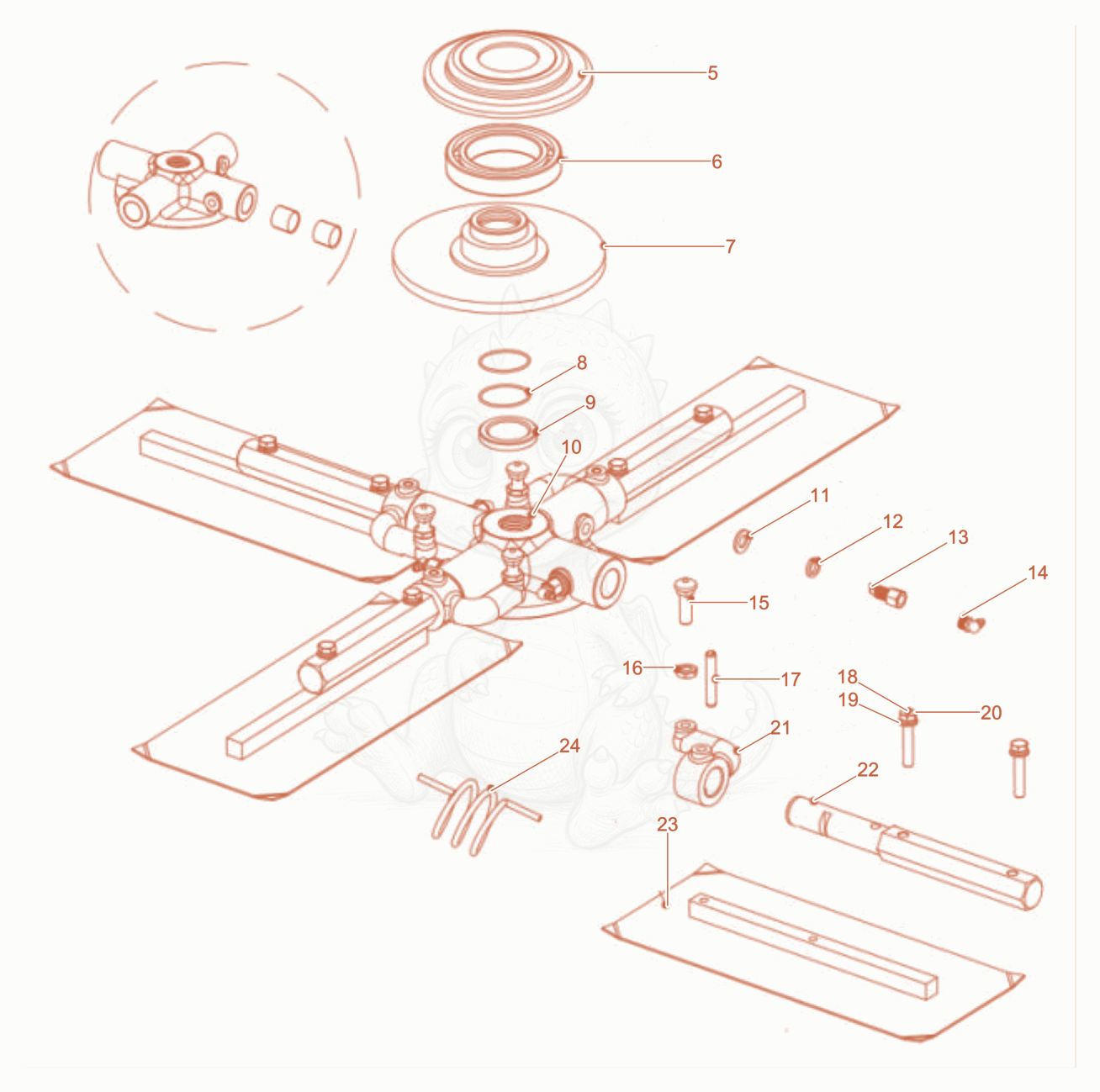

AT36E blades Diagram
- 55100083530Not stockedGland×1
- 65100081704Not stockedGrooved ball bearing×1
- 75100081705Not stockedBearing flange×1
- 85100083691Not stockedO-ring Ø16x1.9×2
- 95100081657Not stockedWasher×1
- 105100081659Not stockedspider×1
- 115100081660Not stockedWasher×4
- 125100083544Not stockedGrower Washer 10 B DIN 127×4
- 135100083525Not stockedGrease Fitting Support Bolt M10x18×4
- 145100083524Not stockedGrease Fitting M10x1x90º×4
- 155100083536Not stockedHalf Round Head Square Neck Bolt M10x30×4
- 165100083674Not stockedThin nut M8×4
- 175100081667Not stockedRoll pin×4
- 185100083604Not stockedSpring Washer Ø8×8
- 195100081669Not stockedSpring washer×21
- 205100081671Not stockedWasher×21
- 215100083535Not stockedArm Support×4
- 225100083534Not stockedSpider Arm×4
- 235100083533Not stockedFinishing Blade Set 36×1
- 245100083568Not stockedTorsional Spring×4
