BP45 Pureheat Booster Pump, 1.5hp

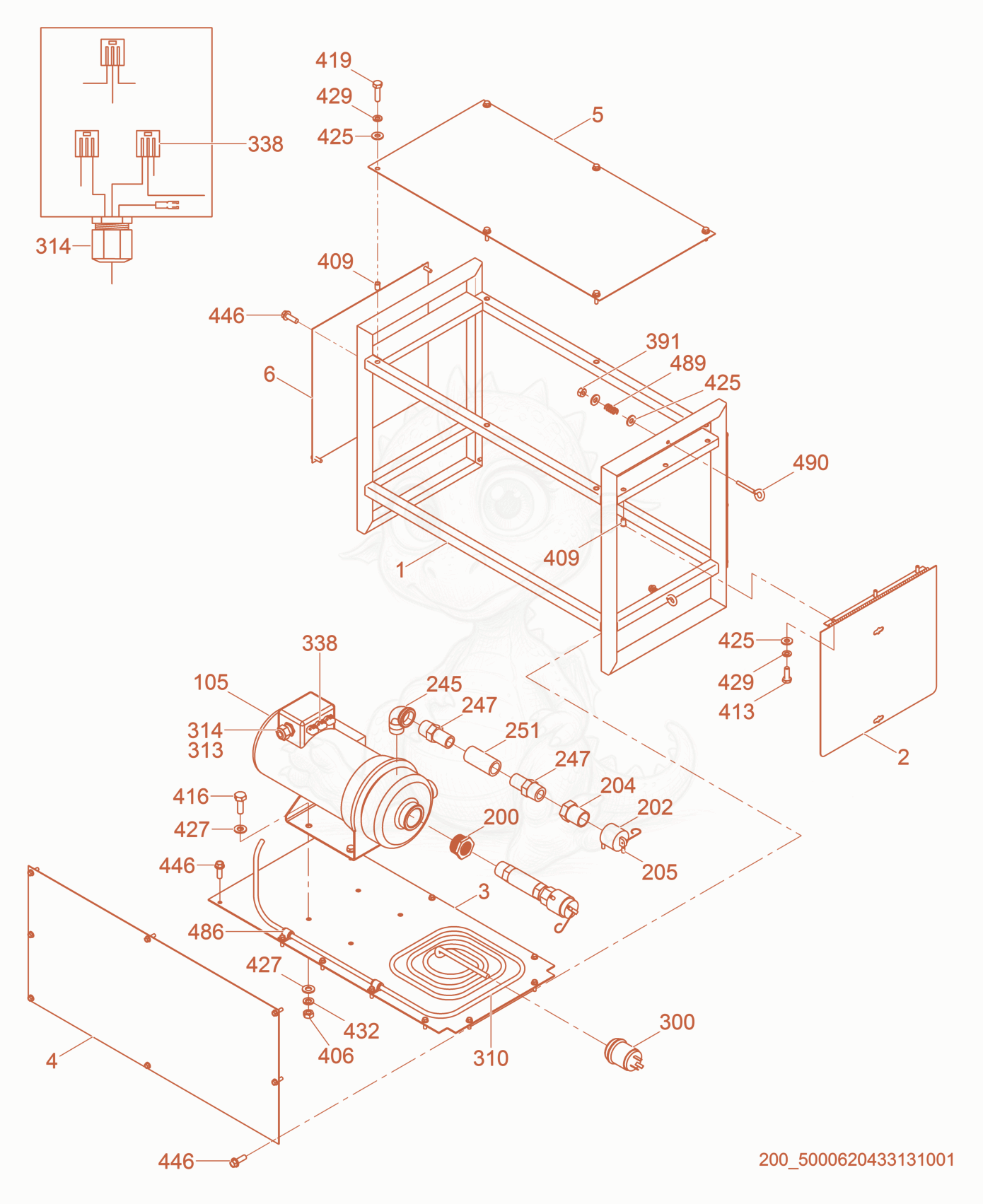

BP45 Booster Pump cpl. Diagram

Exploded parts diagram of the Booster Pump cpl. of a Wacker Neuson BP45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000182704Not stocked
    Main frame×1
  • 25000182705Not stocked
    Door×1
  • 35000182700Not stocked
    Lower panel×1
  • 45000182701Not stocked
    Panel×2
  • 55000182702Not stocked
    Top panel×1
  • 65000182703Not stocked
    Back panel×1
  • 105000166029Not stocked
    Hose cpl.×1
  • 115000166028Not stocked
    Hose cpl.×1
  • 1055000168532Not stocked
    Pump/motor cpl.×1
  • 2005000168580Not stocked
    Bushing×1
  • 2015000168581Not stocked
    Cam-lock×1
  • 2025000168583Not stocked
    Cam-lock×2
  • 2035000168584Not stocked
    Cam-lock×1
  • 2045000168610Not stocked
    Cam-lock×2
  • 2055000168611Not stocked
    Clip×4
  • 2455000168403Not stocked
    Elbow fitting×1
  • 2475000168386Not stocked
    Barbed hose fitting×4
  • 2515000169410Not stocked
    Hose×1
  • 3005000166698Not stocked
    Plug×1
  • 3105000166535Not stocked
    Generator cable×1
  • 3135000166459Not stocked
    Lock nut×1
  • 3145000166473Not stocked
    Cord grip×1
  • 3385000166833Not stocked
    Terminal×4
  • 3915000167767Not stocked
    Nut×2
  • 4065000167692Not stocked
    Nut×4
  • 4095000167700Not stocked
    Threaded insert×9
  • 4135000167704Not stocked
    Bolt×3
  • 4165000167708Not stocked
    Bolt×4
  • 4195000167721Not stocked
    Bolt×6
  • 4255000167729Not stocked
    Flat washer×13
  • 4275000167731Not stocked
    Flat washer×8
  • 4295000167733Not stocked
    Lock washer×9
  • 4325000167736Not stocked
    Lock washer×4
  • 4465000167793Not stocked
    Screw×30
  • 4865000168356Not stocked
    Clamp×2
  • 4895000167796Not stocked
    Spring×2
  • 4905000167852Not stocked
    Eye bolt×2
