BPU2540A

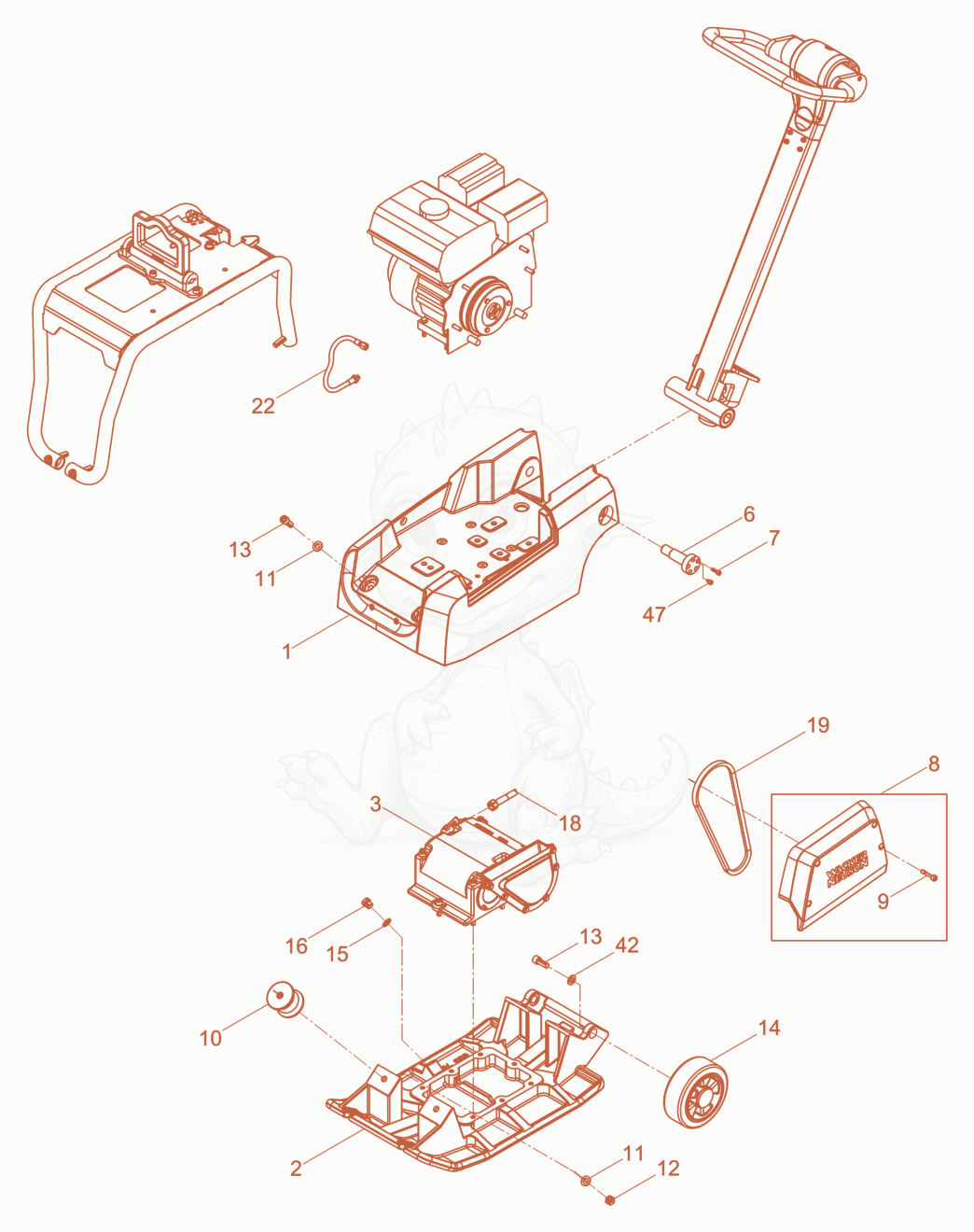

BPU2540A Vibratory Plate cpl. Diagram
- BASEPLATE-UPPER MASS,BPU2540 - 5000125930×1
- BASEPLATE-BPU2540 - 5000125369×1
- Exciter cpl. - 5000220478×1
- axle - 5000204120×2
- SCREW M6 X 20 SOC.HD. - 5000011551×8
- Belt guard - 5100050070×1
- SCREW - 5000216658×4
- shockmount - 5000125931×4
- WASHER B13 FLAT - 5000010620×8
- NUT M12 8,HEX - 5000010884×4
- SCREW M12 X 30 SOC.HD - 5000011529×6
- WHEEL - 5000125927×2
- SEAL-RING 16.7 X 24 X 1.5 - 5000014968×1
- PLUG M16 HX.HD. - 5000011034×1
- HOSE-HYDRAULIC - 5000125357×1
- V-BELT,BPU2540,XPA 850 LW FO-Z - 5000125933×1
- HOSE PIPE-OIL DRAIN,BPU2540 - 5000129265×1
- WASHER-LOCK A12 - 5000031565×2
- SCREW M6 X 8 SOC.HD. - 5000014425×2
