BPU 3050A

BPU3050A Starter Diagram

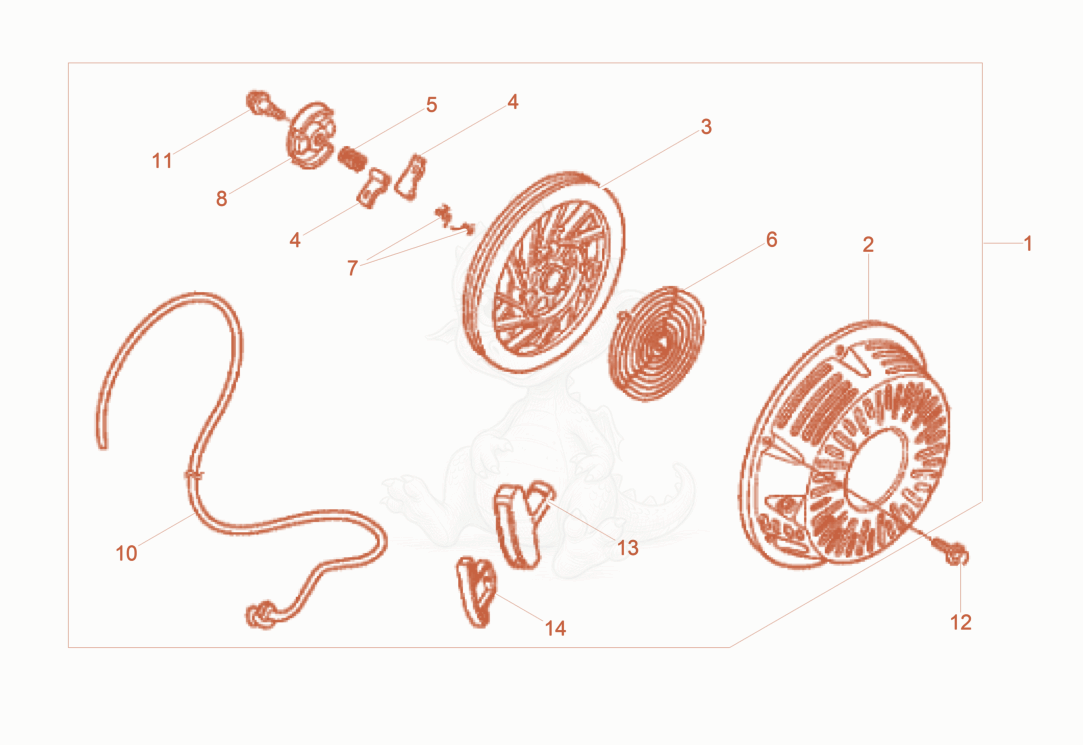

Exploded parts diagram of the Starter of a Wacker Neuson BPU3050A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000424
    $96.05
    Starter - 5100000424×1
  • 25100000427
    $473.01
    Housing cpl. - 5100000427×1
  • 35000081644
    $50.62
    PULLEY-REWIND STARTER - 5000081644×2
  • 45000081645
    $9.03
    RATCHET-PAWL,REWIND STARTER - 5000081645×4
  • 55000081646
    $7.24
    SPRING-STARTER FRICTION - 5000081646×2
  • 65000081647
    $22.20
    SPRING-STARTER RETURN - 5000081647×2
  • 75000081648
    $6.31
    SPRING-STARTER RATCHET - 5000081648×4
  • 85000081649
    $17.44
    HOLDER-STARTER SPRING - 5000081649×2
  • 105000151037
    $13.22
    ROPE-RECOIL STARTER - 5000151037×2
  • 115000081658
    $4.88
    Screw - 5000081658×2
  • 125000071053
    $1.89
    SCREW M6 X 10,HX.FLANGED - 5000071053×3
  • 135100000428
    $30.46
    handle - 5100000428Unknown×2
  • 135100039004Not stocked
    Handle×1
  • 145100000429
    $17.48
    Handle - 5100000429×1
