BPU4045A-VIBROPLATE

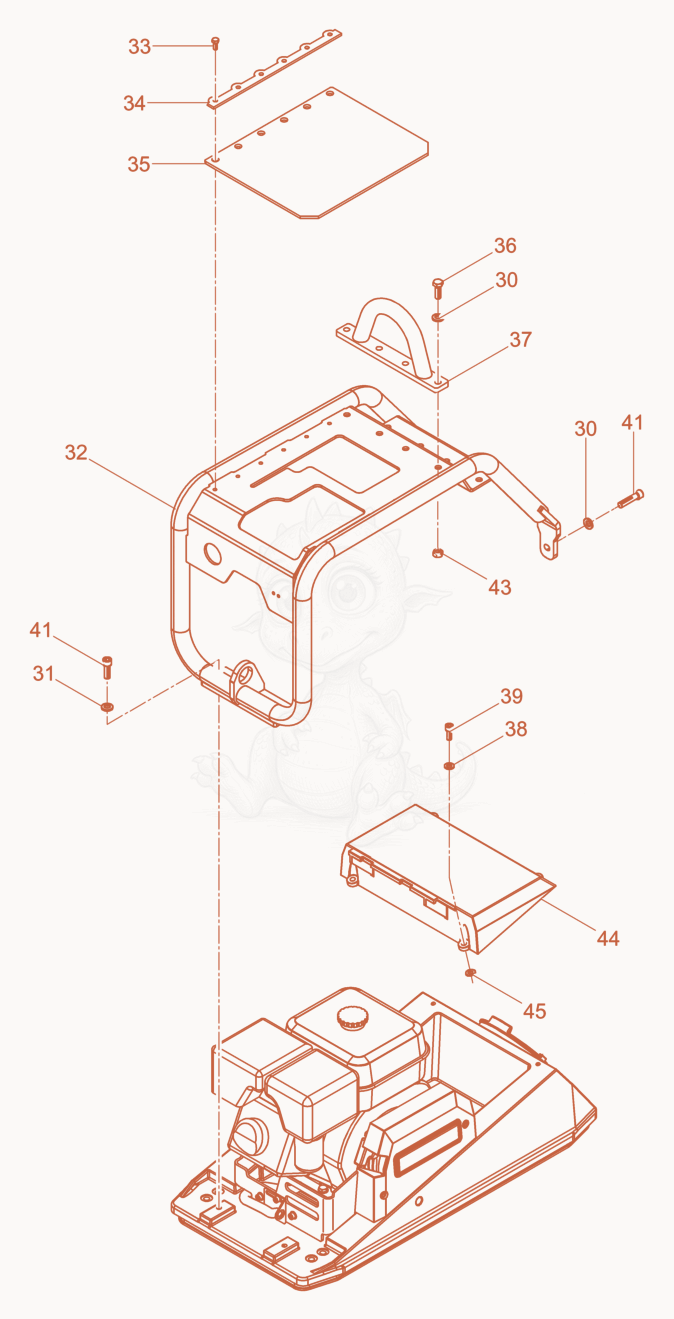

BPU4045AUS Upper Mass Diagram
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×8
- FRAME-PROTECTIVE - 5000209502×1
- SCREW M8 X 20-ST, D7500 DE - 5000105944×6
- STRAP-HOLDER - 5000099915×1
- PLATE - 5000102011×1
- SCREW M12 X 35 HX.HD. - 5000011422×4
- HOOK-LIFTING - 5000103930×1
- WASHER 10.5 - 5000010741×4
- SCREW M10 X 25 SOC.HD. - 5000011535×4
- SCREW M12 X 40 SOC.HD. - 5000011527×4
- NUT M12 8,HEX - 5000010884×4
- COVER - 5000108620×1
- WASHER-A10.5 - 5000124459×4
