BPU5045A-VIBROPLATE,REV.

BPU5045A Piston Diagram

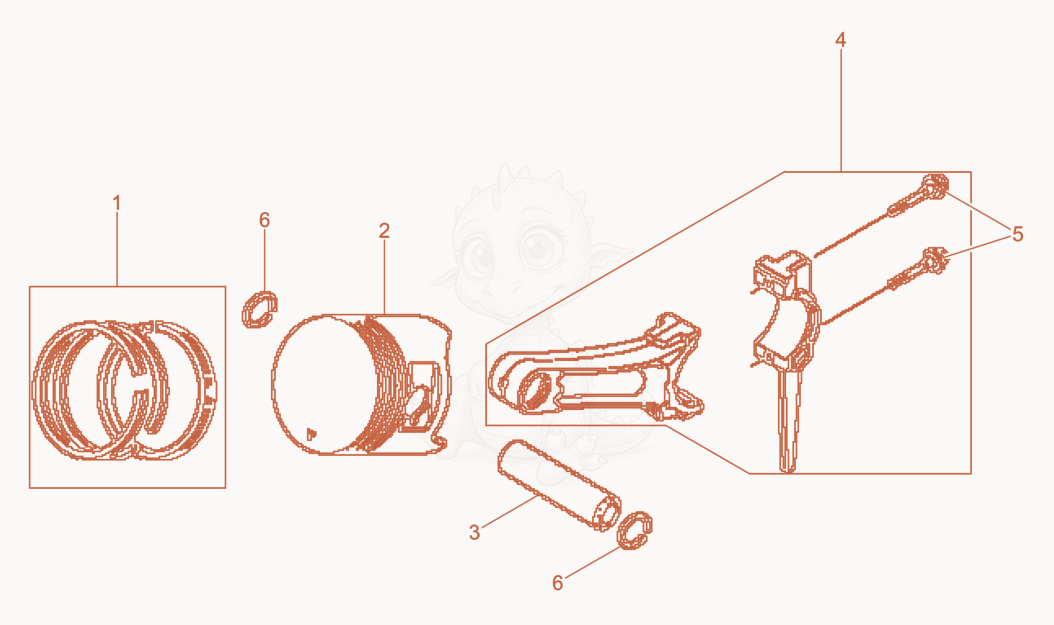

Exploded parts diagram of the Piston of a Wacker Neuson BPU5045A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217425
    $66.45
    PISTON RING SET(STD) - 5000217425Unknown×1
  • 15000217428
    $156.40
    PISTON RING SET(0.25) - 5000217428Unknown×1
  • 15000217431
    $155.84
    PISTON RING SET(0.50) - 5000217431Unknown×1
  • 15000217434Not stocked
    Set-piston rings×1
  • 25000217508Not stocked
    Piston×1
  • 25000217509Not stocked
    Piston×1
  • 25000217510Not stocked
    Piston×1
  • 25000217511Not stocked
    Piston×1
  • 35000084626
    $19.56
    PIN-PISTON - 5000084626×1
  • 45000075806
    $140.81
    X-5200000491 CONNECTING ROD ASSY - 5000075806×1
  • 45000082813
    $173.06
    CONNECTING ROD - 5000082813×1
  • 55000075807
    $5.36
    SCREW-CONNECTING ROD - 5000075807×2
  • 65000075804
    $2.77
    RET.RING 22.44MM,FORM C - 5000075804×2
