BPU5260Ah

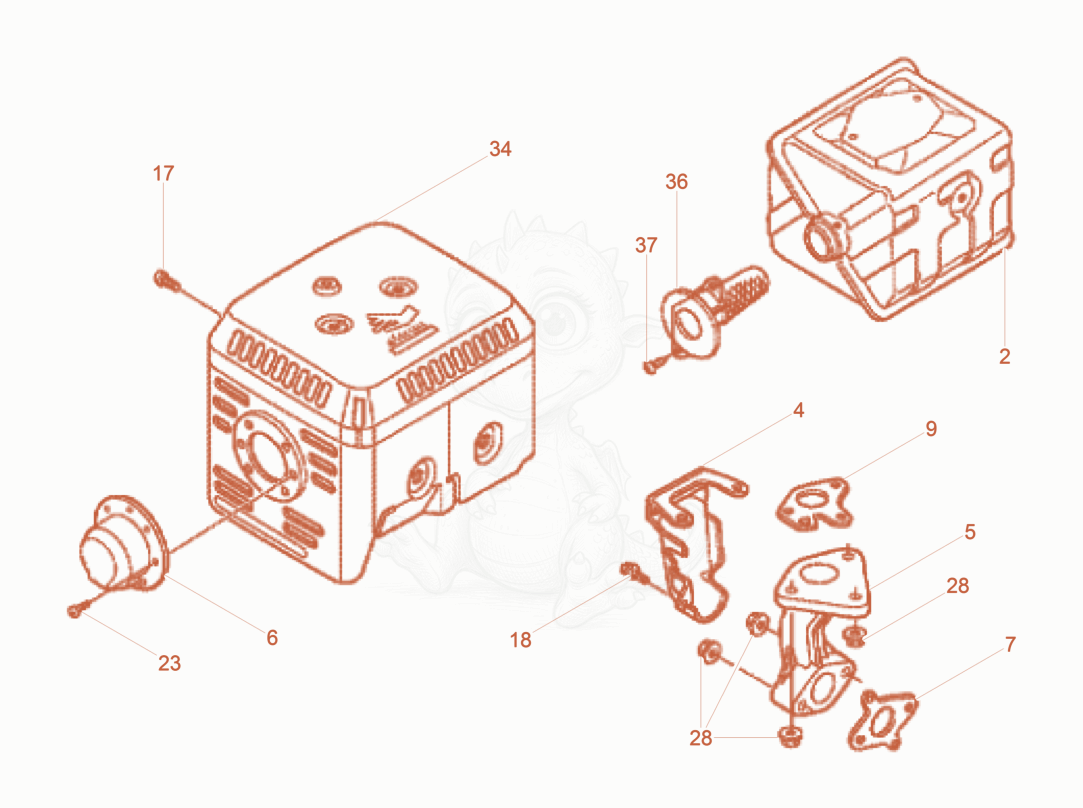

BPU5260AH Muffler Diagram

Exploded parts diagram of the Muffler of a Wacker Neuson BPU5260AH, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100039136
    $410.44
    Muffler Cpl. 5100039136×1
  • 45100049532
    $55.81
    Covering - 5100049532×1
  • 55200000448
    $33.11
    Pipe-exhaust - 5200000448×1
  • 65000217513Not stocked
    Exhaustdeflector×1
  • 75000162672
    $3.47
    GASKET-EXHAUST - 5000162672×1
  • 95100000410
    $4.09
    Exhaust seal - 5100000410×1
  • 175000089284
    $2.33
    SCREW M6X10,TAPPING - 5000089284×1
  • 185000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 235000150916
    $1.30
    SCREW-TAPPING 4 X 6 - 5000150916×3
  • 285000074738
    $1.45
    NUT M8,HEX.FLANGE - 5000074738×5
  • 345100000406
    $267.81
    Housing cpl. - 5100000406×1
  • 365200000449
    $23.10
    protection - 5200000449×1
  • 375000071070
    $2.73
    SCREW M5 X 8,TAPPING - 5000071070×2
