BPU5545A-VIBROPLATE

BPU5545A Carburetor Diagram

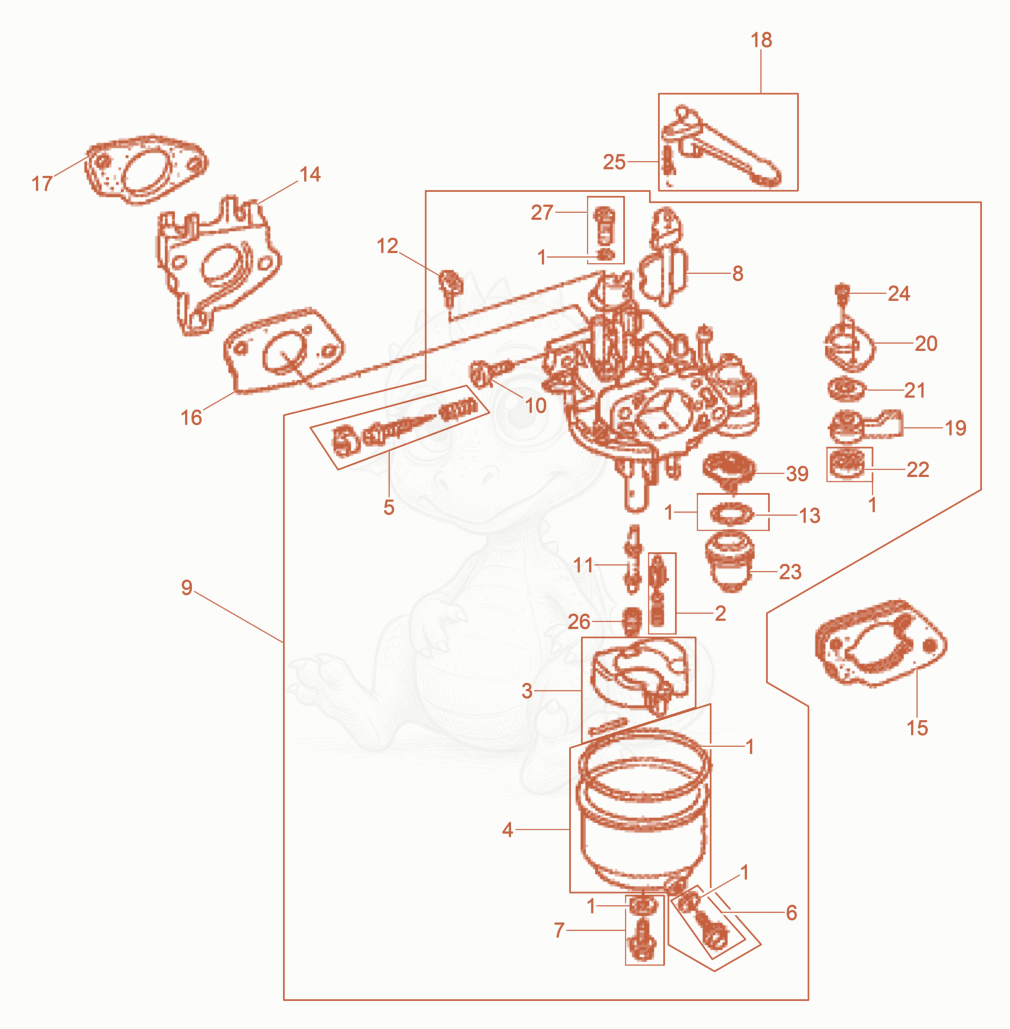

Exploded parts diagram of the Carburetor of a Wacker Neuson BPU5545A, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000074767
$22.87
SET-CARBURETOR GASKETS - 5000074767×1
25000074759
$53.05
SET-FLOAT VALVE - 5000074759×1
35000217483
$62.99
FLOAT COMPL. - 5000217483×1
45200000429
$35.49
Set-carburetor float - 5200000429×1
55000089286
$25.15
SCREW-SET - 5000089286×1
65200000430
$13.04
Screw w/washer, carb. drain - 5200000430×1
75200000431
$6.91
Screw w/washer, carb. bowl - 5200000431×1
85200000432
$34.64
Choke Shaft Set - 5200000432×1
95100001090
$86.43
Carburetor-Cpl. - 5100001090×1
105000071018
$22.04
SCREW-THROTTLE STOP - 5000071018×1
115200000434
$1.63
Jet-main - 5200000434×1
125000089281
$12.55
SET-COLLAR - 5000089281×1
135000125839Not stocked
O-Ring×1
145200000436
$4.04
Insulator-carburetor mount - 5200000436×1
155000074761
$15.63
SPACER-CARBURETOR MOUNT - 5000074761×1
165200000437
$1.30
Gasket-carburetor mount - 5200000437×1
175200000438
$1.34
Gasket-carburetor insulator - 5200000438×1
185000071013
$12.86
LEVER-CHOKE CONTROL - 5000071013×1
195000150266
$13.50
LEVER-FUEL VALVE - 5000150266×1
205000073269
$7.96
PLATE-FUEL VALVE SETTINGS - 5000073269×1
215000073270
$5.13
SPRING-FUEL LEVER - 5000073270×1
225000073272
$5.07
GASKET-FUEL VALVE LEVER - 5000073272×1
235000071023
$28.91
FILTER-FUEL STRAINER CUP - 5000071023×1
245000156674
$1.14
X-5000078550-SCREW 3X6,PAN - 5000156674×2
255000071014
$2.62
PIN 2 X 12MM,SPRING TYPE - 5000071014×1
265000162705
$8.72
JET-MAIN #98 - 5000162705×1
265100000456
$29.06
X-5000226566 Main jet - 5100000456×1
275000081997
$27.73
SET-PILOT JET,#38 - 5000081997×1
395100000396
$9.32
Filter - 5100000396×1
