BS50-2 6in

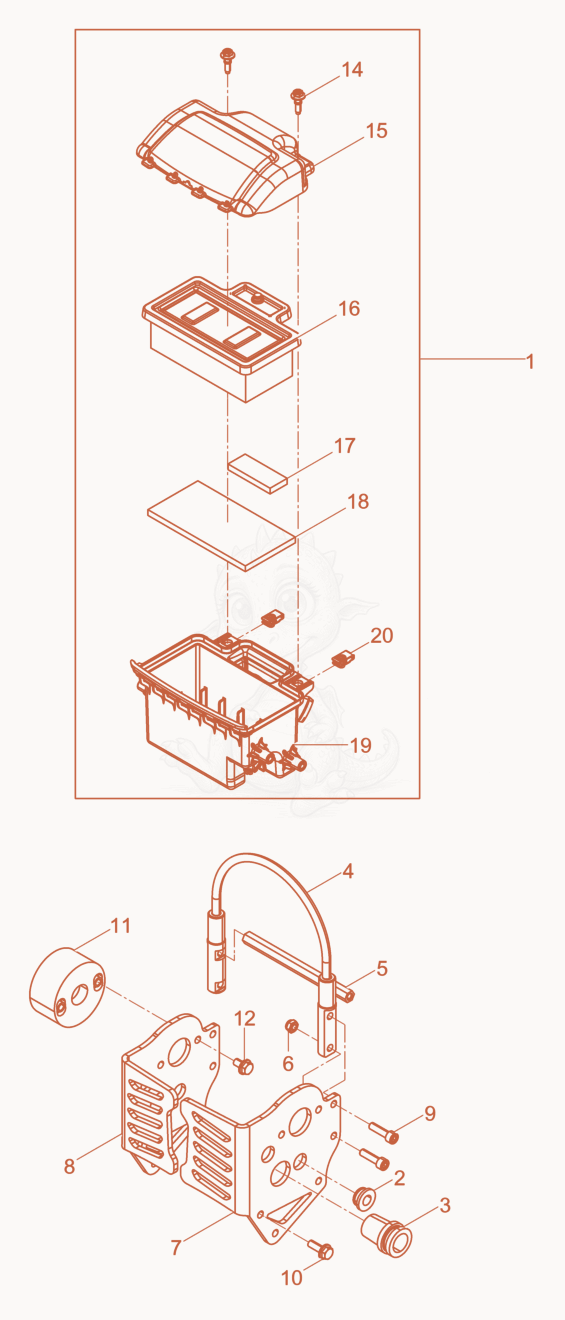

BS50-26IN Air Filter cpl. Diagram

Exploded parts diagram of the Air Filter cpl. of a Wacker Neuson BS50-26IN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100032027
    $100.38
    Air Cleaner - 5100032027×1
  • 25100032029
    $1.10
    Grommet - 5100032029×4
  • 35100032050
    $4.48
    Grommet - 5100032050×1
  • 45100057480
    $41.54
    Lifting point - 5100057480×1
  • 55100032052
    $8.95
    Brace-Shockmount Bracket - 5100032052×1
  • 65000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 75100028527
    $178.77
    Side plate left - 5100028527×1
  • 85100028528
    $178.77
    Side plate right - 5100028528×1
  • 95200023260Not stocked
    Screw×4
  • 105200001667
    $1.68
    SCREW M8X25 HHCS W/201,SEM - 5200001667×6
  • 115100032053
    $80.76
    Shockmount - 5100032053×2
  • 125100027072
    $1.77
    Screw M8x16 HHCS,10.9,SEM,w/PC80 Patch - 5100027072×4
  • 145000164398
    $2.67
    SCREW-FILTER,AIR BOX - 5000164398×2
  • 155200007043
    $41.35
    COVER-FILTER,AIR BOX ASSEMBLY - 5200007043×1
  • 165200003062
    $16.37
    Filter-Air,Element - 5200003062×1
  • 175200007044
    $1.44
    ELEMENT-PREFILTER - 5200007044×1
  • 185200007045
    $7.10
    FOAM-FILTER - 5200007045×1
  • 195200007040
    $30.06
    BASE-FILTER,AIR BOX ASSEMBLY - 5200007040×1
  • 205000164397
    $4.33
    CLIP-FILTER,AIR BOX - 5000164397×2
