BS50-4As 11in

BS50-4AS11IN Crank Gear cpl. Diagram

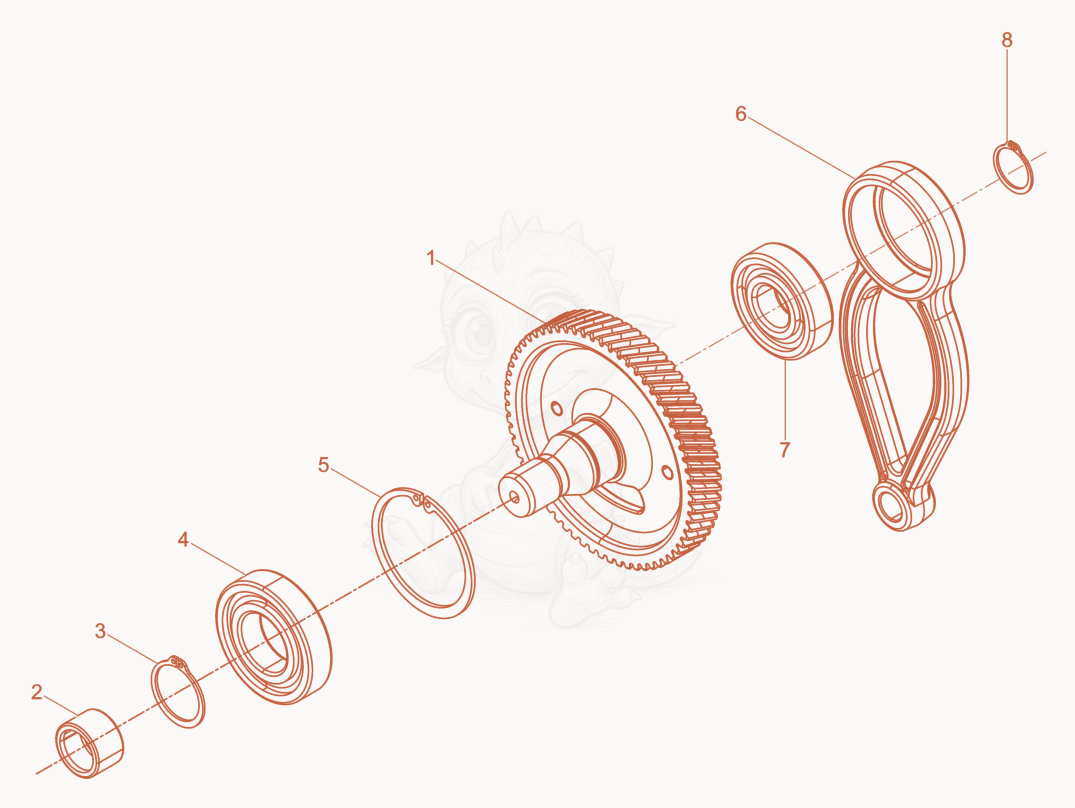

Exploded parts diagram of the Crank Gear cpl. of a Wacker Neuson BS50-4AS11IN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100037296
    $111.93
    Crank gear KR 27,5 - 5100037296×1
  • 25000072061
    $8.01
    BEARING-NEEDLE ROLLER,HK2520 - 5000072061×1
  • 35002003022
    $0.43
    RET.RING-EXT 35MMX1.5MM, - 5002003022×1
  • 45002003021
    $8.36
    BEARING-RADIAL BALL,6207 C4 - 5002003021×1
  • 55002003023
    $1.47
    RET.RING-INT 72MMX2.5MM, - 5002003023×1
  • 65100037875
    $120.45
    Connecting rod - 5100037875×1
  • 75000045190
    $7.28
    BEARING-RADIAL BALL,6305 - 5000045190×1
  • 85002001041
    $0.37
    RET.RING-EXT 25MMX1.2MM, - 5002001041×1
