BS50-4s Vibratory Rammer, 11" Plastic Shoe

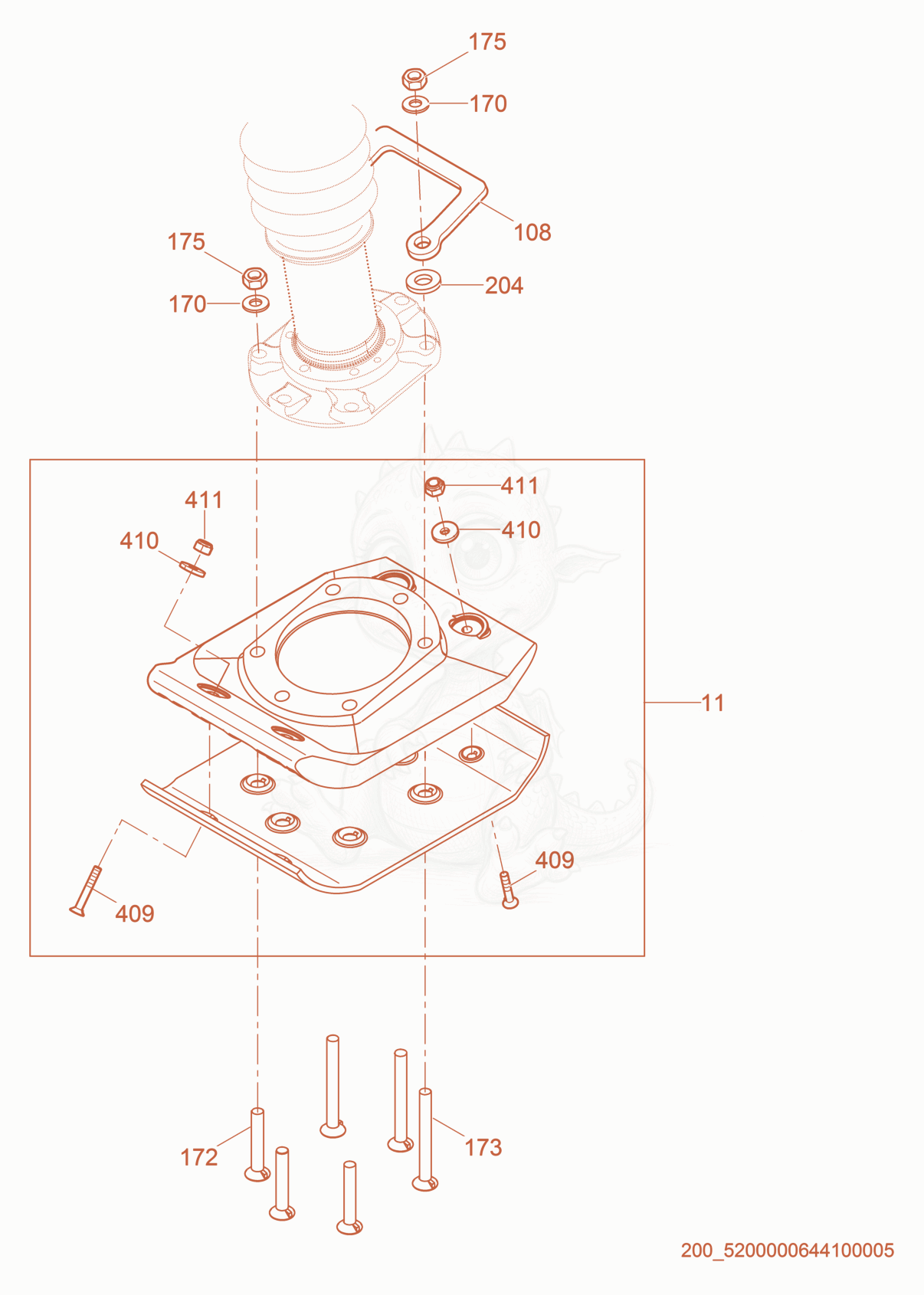

BS50-4S Ramming shoe cpl. Diagram

Exploded parts diagram of the Ramming shoe cpl. of a Wacker Neuson BS50-4S, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115000118105Not stocked
    Ramming Shoe Kit×1
  • 1085000153427
    $19.40
    Handle-lifting --> 5100031620 - 5000153427×1
  • 1705000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×6
  • 1725000011158
    $1.79
    BOLT-PLOW M12X75 DIN 604 - 5000011158×3
  • 1735000012983
    $3.89
    BOLT-PLOW M12X110 DIN 604 - 5000012983×3
  • 1755000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×6
  • 2045000153420
    $0.61
    spacer - 5000153420×2
  • 4095000011191
    $1.70
    BOLT-PLOW M8X55 - 5000011191×6
  • 4105001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×6
  • 4115000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×6
