BS500-4 RAMMER,11 SHOE

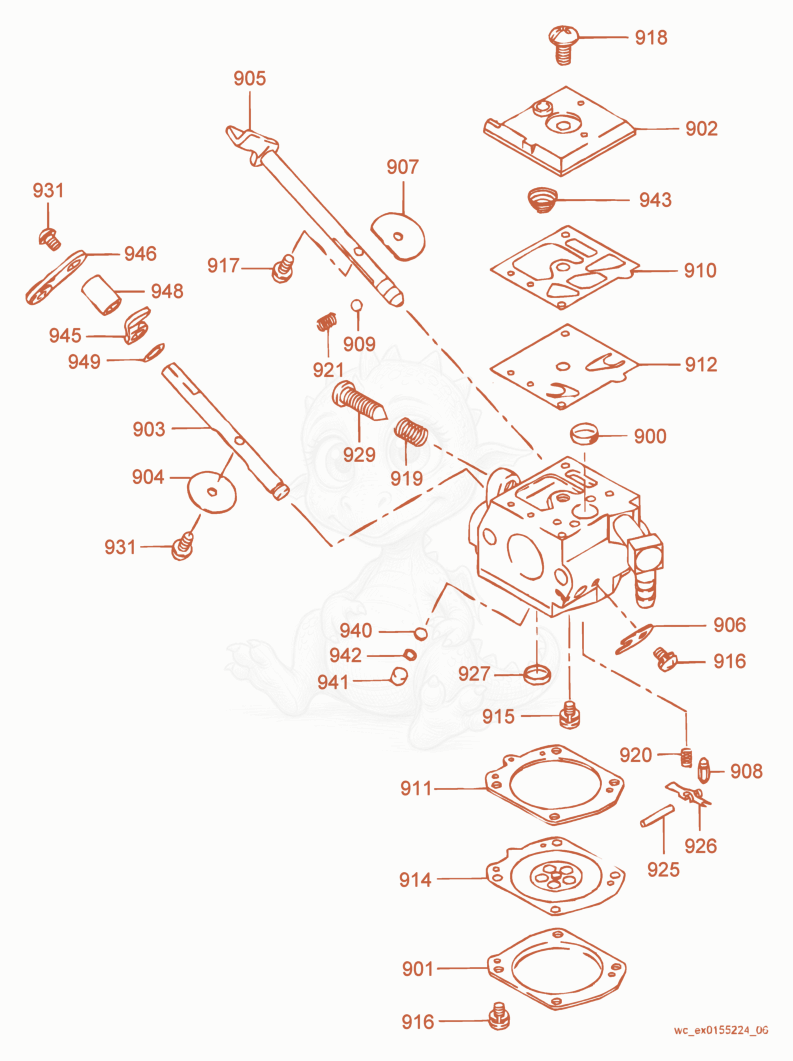

BS500-4 Carburetor cpl. Diagram

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson BS500-4, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

5000158647
$414.22
Carburetor - 5000158647×1
9005000158648
$20.25
SCREEN - 5000158648×1
9015000158649
$18.40
cover - 5000158649×1
9025000158650
$34.22
cover - 5000158650×1
9035000158651
$36.17
Shaft-throttle - 5000158651×1
9045000158652
$4.29
VALVE-THROTTLE - 5000158652×1
9055000158653
$50.95
SHAFT-CHOKE ASSEMBLY - 5000158653×1
9065000158654
$8.97
CLIP - 5000158654×1
9075000158655
$18.88
VALVE-CHOKE - 5000158655×1
9085000158656
$17.13
NEEDLE-FUEL INLET - 5000158656×1
9095000158657
$3.05
ball - 5000158657×1
9105000158658
$8.77
GASKET - 5000158658×1
9115000158659
$7.07
GASKET - 5000158659×1
9125000158660
$14.77
diaphragm - 5000158660×1
9145000159160
$30.58
diaphragm - 5000159160×1
9155000159161
$2.23
screw - 5000159161×1
9165000159162
$1.35
screw - 5000159162×5
9175000159163
$1.43
screw - 5000159163×1
9185000159164
$4.69
screw - 5000159164×1
9195000159165
$3.76
SPRING - 5000159165×1
9205000159166
$9.75
spring - 5000159166×1
9215000159167
$4.58
spring - 5000159167×1
9255000159168
$1.83
pin - 5000159168×1
9265000159169
$7.76
Lever - 5000159169×1
9275000159170
$1.51
PLUG-WELCH - 5000159170×1
9295000159171
$18.54
SCREW-IDLE SPEED - 5000159171×1
9315000159172
$2.70
screw - 5000159172×2
9405000159173
$4.84
SCREEN-INLET - 5000159173×1
9415000159174
$1.56
plug - 5000159174×1
9425000159175
$1.67
ring - 5000159175×1
9435000159176
$9.75
spring - 5000159176×1
9455000159177
$18.78
Throttle stop - 5000159177×1
9465000159178
$24.50
LEVER-THROTTLE - 5000159178×1
9485000159179
$15.16
SPACER - 5000159179×1
9495000159180
$2.39
washer - 5000159180×1
