BS52Y-RAMMER,TILL,10 SHOE

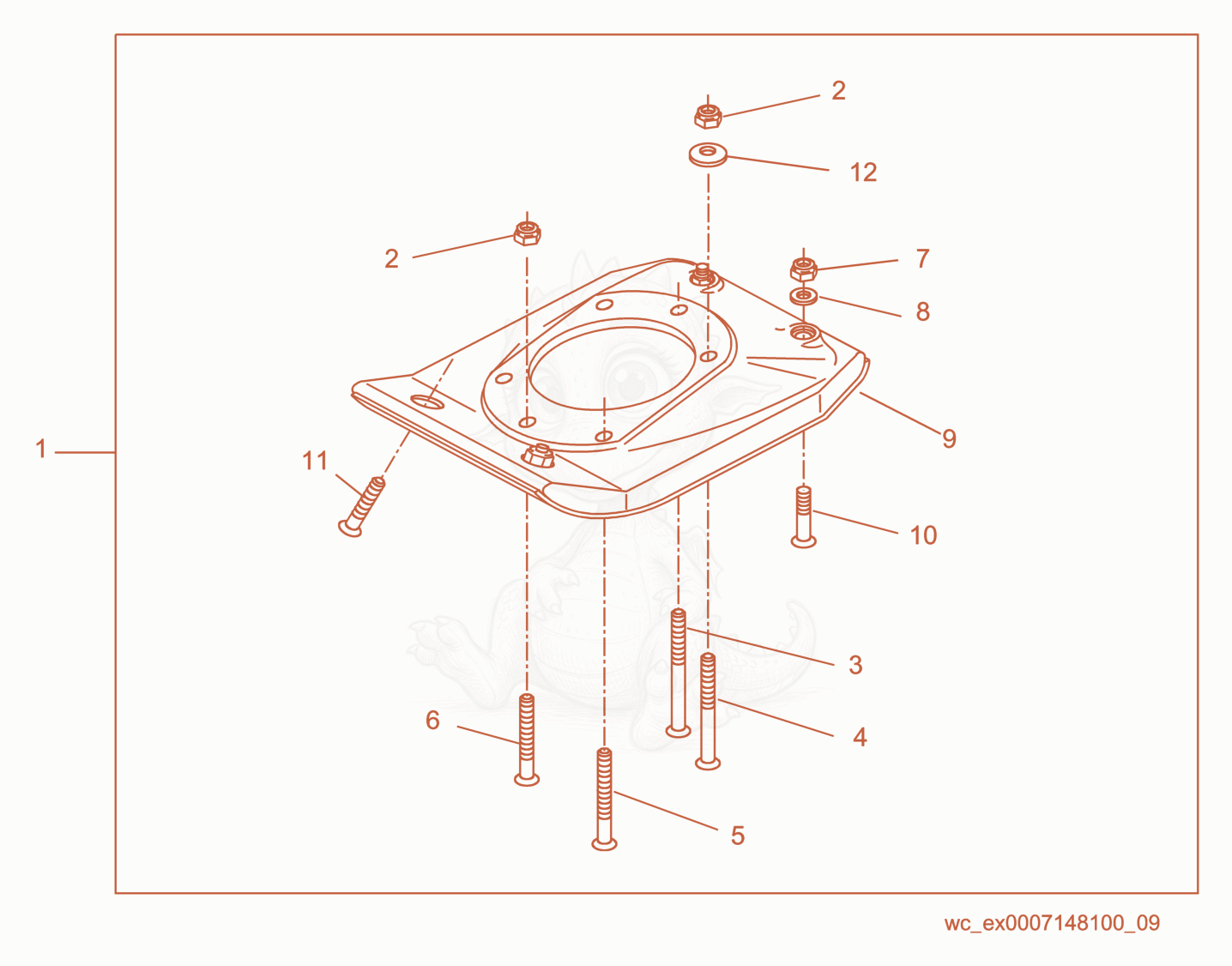

BS52Y Ramming Shoe Kit Diagram

Exploded parts diagram of the Ramming Shoe Kit of a Wacker Neuson BS52Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000072984Not stocked
    Kit-ramming shoe×1
  • 25000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×6
  • 35000011170
    $2.66
    BOLT-PLOW M10X90 DIN 604 - 5000011170×1
  • 45000011171
    $0.87
    BOLT-PLOW M10X85 DIN 604 - 5000011171×2
  • 45000086329
    $3.31
    BOLT-PLOW M10X115 - 5000086329×2
  • 55000011174
    $2.05
    BOLT-PLOW M10X70 DIN 604 - 5000011174×2
  • 65000011175
    $2.20
    BOLT-PLOW M10X65 DIN 604 - 5000011175×1
  • 75000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
  • 85001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×4
  • 95000072985
    $33.09
    PLATE-BOTTOM 8 WIDE,PAINT P-5000112007 - 5000072985×1
  • 105000011192
    $1.39
    BOLT-PLOW M8X50 DIN 604 - 5000011192×2
  • 115000011193
    $1.28
    BOLT-PLOW M8X45 DIN 604 - 5000011193×2
  • 125000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×2
