BS60-2i Vibratory Rammer, 11"

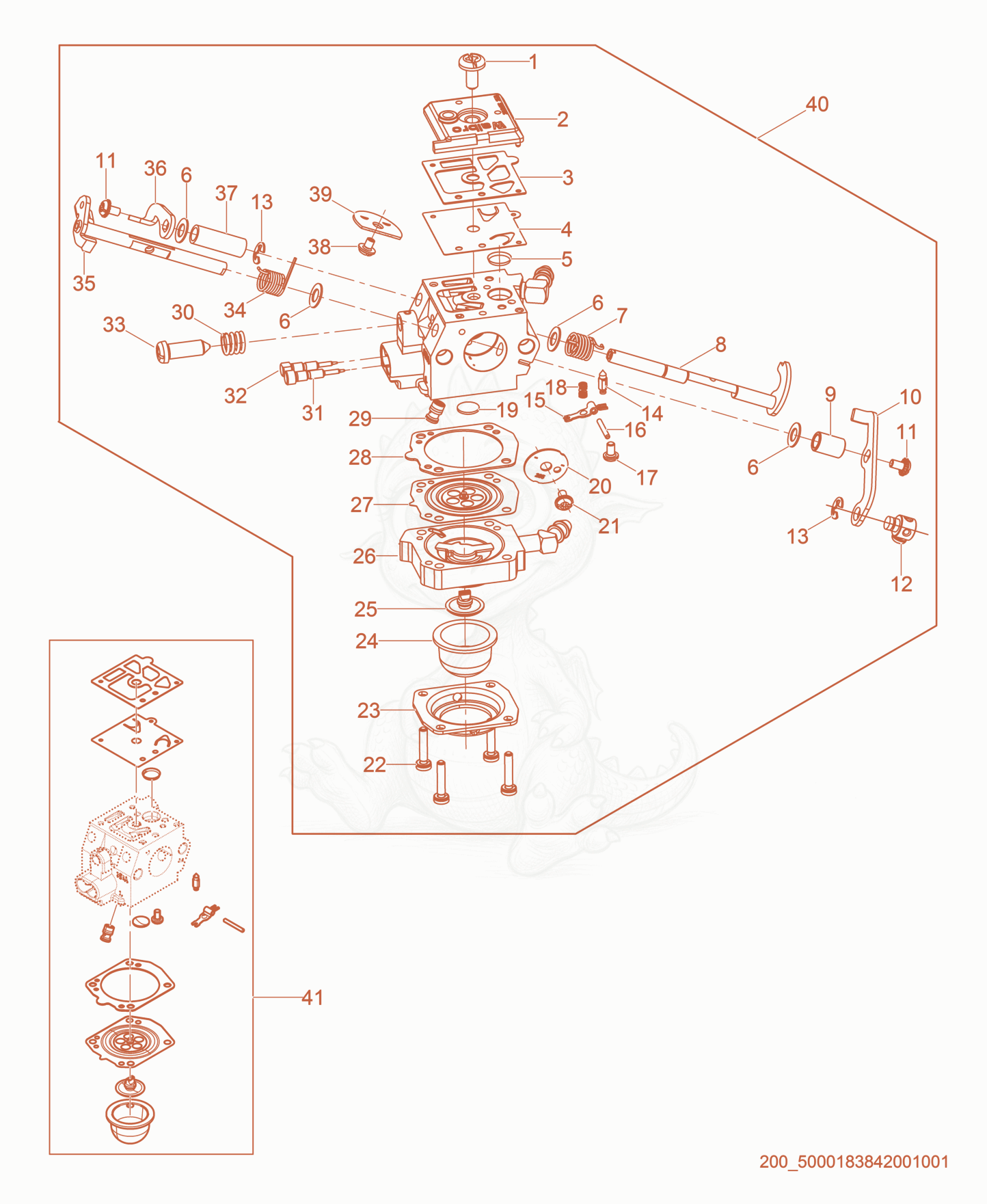

BS60-2I Carburetor cpl. Diagram
- SCREW-PAN HD. - 5000182757×1
- Cover - 5000182758×1
- GASKET - 5000182759×1
- Diaphragm - 5000182760×1
- SCREEN - 5000182761×1
- Washer - 5000175300×4
- Spring - 5000182762×1
- Choke shaft - 5000182763×1
- Spacer - 5000182764×1
- LEVER-THROTTLE - 5000182765×1
- Screw - 5000182766×2
- SWIVEL ASSY - 5000183351×1
- Retaining ring - 5000182768×2
- VALVE-INLET - 5000182769×1
- Lever - 5000182770×1
- Pin - 5000182771×1
- SCREW, SET of 5 - 5000222015×1
- SPRING/METERING LEVER - 5000175306×1
- Plug - 5000182772×1
- VALVE-THROTTLE - 5000183356×1
- SCREW/VALVE - 5000175305×1
- SCREW ASSY - 5000175307×4
- PRIMER PUMP COVER - 5000182773×1
- PRIMER PUMP - 5000182774×1
- VALVE-ONE WAY - 5000180019×1
- HOUSING ASSY-AIR PURGE X-5100036641 - 5000182775×1
- DIAPHRAGM ASSY. - 5000182776×1
- GASKET - 5000182777×1
- NOZZLE - 5000182784×1
- SPRING-IDLE - 5000182778×1
- NEEDLE/IDLE - 5000175319×1
- NEEDLE - 5000182779×1
- SCREW/IDLE ADJUST - 5000175310×1
- SPRING-THROTTLE RETURN - 5000182780×1
- THROTTLE SHAFT ASSY. - 5000182781×1
- LEVER-CHOKE - 5000182782×1
- Sleeve - 5000182783×1
- SCREW/VALVE - 5000175315×1
- VALVE/CHOKE - 5000175316×1
- CARBURETOR-WLBRO HDA292,12.7MM - 5000183842×1
- KIT-REPAIR,WALBRO CARB - 5000171010×1
