Wacker Neuson PartsGENUINE OEM PARTS

BS60-4 RAMMER,11 PL SH.HA,24MM

BS60-4 Governor Diagram

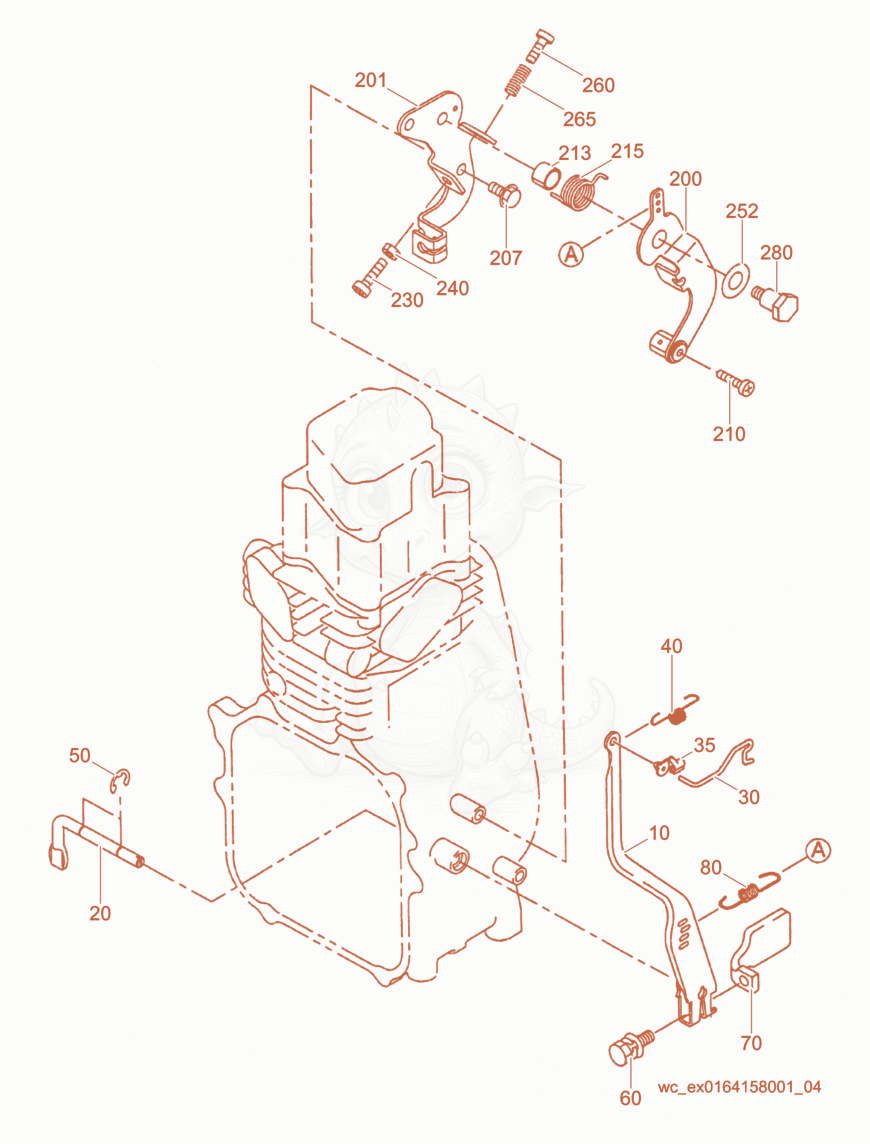

Exploded parts diagram of the Governor of a Wacker Neuson BS60-4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000159181
    $53.66
    LEVER-GOVERNOR - 5000159181×1
  • 205000156103Not stocked
    Governor shaft×1
  • 305000159182
    $3.18
    ROD-GOVERNOR - 5000159182×1
  • 355000159183
    $46.33
    BUSHING - 5000159183×1
  • 405000159184
    $3.99
    spring - 5000159184×1
  • 505000156106
    $0.55
    CLIP - 5000156106×2
  • 605000077397Not stocked
    Screw w/washer×1
  • 705000159185
    $12.33
    WEIGHT - 5000159185×1
  • 805000159186
    $4.71
    SPRING-GOVERNOR P- 5000176420 - 5000159186×1
  • 2005000159187
    $11.40
    MODULE-SPEED CONTROL P- 5000176420 - 5000159187×1
  • 2015000159188
    $12.10
    BASEPLATE - 5000159188×1
  • 2075000030814Not stocked
    Screw×2
  • 2105000159189
    $0.45
    SCREW-PAN HEAD - 5000159189×1
  • 2135000159190
    $0.85
    SPACER - 5000159190×1
  • 2155000208635Not stocked
    Spring-return×1
  • 2305000053649
    $0.45
    SCREW M6 X 30,PAN.HD. - 5000053649×1
  • 2405000053650
    $0.58
    NUT M6,HEX - 5000053650×1
  • 2525000159192
    $0.98
    washer - 5000159192×1
  • 2605000159193
    $1.13
    SCREW-PAN HEAD - 5000159193×1
  • 2655000159194
    $3.76
    spring - 5000159194×1
  • 2805000159195
    $8.13
    screw - 5000159195×1
