BS60-4As 11in

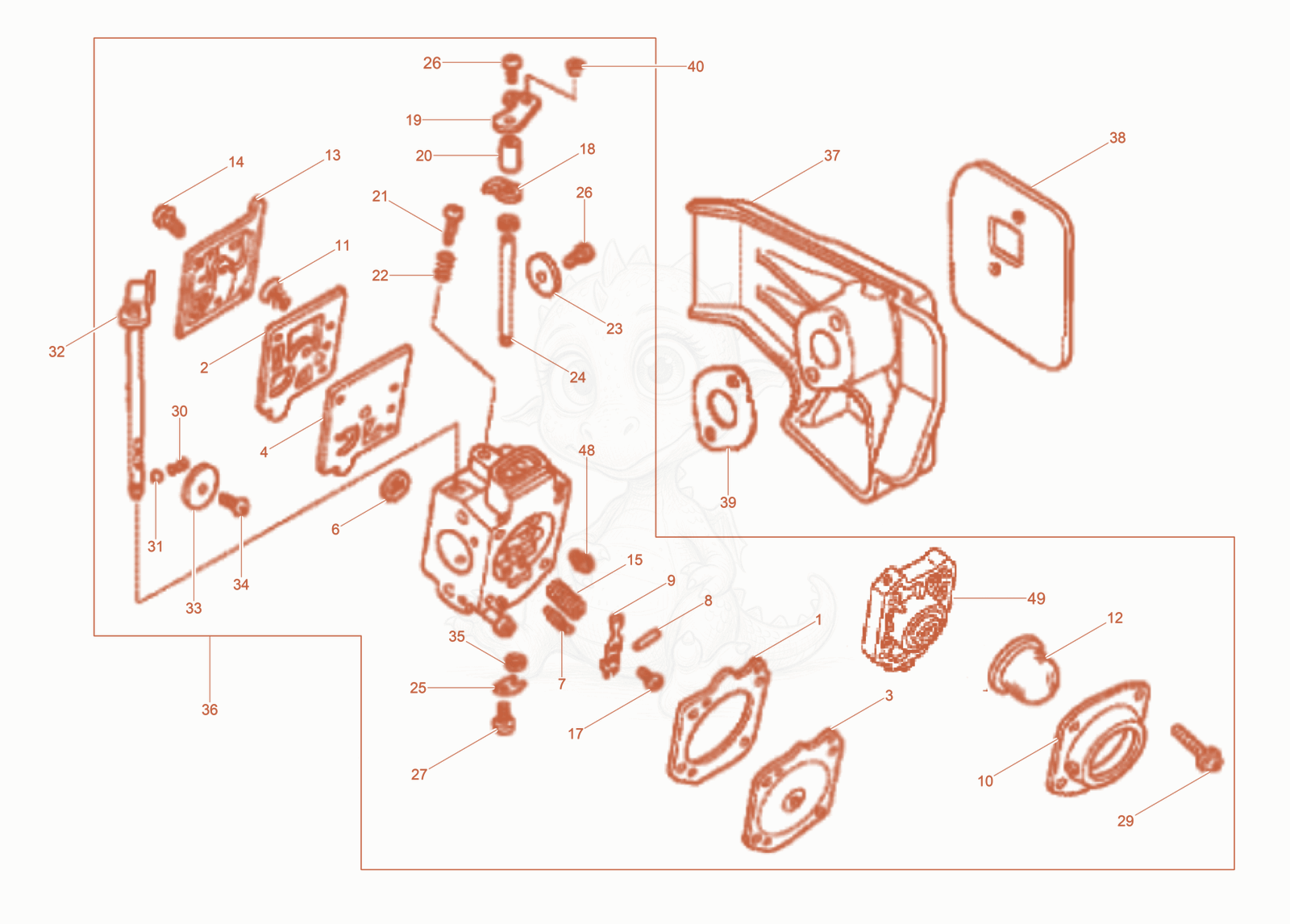

BS60-4AS11IN Carburetor Diagram
- Carburetor seal - 5100049171×1
- Gasket - 5100049172×1
- Diaphragm - 5100049173×1
- Diaphragm - 5100049174×1
- Screen - 5100049175×1
- VALVE-INTAKE NEEDLE - 5000157497×1
- PIN-METERING LEVER - 5000157500×1
- Lever - 5100049176×1
- Covering - 5100049177×1
- SPRING-PUMP - 5000157508×1
- 125100082293Not stockedPump×1
- Cover - 5100049179×1
- Screw - 5100049180×1
- Spring - 5100049181×1
- Screw - 5100049182×1
- Limit stop - 5100031001×1
- Lever - 5100049183×1
- Spacer - 5100049184×1
- Screw - 5100049185×1
- Spring - 5100049186×1
- Starter flap - 5100049187×1
- Shaft - 5100049188×1
- Clamp - 5100049189×1
- Screw - 5100049190×2
- Screw - 5100049191×1
- Screw - 5100049192×4
- Spring - 5100049193×1
- Ball - 5100049194×1
- Shaft - 5100049195×1
- Choke-shutter - 5100049196×1
- Screw - 5100049197×1
- Gasket - 5100049198×2
- 365100082294Not stockedCarburetor×1
- Insulator - 5100049200×1
- Carburetor seal - 5100049201×1
- Carburetor seal - 5100049202×1
- Sleeve - 5100049203×1
- Jet (#46) - 5100049204×1
- Jet (#48) - 5100049205×1
- Jet (#50) - 5100049206×1
- 495200018696Not stockedBody×1
