BS60-4s RMR,11PL SH,YL/GRAY,EU 40

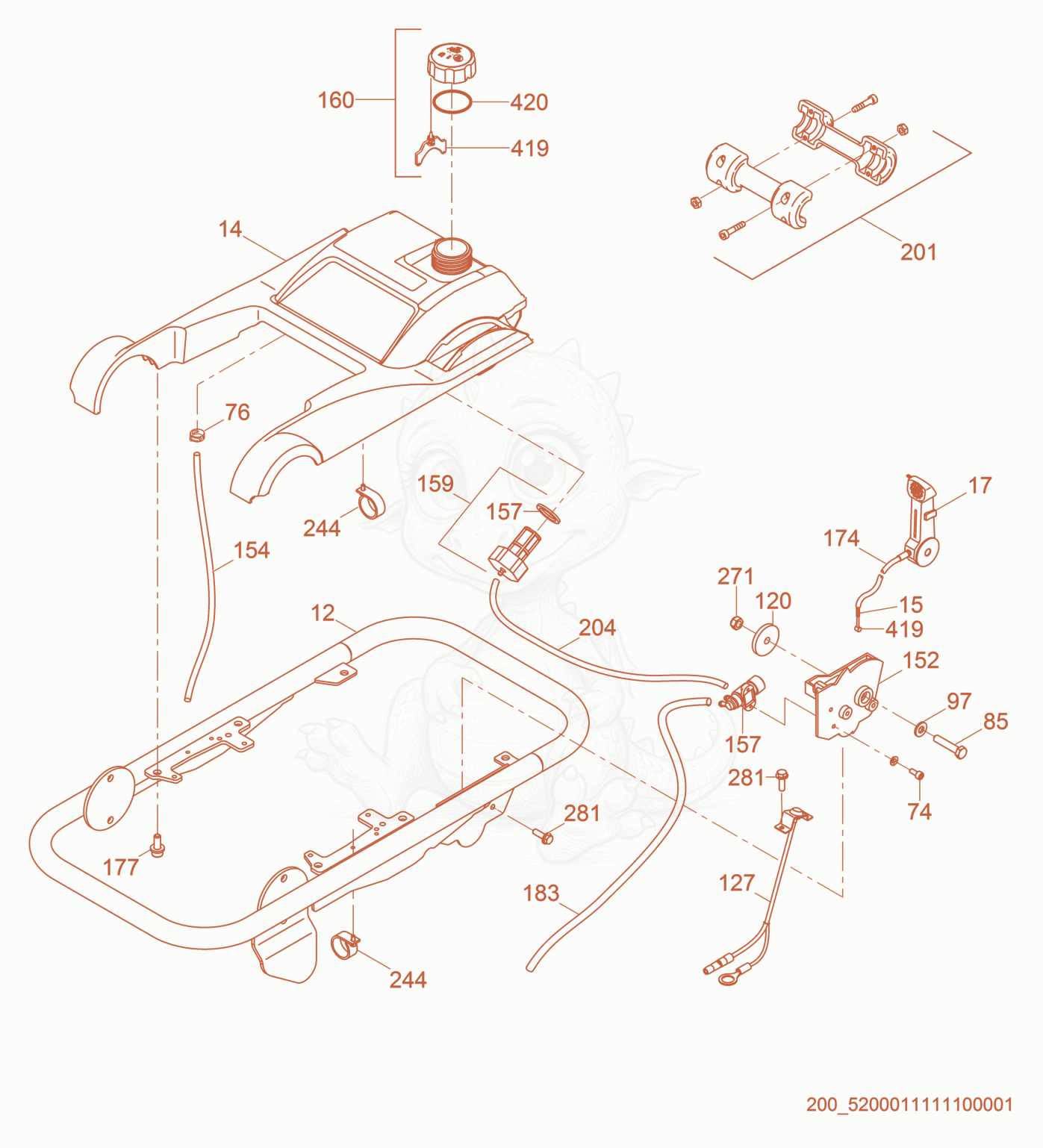

BS60-4S Guide Handle cpl. Diagram

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson BS60-4S, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

125000192879
$131.49
PENDX-5100018519 GUIDE HNDL P-5000112007 - 5000192879×1
145200013206Not stocked
Fuel tank - yellow×1
155000182306
$13.19
CABLE-WIRE,INNER X-5100032227 - 5000182306×1
175000192866
$37.64
CONTROL-THROTTLE X-5100032229 - 5000192866×1
745000011572
$0.26
SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×4
765000171698
$0.57
CLAMP 3/8 DIA.,BLACK - 5000171698×1
855000011539
$0.71
SCREW M8 X 40 SOC.HD. - 5000011539×1
975000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
1205000105194
$1.51
WASHER M8 X 1.5 - 5000105194×1
1275100014071
$87.23
Harness-Switch,4 Stroke - 5100014071×1
1525000192865Not stocked
Throttle control bracket×1
1545200023643Not stocked
Fuel hose×1
1575000086312
$7.36
SEAL-RING - 5000086312×1
1585000193175
$29.83
Valve-fuel X-5100032270 - 5000193175×1
1595000155079
$47.36
KIT-FUEL FILTER W/GASKET - 5000155079×1
1605200014612Not stocked
Fuel tank cap cpl.×1
1765000182305
$12.77
CABLE-CASING,OUTER - 5000182305×1
1795000160861
$0.40
SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×10
1855200016558Not stocked
Fuel Hose w/Filter Set×1
2015000086572
$26.83
Roller Assembly -> 5100032274 - 5000086572×1
2065200000234
$5.31
X-5200023646 HOSE FUEL×1
2465000155562
$5.27
CLIP-WIRE HARNESS,BLACK - 5000155562×2
2735000172305
$0.22
NUT-LOCK M8 HEX,AUTO,CLASS 9 - 5000172305×1
2835000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×4
4195000173019
$5.08
CAP-LANYARD - 5000173019×1
4205000173020
$1.67
Gasket - 5000173020×1
4215002003655
$3.62
LUG-END,THROTTLE CABLE - 5002003655×1
