BS60 -4s,RAMMER YL/RD EU

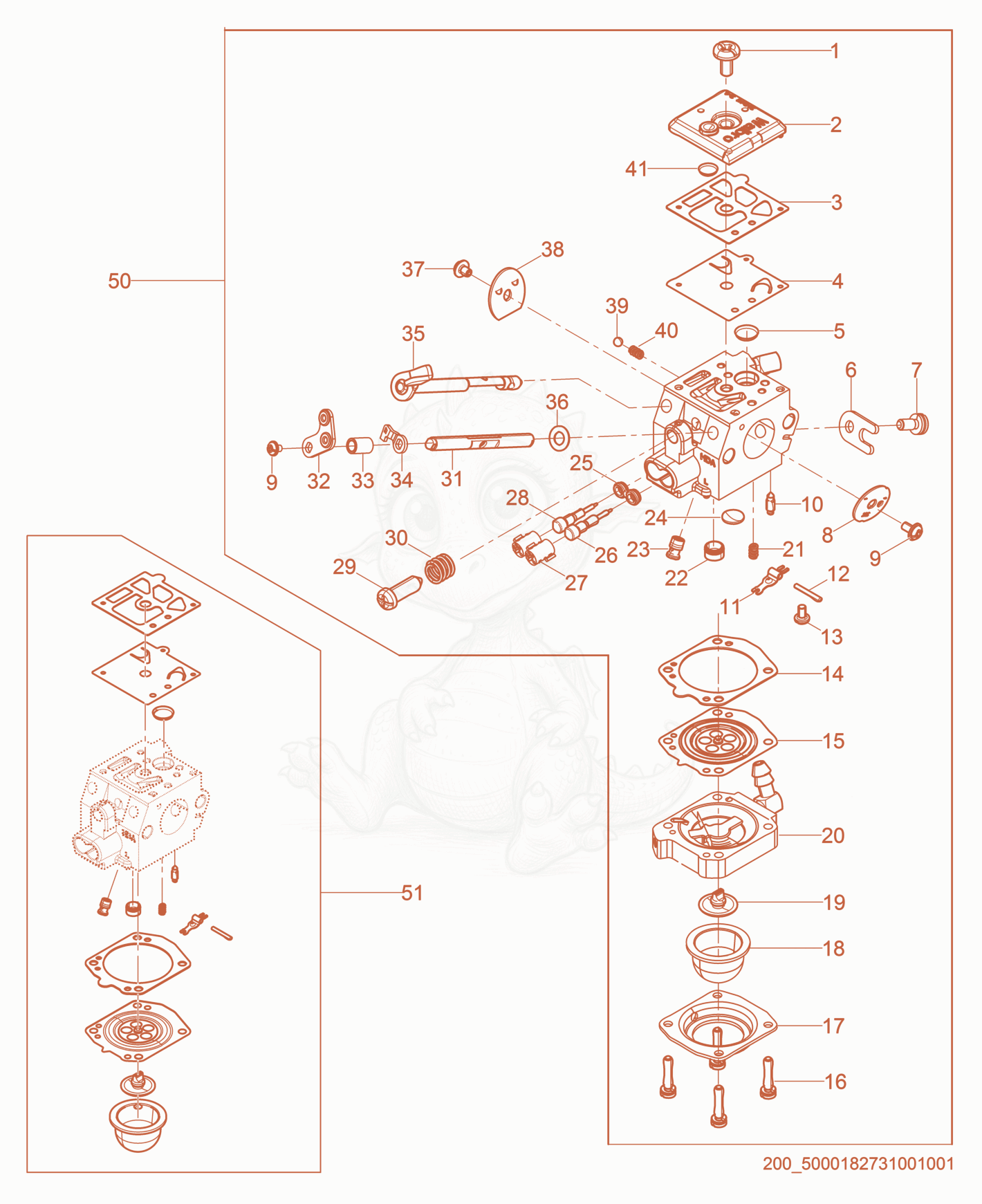

BS60-4SEU Carburetor cpl. Diagram
- SCREW-PAN HD. - 5000182757×1
- COVER-PRIMER PUMP - 5200006936×1
- GASKET - 5000182759×1
- Diaphragm - 5000182760×1
- SCREEN - 5000182761×1
- CLIP-THROTTLE SHAFT - 5200006967×1
- Screw - 5000222009×1
- VALVE-THROTTLE - 5200006941×1
- SCREW/VALVE - 5000175315×2
- VALVE-INLET - 5000182769×1
- LEVER-METERING - 5200006959×1
- Pin - 5000182771×1
- SCREW, SET of 5 - 5000222015×1
- GASKET - 5000182777×1
- DIAPHRAGM ASSY. - 5200006930×1
- SCREW ASSY - 5000175307×4
- PRIMER PUMP COVER - 5000182773×1
- PRIMER PUMP - 5000182774×1
- VALVE-ONE WAY - 5000180019×1
- BODY ASSY-AIR PURGE - 5200006934×1
- SPRING/METERING LEVER - 5000175306×1
- SEAT ASSY-CHECK VALVE - 5200006950×1
- NOZZLE - 5000176061×1
- Plug - 5000182772×1
- NEEDLE-IDLE - 5200006956×1
- CAP-LIMITER - 5200006965×2
- NEEDLE-POWER - 5200006957×1
- SPRING-IDLE - 5000182778×1
- THROTTLE SHAFT ASSY. - 5200006938×1
- LEVER-THROTTLE - 5200006935×1
- Spacer - 5000182764×1
- STOP-THROTTLE - 5200006947×1
- CHOKE SHAFT CPL. - 5200006943×1
- VALVE-CHOKE - 5200006945×1
- BALL-1/8 DIA. - 5000175317×1
- SPRING/CHOKE FRICTION - 5000175318×1
- X-5200014744 CAR CPL. Walbro HDA-286 - 5000182731×1
- KIT-CARBURETOR REPAIR HDA- - 5200007178×1
