BS600-4 RAMMER,11 SHOE

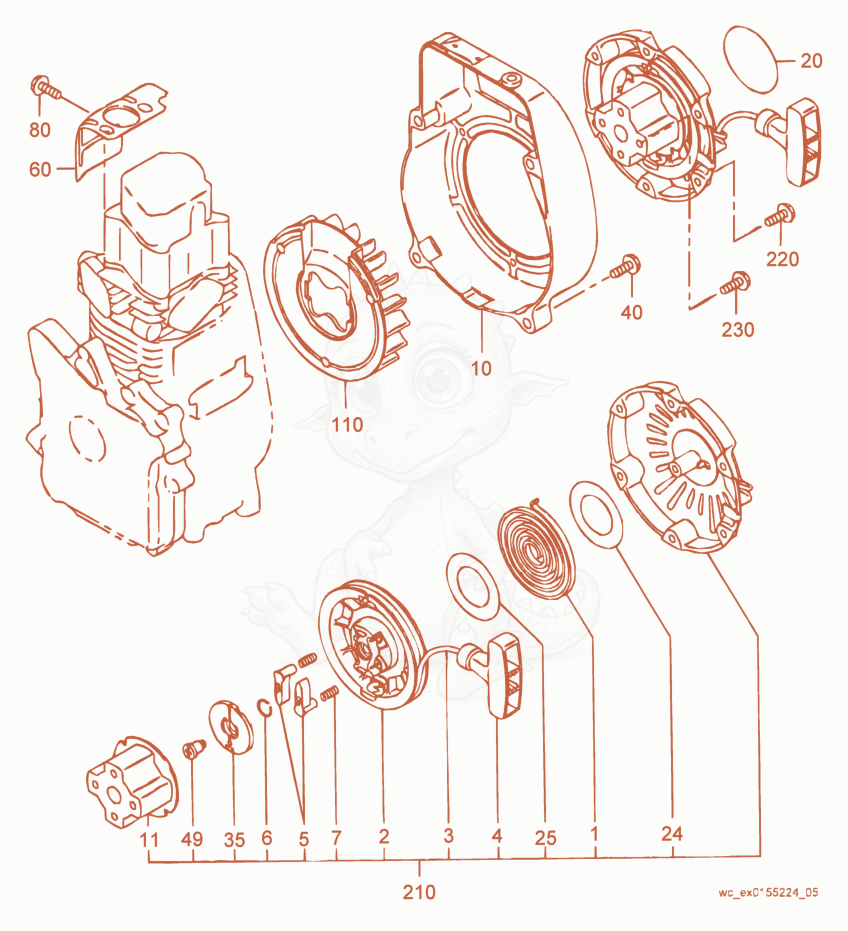

BS600-4 Starter Diagram
- spring - 5000158597×1
- REEL - 5000158598×1
- ROPE - 5000158599×1
- HANDLE-STARTER - 5000117260×1
- RATCHET-PAWL - 5000117261×2
- SPRING-FRICTION - 5000158600×1
- SPRING-RETURN,RECOIL STARTER - 5000083887×2
- HOUSING-BLOWER - 5000158601×1
- PULLEY-STARTER - 5000158602×1
- LABEL - 5000158603×1
- plate - 5000158604×1
- plate - 5000158605×1
- GUIDE-RATCHET - 5000117263×1
- BOLT-FLANGE - 5000156455×4
- SCREW-SET - 5000083891×1
- BAFFLE-CYLINDER - 5000158606×1
- BOLT-FLANGE - 5000156645×1
- FAN-ENGINE - 5000158607×1
- STARTER-RECOIL - 5000158608×1
- BOLT-FLANGE - 5000156645×3
- 2305000053612Not stockedScrew×4
