BT48A

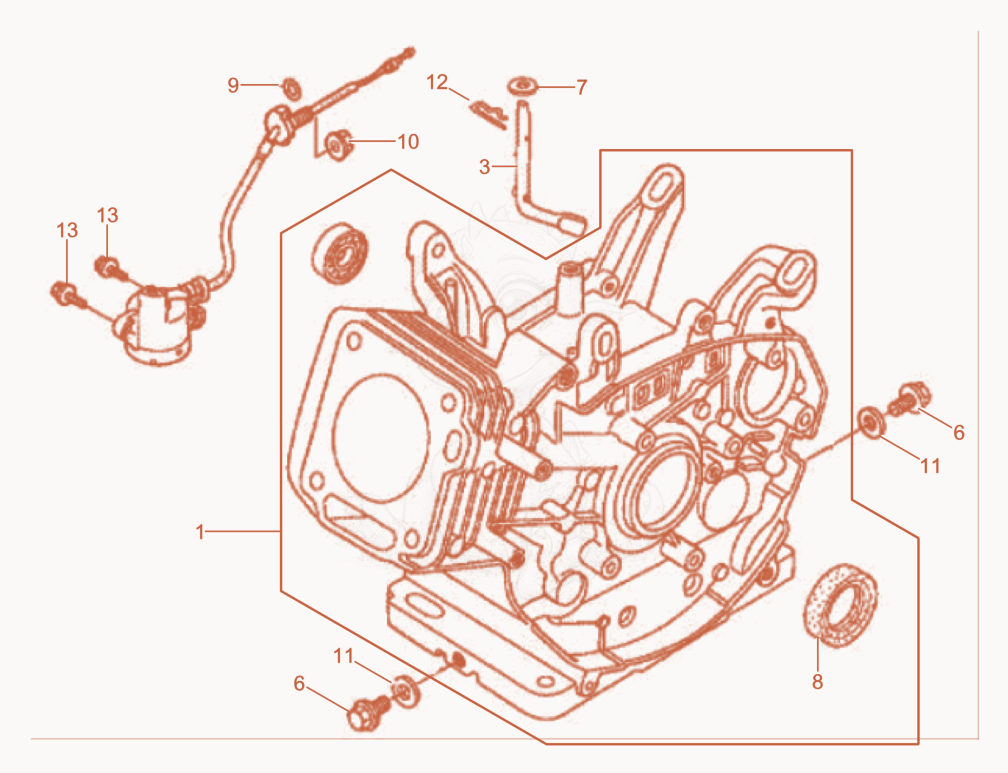

BT48A Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson BT48A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000351
    $1,536.50
    Cylinder housing cpl. - 5100000351×1
  • 35000074641
    $14.98
    Shaft - 5000074641×1
  • 65100038225
    $12.43
    Drain screw - 5100038225×2
  • 75000074656
    $2.66
    Washer - 5000074656×1
  • 85000217495
    $16.17
    SEAL-ROTARY SHAFT 25 X 41 X 6 - 5000217495×1
  • 95100051238
    $10.43
    O-ring - 5100051238×1
  • 105000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 115000053994
    $1.84
    SEAL-RING 12MM - 5000053994×2
  • 125000110110
    $1.84
    PIN-COTTER 10MM - 5000110110×1
  • 135100003498Not stocked
    Flange screw×2
  • 165000217492
    $81.85
    Switch oil safety - 5000217492×1
