CH5000 CROSS HEATER, OIL

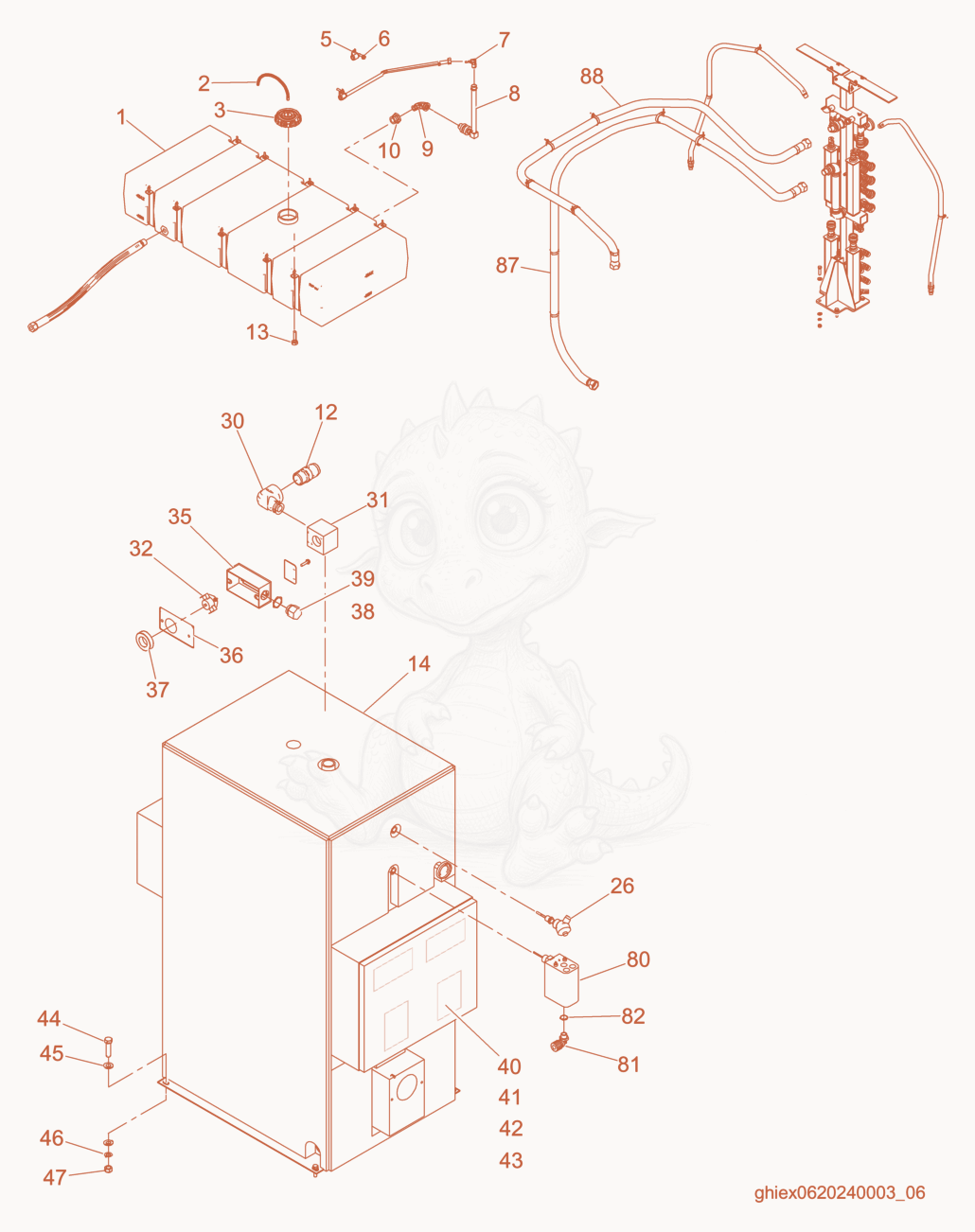

CH5000 Heater/Piping cpl. Diagram

Exploded parts diagram of the Heater/Piping cpl. of a Wacker Neuson CH5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000166958Not stocked
    Expansion tank×1
  • 25200019248Not stocked
    Tubing×1
  • 35000171332Not stocked
    Cap×1
  • 55000168316Not stocked
    Clamp×2
  • 65000167793Not stocked
    Screw×2
  • 75000168367Not stocked
    Hose barb×1
  • 85000171330Not stocked
    Sight gauge×1
  • 95000171331Not stocked
    Elbow fitting×1
  • 105000168036Not stocked
    Bushing×1
  • 125000168393Not stocked
    Adapter×1
  • 135000167721Not stocked
    Bolt×10
  • 145000168816Not stocked
    Boiler×1
  • 265000166712Not stocked
    Thermocouple×1
  • 305000168029Not stocked
    Elbow×1
  • 315000166926Not stocked
    Snap disc block×1
  • 325000166613Not stocked
    Limit control×1
  • 355000166931Not stocked
    Enclosure×1
  • 365000166930Not stocked
    Cover plate×1
  • 375000168477Not stocked
    Grommet×1
  • 385000166458Not stocked
    Cord grip×1
  • 395000166459Not stocked
    Lock nut×1
  • 415000173216Not stocked
    Label×1
  • 425000172632Not stocked
    Label×1
  • 435000172626Not stocked
    Label-gas burner×1
  • 445000167750Not stocked
    Bolt×8
  • 455000167730Not stocked
    Flat washer×16
  • 465000167735Not stocked
    Lock washer×8
  • 475000167691Not stocked
    Nut×8
  • 805000171353Not stocked
    Low Level Cut-off Kit×1
  • 815000166713Not stocked
    Cord grip×1
  • 825000166459Not stocked
    Lock nut×1
  • 875000171374Not stocked
    Hose cpl.×1
  • 885000171373Not stocked
    Hose cpl.×1
