CH5000 CROSS HEATER, OIL

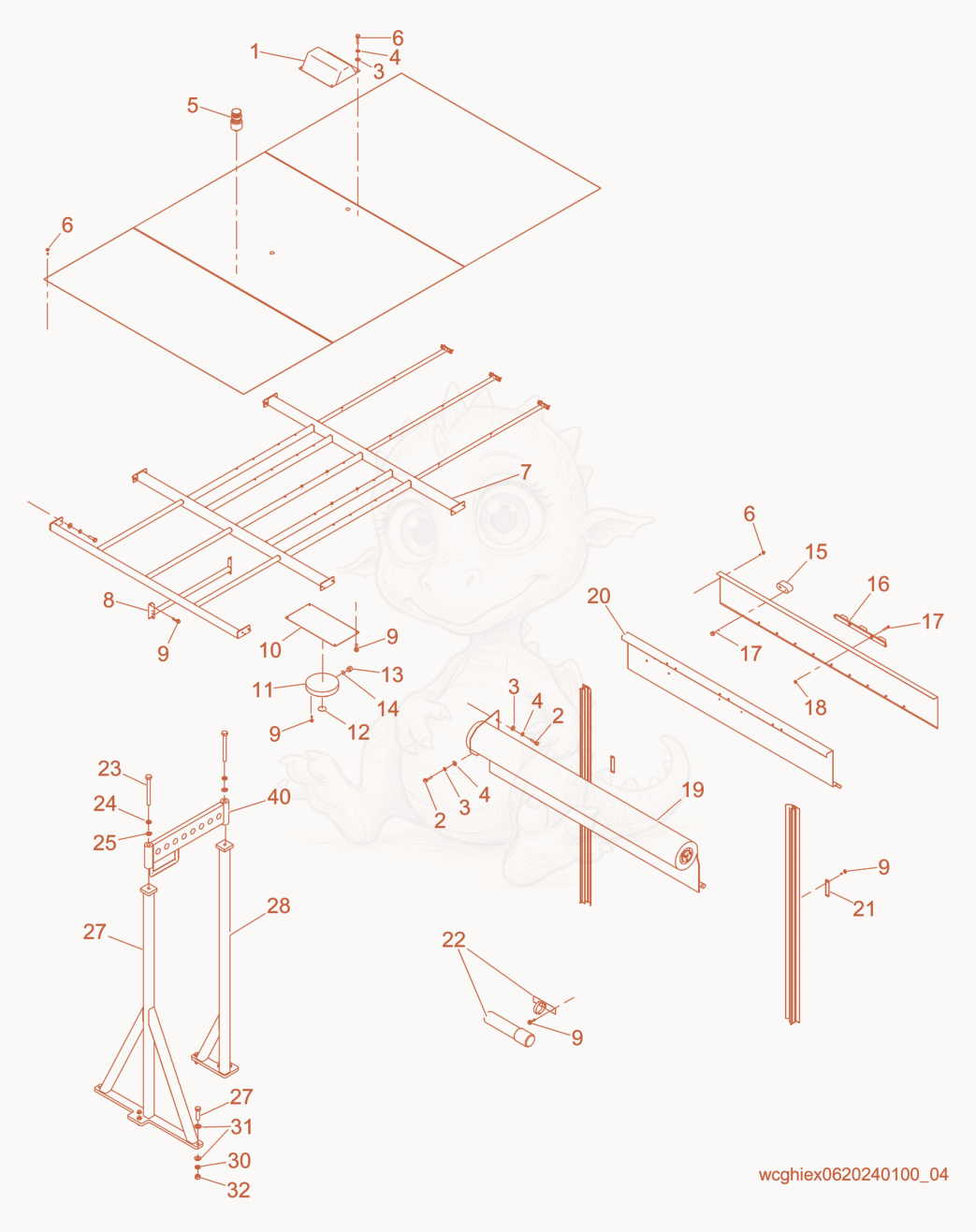

CH5000 Upper Enclosure cpl. Diagram

Exploded parts diagram of the Upper Enclosure cpl. of a Wacker Neuson CH5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000171334Not stocked
    Cover×1
  • 25000167721Not stocked
    Bolt×32
  • 35000167729Not stocked
    Flat washer×32
  • 45000167733Not stocked
    Lock washer×32
  • 55000166635Not stocked
    Light×1
  • 65000167722Not stocked
    Screw w/washer×75
  • 75000172475Not stocked
    Frame×1
  • 85000172485Not stocked
    Side rail×1
  • 95000167793Not stocked
    Screw×8
  • 105000166433Not stocked
    Light×1
  • 115000166517Not stocked
    Cab dome light×1
  • 125000166518Not stocked
    Light bulb×1
  • 135000166458Not stocked
    Cord grip×1
  • 145000166459Not stocked
    Lock nut×1
  • 155000166505Not stocked
    Light×1
  • 165000166433Not stocked
    Light×1
  • 175000167821Not stocked
    Screw×4
  • 185000167814Not stocked
    Nut×2
  • 195000168817Not stocked
    Door×1
  • 205000172477Not stocked
    Rear door×1
  • 215000168259Not stocked
    Reflector×2
  • 225000168721Not stocked
    Manual holder×1
  • 235000171333Not stocked
    Hexagonal head cap screw×2
  • 245000167756Not stocked
    Washer-lock×2
  • 255000167755Not stocked
    Washer-flat×2
  • 265000172479Not stocked
    Lifting brace×1
  • 275000172478Not stocked
    Stand×1
  • 285000172484Not stocked
    Stand×1
  • 295000167701Not stocked
    Bolt×7
  • 305000167728Not stocked
    Flat washer×14
  • 315000167734Not stocked
    Lock washer×7
  • 325000167689Not stocked
    Nut×7
