CRT36-23K-H RIDE-ON TROWEL

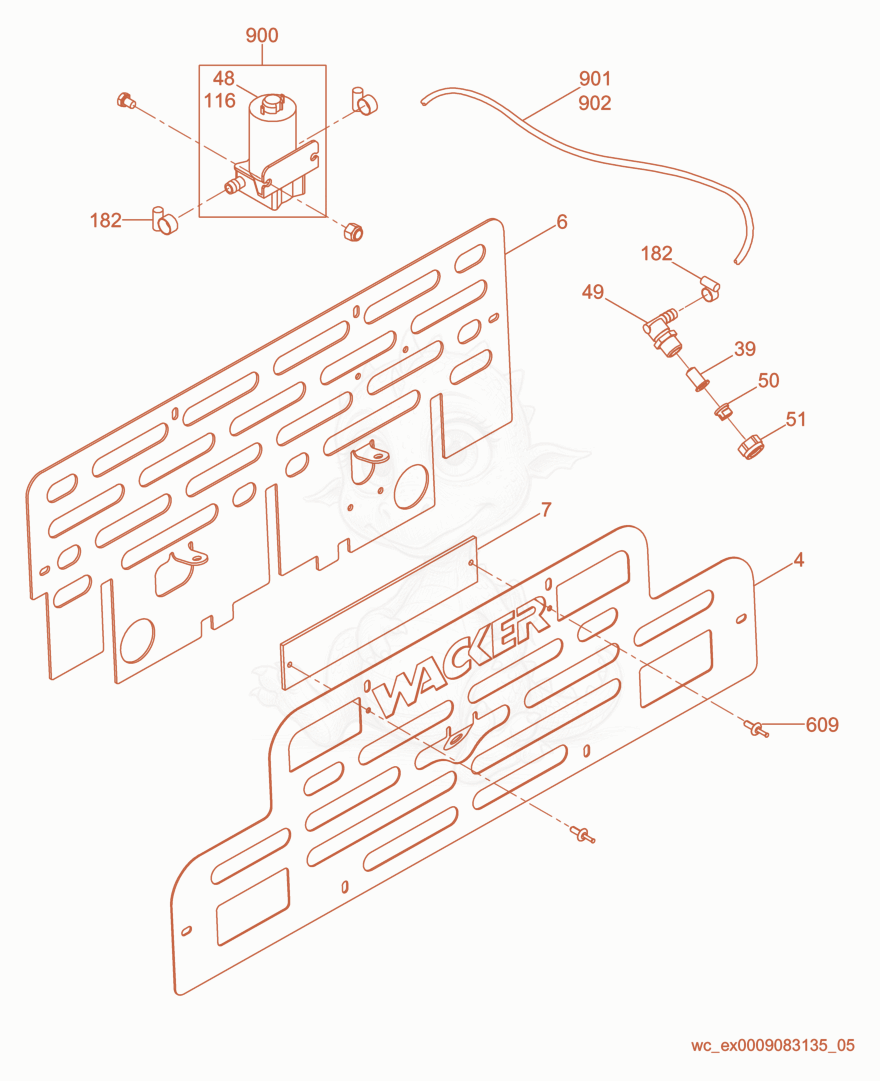

CRT36-23K-H Water System Kit Diagram

Exploded parts diagram of the Water System Kit of a Wacker Neuson CRT36-23K-H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000119054
    $84.83
    PLATE-FRONT GRILLE - 5000119054×1
  • 65000119055
    $97.60
    PLATE-ENGINE GRILLE - 5000119055×1
  • 75000154490
    $8.21
    PLATE-BACKING - 5000154490×1
  • 395000151125
    $38.13
    VALVE-CHECK/STRAINER - 5000151125×1
  • 485000117130Not stocked
    Water pump×1
  • 495000117131
    $53.25
    ELBOW-JET - 5000117131×1
  • 505000117132
    $17.37
    JET-SPRAY - 5000117132×1
  • 515000117133
    $44.97
    FITTING-JET - 5000117133×1
  • 1825000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 6095000152696
    $0.23
    RIVET-NYLON DRIVE - 5000152696×2
  • 6155000150009
    $0.37
    TERMINAL-RCPT 16-14AWG,INS - 5000150009×1
  • 9005000153267
    $104.23
    KIT-WATER PUMP - 5000153267×1
  • 9015000155195
    $4.65
    HOSE-WATER 3/8 DIA.,23.00 - 5000155195×1
  • 9025000155177
    $5.66
    WIRE-LOOM,LCP625,15.00 - 5000155177×1
