CRT36-24A RD-ON TRWL W/ WHL EU

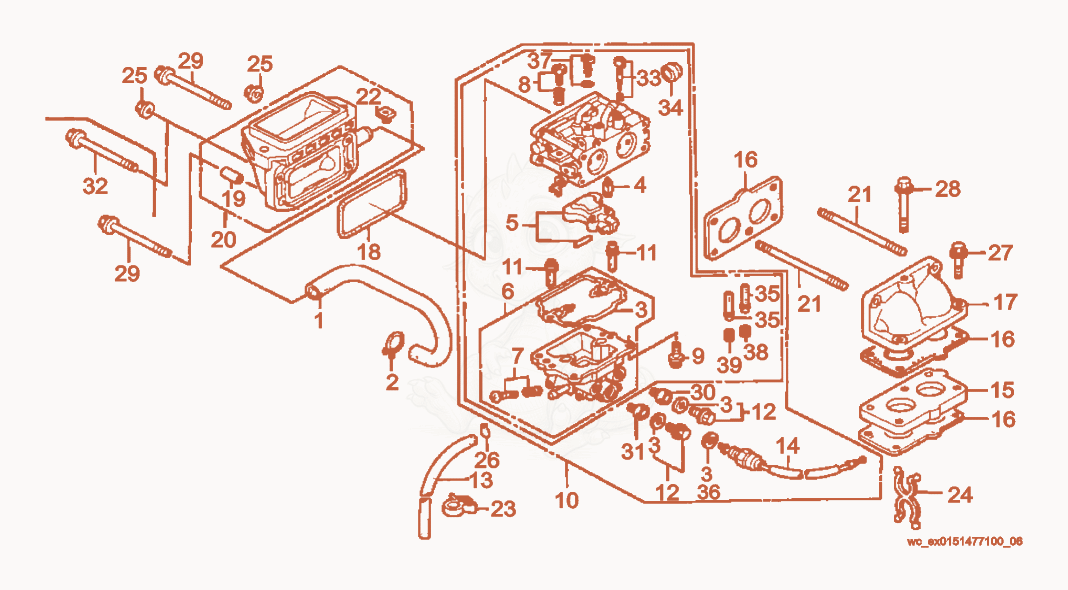

CRT36-24A Carburetor cpl. Diagram
- TUBE-BREATHER - 5000152345×1
- CLIP-BREATHER TUBE - 5000151782×1
- SET-GASKETS - 5000160563×1
- SET-FLOAT VALVE - 5000160564×1
- FLOAT ASSEMBLY - 5000160565×1
- HOUSING-FLOAT CHAMBER - 5000160566×1
- SCREW SET-DRAIN - 5000151786×1
- SET-SCREW - 5000160568×1
- X-5000150271 SCREW-PAN HD. - 5000160726×4
- CARBURETOR ASSEMBLY - 5000160569×1
- JET-LOW SPEED - 5000160570×2
- SET-PLUG - 5000160573×2
- TUBE-DRAIN - 5000152358×1
- VALVE ASSEMBLY - 5000160574×1
- Insulator - 5000160575×1
- GASKET - 5000160576×3
- Elbow - 5000160709×1
- GASKET-AIR CLEANER - 5000160711×1
- SEAL-A,AIR CLEANER - 5000152472×4
- Elbow - 5000160713×1
- BOLT-STUD (6X85) - 5000160724×2
- NUT-INSERT 6MM - 5000152417×2
- CLIP-CABLE,B - 5000151800×1
- CLIP-LOCK - 5000152392×1
- NUT M6,HEX,FLANGE - 5000071056×2
- CLAMP B8,HOSE CLIP - 5000054136×1
- BOLT-FLANGE 6X30 - 5000160729×2
- BOLT-FLANGE 6X65 - 5000160730×1
- BOLT-FLANGE 6X90 - 5000160731×2
- JET-MAIN #102 - 5000160733×1
- JET-MAIN - 5000160732×1
- BOLT-FLANGE 6X90 - 5000160731×2
- Screw - 5000160567×1
- CAP-CHOKE LEVER DUST - 5000151790×1
- JET-NOZZLE,MAIN - 5000160571×2
- Washer - 5000160572×1
- SET-JET, PILOT #40 - 5000084654×1
- JET-MAIN,#100 - 5000115955×1
- JET-MAIN,#100 - 5000115955×1
