CRT36-25

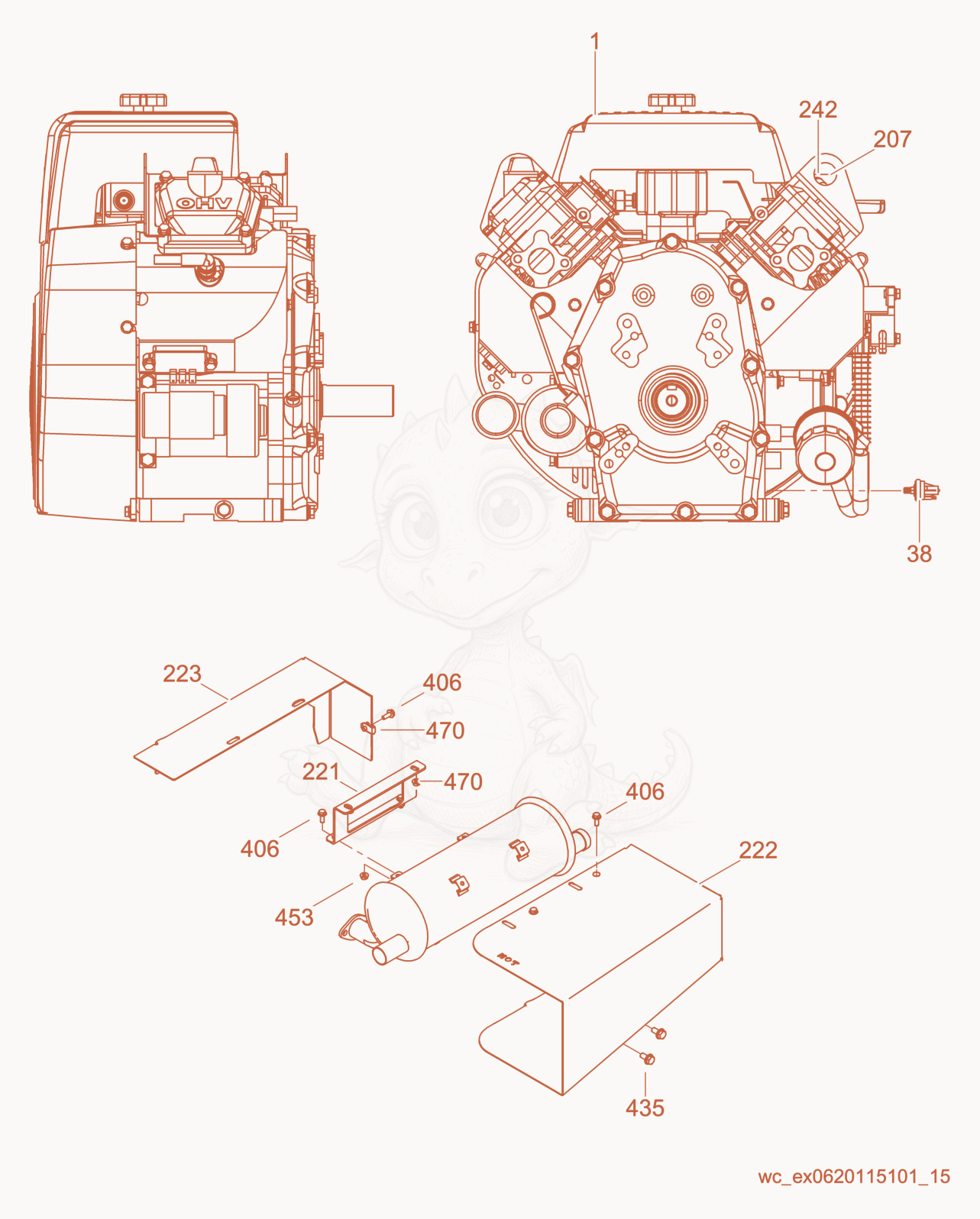

CRT36-25 Engine Compartment Diagram

Exploded parts diagram of the Engine Compartment of a Wacker Neuson CRT36-25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000165074
    $2,898.89
    ENGINE-WM720,25HP,CRT - 5000165074×1
  • 385000171013
    $67.76
    SWITCH-PRESSURE - 5000171013×1
  • 2075000165510
    $15.81
    CABLE-THROTTLE - 5000165510×1
  • 2215000170972
    $366.21
    BRACKET-HEATSHIELD - 5000170972×1
  • 2225000165587
    $59.40
    HEATSHIELD,ROBIN 25 - 5000165587×1
  • 2235000170970
    $63.36
    HEATSHIELD-CRT36,WM72 - 5000170970×1
  • 2425000171447
    $12.35
    CABLE-CHOKE - 5000171447×1
  • 4065000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×5
  • 4355000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
  • 4535000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 4705000150959
    $0.52
    NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×3
