CRT36-26A

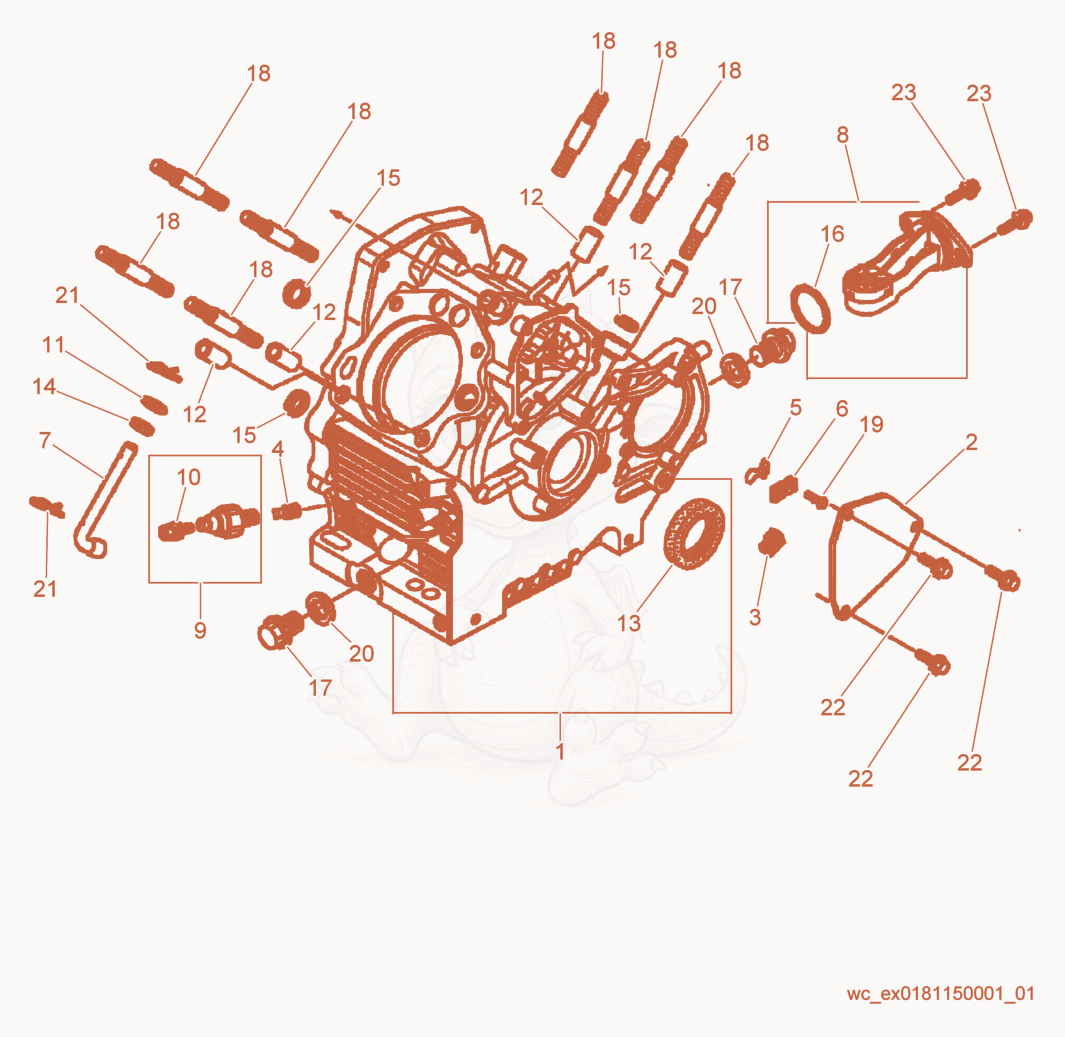

CRT36-26A Crankcase Diagram
- Crankcase cpl. - 5000226406×1
- COVER-BREATHER - 5000226415×1
- FILTER-BREATHER - 5000226416×1
- Valve - 5000162139×1
- PLATE-STOP - 5000226442×1
- SHAFT-GOVERNOR - 5000226468×1
- SWITCH-OIL PRESSURE - 5000226515×1
- SCREW W/ WASHER 4X8 - 5000226527×1
- WASHER-PLAIN - 5000226536×1
- PIN-DOWEL - 5000226542×4
- SEAL-OIL 38X58X9 - 5000226545×1
- SEAL-OIL 10X16X5 - 5000226546×1
- GASKET-OIL PASSAGE - 5000226550×3
- PLUG-DRAIN 20 - 5000226552×2
- BOLT-STUD 10X40 - 5000226553×8
- SCREW-PAN 3X8 - 5000226554×1
- WASHER 20 - 5000226557×2
- PIN-COTTER 10MM - 5000110110×2
- BOLT-FLANGE (6X14) - 5000151935×3
