CRT48-31V RIDE-ON TROWEL

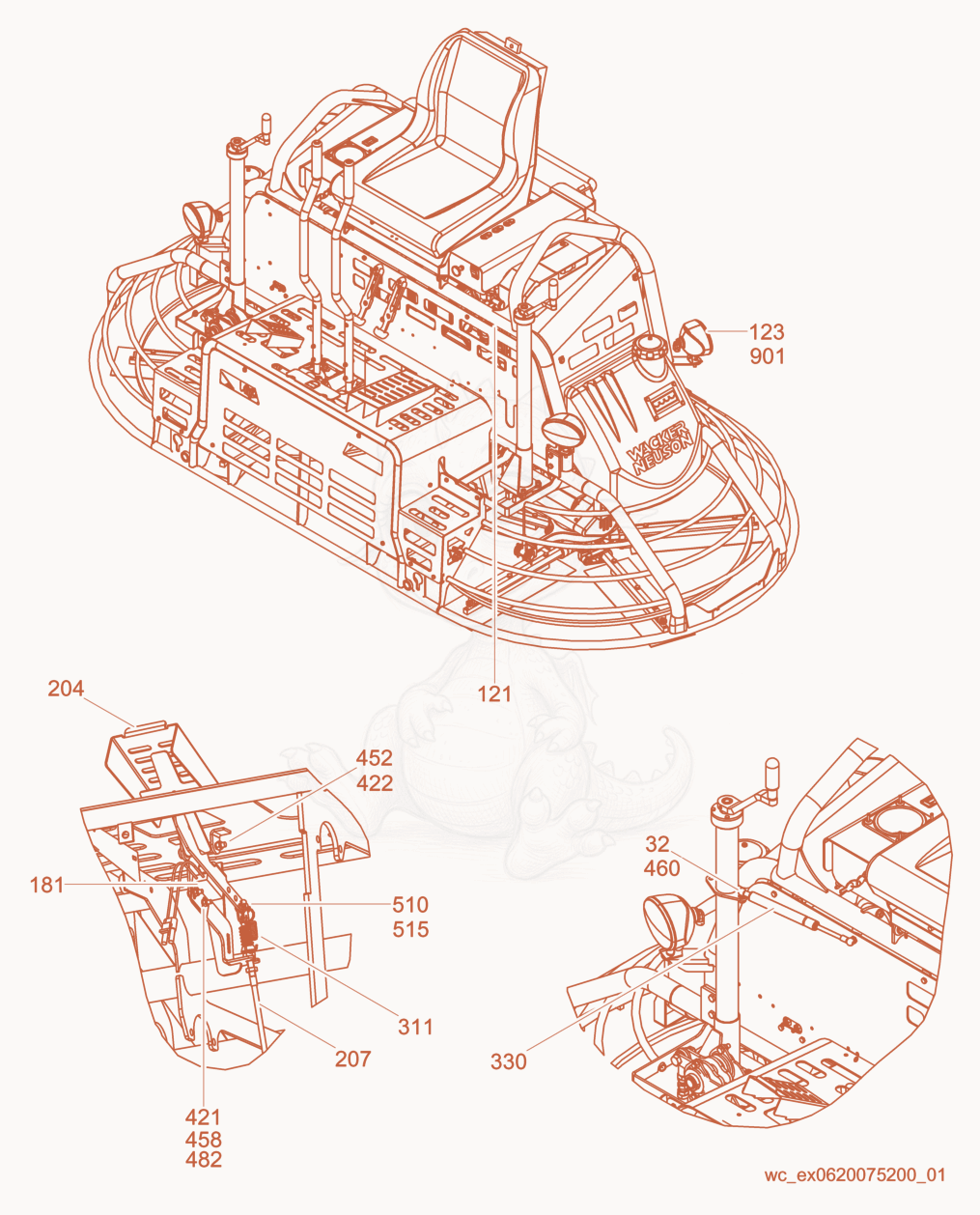

CRT48-31V Machine cpl./Front View Diagram

Exploded parts diagram of the Machine cpl./Front View of a Wacker Neuson CRT48-31V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 325000155125
    $1.16
    STUD-BALL 10 x M8 - 5000155125×4
  • 1215000164110
    $999.87
    WIRE HARNESS,CRT48-34V - 5000164110×1
  • 1235000165595
    $36.61
    LIGHT-WORK - 5000165595×4
  • 1815000117384
    $146.99
    SWITCH-THROTTLE SENSE - 5000117384×1
  • 2045000165241
    $180.92
    LEVER-PEDAL ASSEMBLY P-5000176420 - 5000165241×1
  • 2075000171448
    $45.07
    X-5200009200 CABLE-THROTTLE CRT'S - 5000171448×1
  • 3115000165320
    $7.08
    SPRING-EXTENSION - 5000165320×1
  • 3305000176051
    $28.29
    CYLINDER-GAS SPRING - 5000176051×2
  • 4215000011476
    $0.09
    SCREW M5 X 16 HX.HD. - 5000011476×2
  • 4225000165319
    $1.90
    SCREW M6 X 50 SOC HD - 5000165319×1
  • 4525000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 4585000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 4605000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 4825000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×2
  • 5105000116784
    $0.23
    PIN-CLEVIS 1/4 X 1/2 - 5000116784×1
  • 5155000075161
    $0.20
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
  • 9015000178852
    $23.41
    LIGHT-WORK BULB - 5000178852×4
