CRT48-33K Trowel, Dual-Fuel

CRT48-33KDF LP Components Diagram

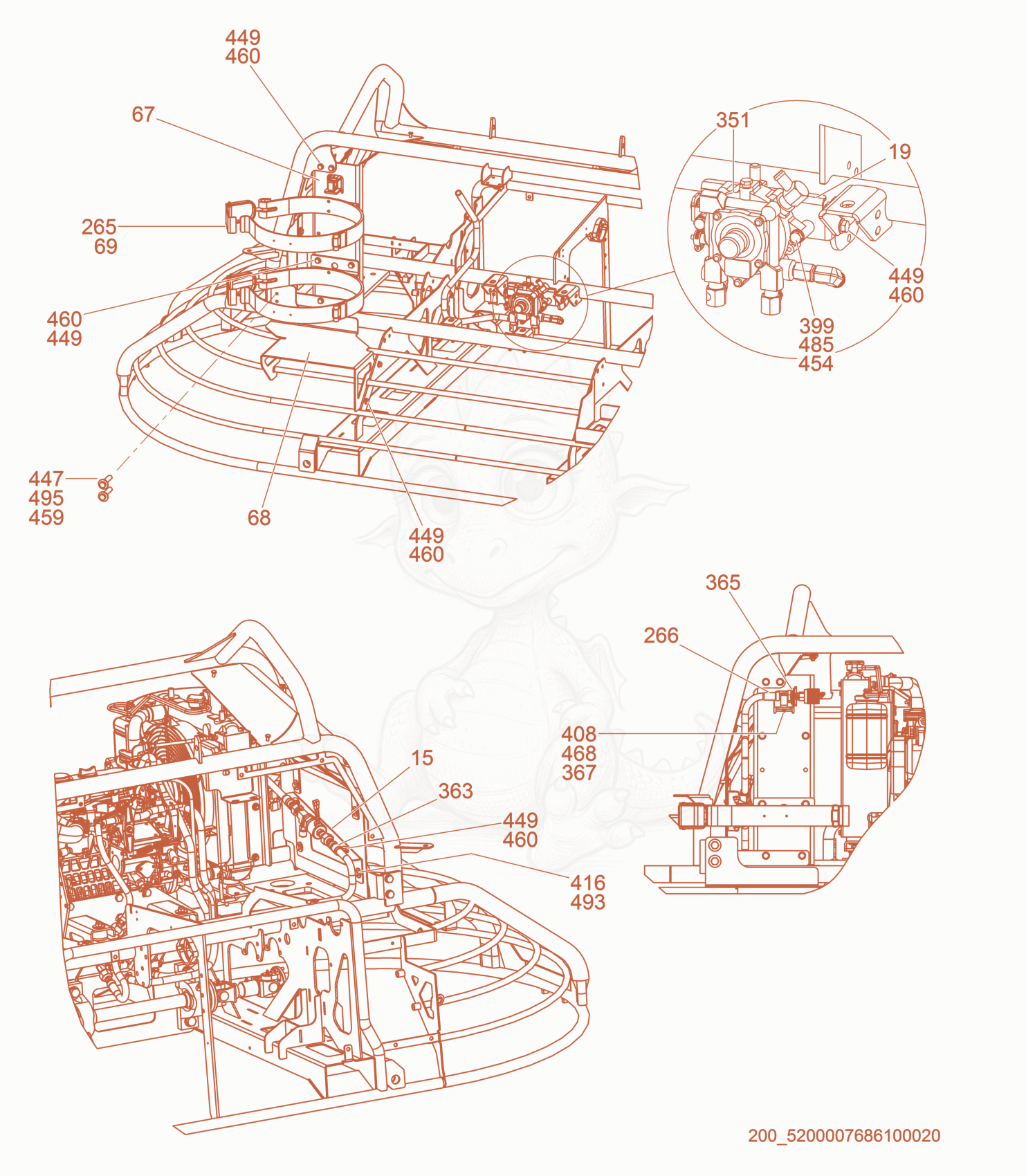

Exploded parts diagram of the LP Components of a Wacker Neuson CRT48-33KDF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 155200008233
    $16.47
    Bracket-LP Lockout Soleniod P-5000176420 - 5200008233×1
  • 195200002918
    $12.80
    BRACKET-VAPORIZER P-5000176420 - 5200002918×1
  • 675200008231
    $53.21
    Plate-LP Tank Mount P-5000176420 - 5200008231×1
  • 685200008232
    $69.26
    Plate-LP Tank Base P-5000176420 - 5200008232×1
  • 695200008235
    $213.15
    Mount-LP Tank - 5200008235×1
  • 2655000173813
    $0.55
    CABLE-TIE,#28-120-UV-50 - 5000173813×2
  • 2665000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×1
  • 3515200008331
    $2,097.34
    Housing - Vaporizer Assembly - 5200008331×1
  • 3635000164304
    $0.58
    CLAMP-TUBE .750 - 5000164304×2
  • 3655000180084
    $0.96
    CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×1
  • 3675000153747
    $4.20
    CLIP-SPRING HOLDER - 5000153747×1
  • 3995000011343
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011343×2
  • 4085000153421
    $0.07
    SCREW M4 X 14 HEX.HD. - 5000153421×1
  • 4165000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×2
  • 4475000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×2
  • 4495000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×11
  • 4545000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 4595000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 4605000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×11
  • 4685000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×1
  • 4855000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 4935000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×2
  • 4955000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
