CRT48-35V, Power Steer

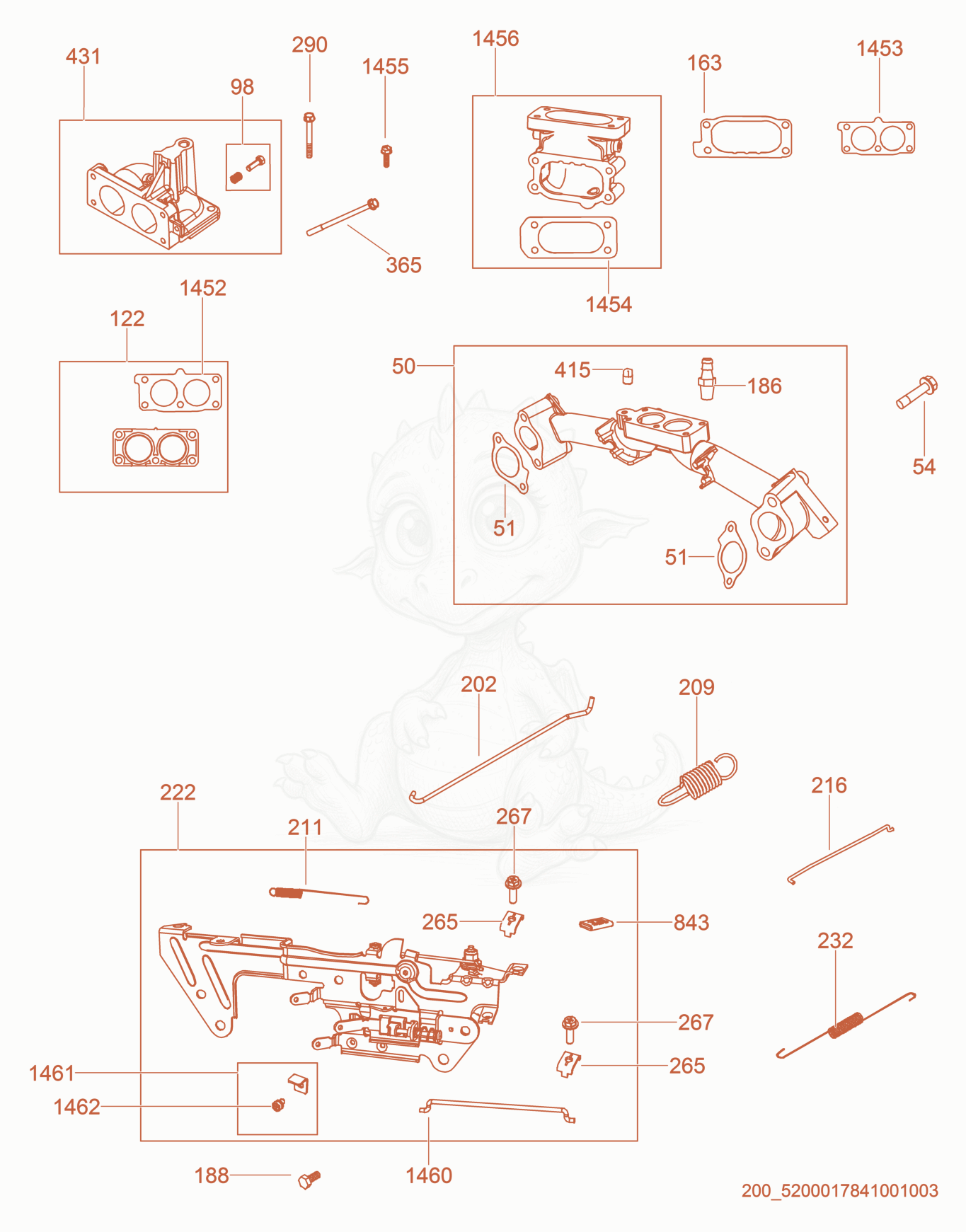

CRT48-35V-PS Manifold/Governor Diagram
- MANIFOLD-INTAKE - 5200002589×1
- GASKET-INTAKE - 5000216124×2
- SCREW - 5200002600×5
- KIT-IDLE SPEED - 5000216136×1
- SPACER-CARBURETOR - 5200002604×1
- GASKET-AIR CLEANER - 5000216035×1
- CONNECTOR - 5000052462×1
- screw - 5000118487×1
- LINK-MECHANICAL GOVERNOR - 5000216109×1
- SPRING-GOVERNOR - 5000216181×1
- SPRING-GOVERNED IDLE - 5000216016×1
- LINK-CHOKE - 5200002610×1
- BRACKET-CONTROL - 5000216111×1
- SPRING-GOVERNOR LINK - 5000020540×1
- Clamp - 5000030958×2
- SCREW - 5200002613×2
- Screw - 5000216087×3
- Screw - 5000216141×2
- Plug-oil fill - 5200001349×1
- ELBOW-INTAKE - 5000216119×1
- LEVER-SLEEVE - 5200002628×1
- GASKET-INTAKE - 5000216086×1
- GASKET-INTAKE - 5000216143×1
- GASKET-AIR CLEANER - 5000216171×2
- Screw - 5000216040×1
- LINK-CHOKE - 5200002611×1
- CLAMP - 5200002612×1
- SCREW - 5200002614×1
