CRT48-35V, Power Steer

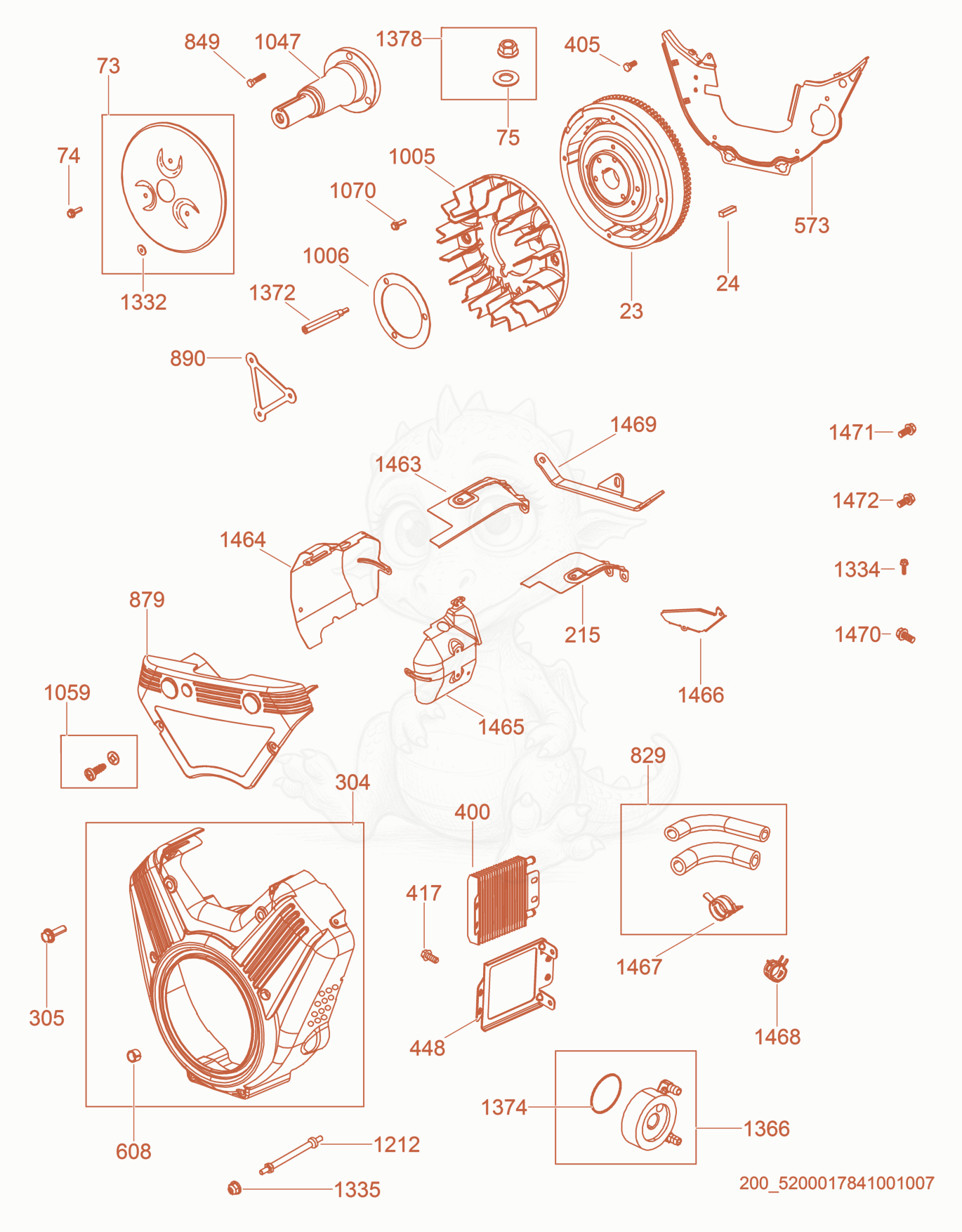

CRT48-35V-PS Flywheel/Blower Housing Diagram

Exploded parts diagram of the Flywheel/Blower Housing of a Wacker Neuson CRT48-35V-PS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235200020446Not stocked
    Flywheel×1
  • 245200002585
    $10.65
    KEY-FLYWHEEL MOUNT,STEEL - 5200002585×1
  • 735200020451Not stocked
    Screen×1
  • 745000216089
    $3.95
    Screw - 5000216089×3
  • 755000216161
    $7.15
    Washer - 5000216161×2
  • 2155000216061
    $56.53
    GUIDE-AIR - 5000216061×1
  • 3045200020455Not stocked
    Housing×1
  • 3055000216041
    $5.56
    Screw - 5000216041×1
  • 4005000216113
    $293.80
    Oil cooler - 5000216113×1
  • 4055000208216
    $5.56
    Screw - 5000208216×1
  • 4175000208216
    $5.56
    Screw - 5000208216×4
  • 4485000216115
    $74.12
    BRACKET-OIL COOLER - 5000216115×1
  • 5735200002621
    $143.06
    PLATE-BACK - 5200002621×1
  • 8295000216114
    $103.35
    HOSE-OIL - 5000216114×1
  • 8495200020467Not stocked
    Screw×3
  • 8795000216092
    $72.37
    COVER-CARBURETOR - 5000216092×1
  • 8905000216099
    $36.28
    BRACKET-SUPPORT - 5000216099×1
  • 10055000216091
    $37.24
    FAN-FLYWHEEL - 5000216091×1
  • 10065000216100
    $15.49
    FAN RETAINER - 5000216100×1
  • 10475200020472Not stocked
    Stub shaft×1
  • 10595200002630
    $8.64
    SCREW W/WASHER - 5200002630×2
  • 10705000216041
    $5.56
    Screw - 5000216041×2
  • 12125000216095
    $27.61
    STUD - 5000216095×2
  • 13325000216090
    $7.22
    Washer - 5000216090×3
  • 13345000216041
    $5.56
    Screw - 5000216041×1
  • 13355000209185
    $5.16
    NUT (REWIND STARTER) - 5000209185×2
  • 13665000216117
    $148.04
    OIL COOLER DIVERTER - 5000216117×1
  • 13725000216088
    $22.80
    STUD - 5000216088×3
  • 13745000216116
    $10.37
    SEAL-O RING - 5000216116×1
  • 13785200020473Not stocked
    Washer w/nut×2
  • 14635000216067
    $49.07
    GUIDE-AIR - 5000216067×1
  • 14645000216082
    $59.32
    GUIDE-AIR - 5000216082×1
  • 14655000216068
    $59.32
    GUIDE-AIR - 5000216068×1
  • 14665000216069
    $52.82
    GUIDE-AIR - 5000216069×1
  • 14675200002623
    $6.51
    CLAMP-HOSE - 5200002623×1
  • 14685200020465Not stocked
    Hose clamp×1
  • 14695000216129
    $59.47
    BRACKET-SUPPORT - 5000216129×1
  • 14705000208216
    $5.56
    Screw - 5000208216×1
  • 14715000160165
    $5.56
    Screw - 5000160165×1
  • 14725000118430
    $6.40
    Screw - 5000118430×1
