CRT48-35V, Power Steer

CRT48-35V-PS Carburetor cpl. Diagram

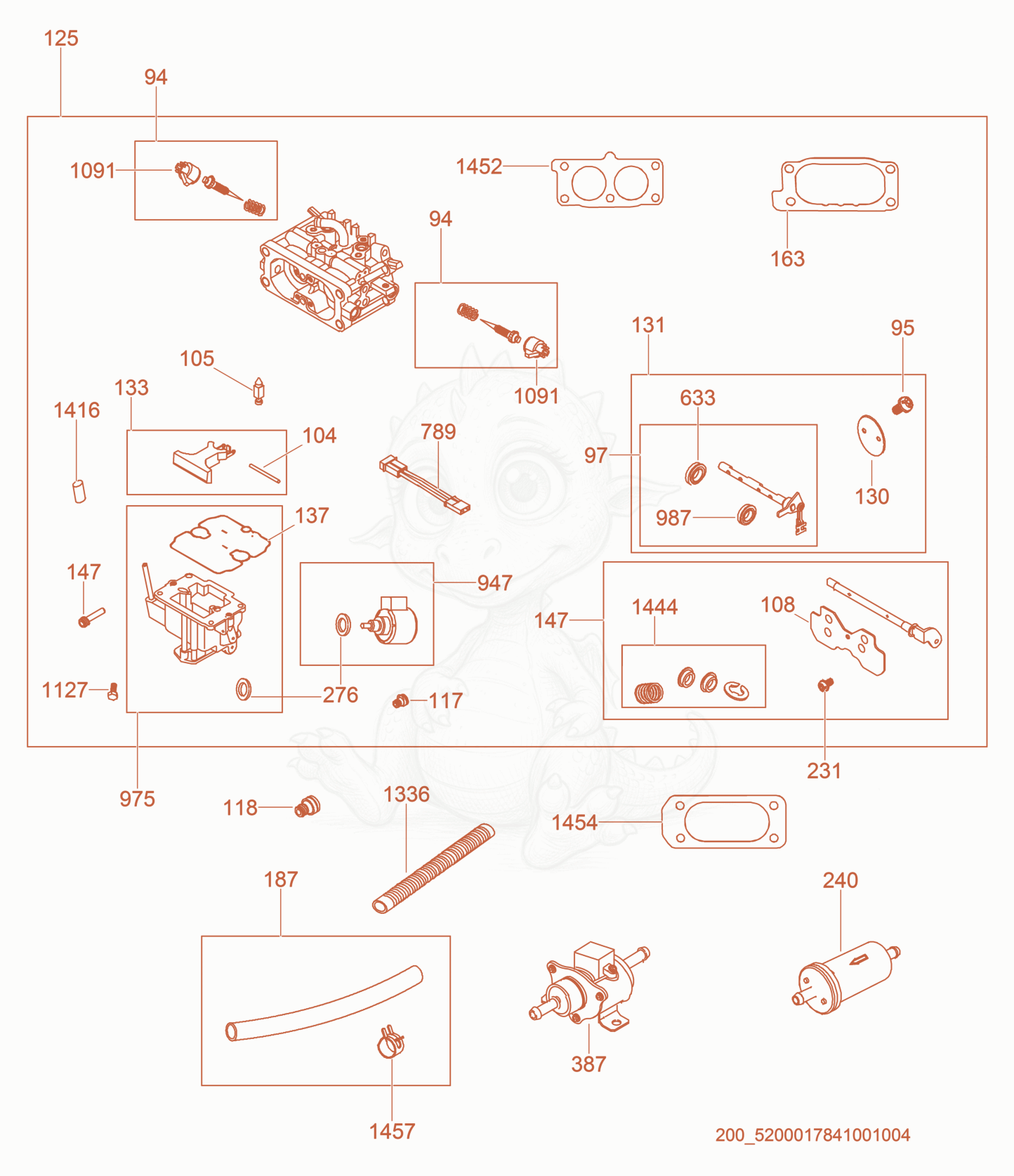

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson CRT48-35V-PS, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

945000216175
$90.89
KIT-IDLE MIXTURE - 5000216175×2
955000118446
$9.03
Screw - 5000118446×1
975000216144
$61.84
SHAFT-THROTTLE - 5000216144×1
1045000158153
$10.64
pin - 5000158153×1
1055000216071
$49.36
VALVE-FLOAT NEEDLE - 5000216071×1
1085200002601
$26.60
VALVE-CHOKE - 5200002601×1
1175000216180
$51.36
JET-MAIN (HIGH ALTITUDE),LEFT - 5000216180×1
1185200002602
$60.54
JET-MAIN (HIGH ALTITUDE),LEFT - 5200002602×1
1255200002605
$663.80
CARBURETOR - 5200002605×1
1305000216145
$25.52
VALVE-THROTTLE - 5000216145×1
1315200002606
$174.99
KIT-THROTTLE SHAFT - 5200002606×1
1335000216052
$56.73
FLOAT-CARBURETOR - 5000216052×1
1375000216058
$37.35
GASKET-FLOAT BOWL - 5000216058×1
1415200002607
$190.06
KIT-CHOKE SHAFT - 5200002607×1
1475000216164
$45.06
JET-SLOW - 5000216164×2
1635000216035
$10.03
GASKET-AIR CLEANER - 5000216035×1
1875200002609
$48.00
FUEL-LINE - 5200002609×1
2315000118446
$9.03
Screw - 5000118446×1
2405200020453Not stocked
Fuel filter×1
2765000216028
$10.93
WASHER-SEALING - 5000216028×2
3875000158160
$312.08
PUMP-FUEL - 5000158160×1
6335000216056
$10.75
SEAL-CHOKE/THROTTLE SHAFT - 5000216056×1
7895200002626
$116.19
WIRING HARNESS - 5200002626×1
9475000216154
$256.26
SOLENOID-FUEL - 5000216154×1
9755000216153
$192.91
BOWL-FLOAT - 5000216153×1
9875000216054
$11.52
SEAL-THROTTLE SHAFT - 5000216054×1
10915000158141
$14.88
CAP-LIMITER - 5000158141×2
11275000216059
$5.29
Screw - 5000216059×1
13365000216101
$13.93
GUARD-WIRE PROTECTIVE - 5000216101×1
14165000216055
$18.29
CAP-CARBURETOR - 5000216055×1
14445200002635
$31.30
SEAL-CHOKE/THROTTLE SHAFT - 5200002635×1
14525000216086
$5.17
GASKET-INTAKE - 5000216086×1
14545000216171
$9.21
GASKET-AIR CLEANER - 5000216171×1
14575000051797
$3.63
clamp - 5000051797×1
