CRT48-35V, Power Steer

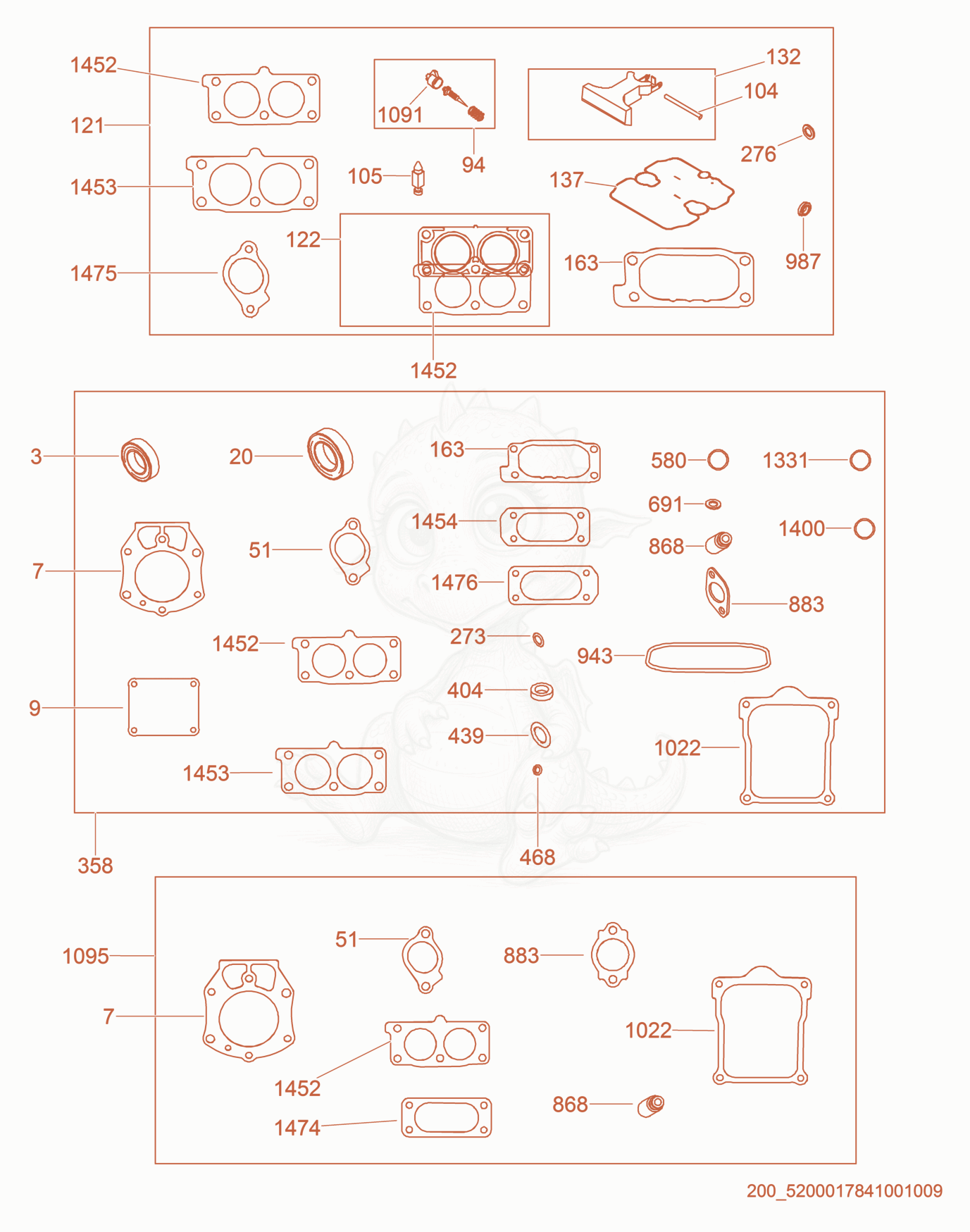

CRT48-35V-PS Valve Kit/Engine Gasket Kit/Carburetor Kit Diagram

Exploded parts diagram of the Valve Kit/Engine Gasket Kit/Carburetor Kit of a Wacker Neuson CRT48-35V-PS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000216125
    $28.04
    SEAL-OIL - 5000216125×1
  • 75000216063
    $52.39
    GASKET-CYLINDER HEAD - 5000216063×1
  • 205000216125
    $28.04
    SEAL-OIL - 5000216125×1
  • 515000216124
    $3.15
    GASKET-INTAKE - 5000216124×1
  • 945000216175
    $90.89
    KIT-IDLE MIXTURE - 5000216175×1
  • 1045000158153
    $10.64
    pin - 5000158153×1
  • 1055000216071
    $49.36
    VALVE-FLOAT NEEDLE - 5000216071×1
  • 1215000216105
    $310.32
    KIT-CARBURETOR OVERHAUL - 5000216105×1
  • 1225200002604
    $22.72
    SPACER-CARBURETOR - 5200002604×1
  • 1335000216052
    $56.73
    FLOAT-CARBURETOR - 5000216052×1
  • 1375000216058
    $37.35
    GASKET-FLOAT BOWL - 5000216058×1
  • 1635000216035
    $10.03
    GASKET-AIR CLEANER - 5000216035×1
  • 2735000118433
    $9.43
    O-ring - 5000118433×1
  • 2765000216028
    $10.93
    WASHER-SEALING - 5000216028×1
  • 3585000216103
    $278.67
    GASKET-SET ENGINE - 5000216103×1
  • 4045000216049
    $9.61
    Washer - 5000216049×1
  • 4395000118494
    $9.19
    O-ring - 5000118494×1
  • 5805000216080
    $12.97
    O-Ring - 5000216080×1
  • 6915000216043
    $9.85
    SEAL-GOVERNOR SHAFT - 5000216043×1
  • 8685000080971
    $17.47
    SEAL-VALVE GUIDE - 5000080971×1
  • 8835000216077
    $7.46
    GASKET-EXHAUST - 5000216077×1
  • 9875000216054
    $11.52
    SEAL-THROTTLE SHAFT - 5000216054×1
  • 10225000216065
    $24.09
    GASKET-ROCKER COVER - 5000216065×1
  • 10915000158141
    $14.88
    CAP-LIMITER - 5000158141×1
  • 14005000216080
    $12.97
    O-Ring - 5000216080×1
  • 14525000216086
    $5.17
    GASKET-INTAKE - 5000216086×1
  • 14535000216143
    $5.74
    GASKET-INTAKE - 5000216143×1
  • 14545000216171
    $9.21
    GASKET-AIR CLEANER - 5000216171×1
  • 14745200020450Not stocked
    Gasket×1
  • 14755200020449Not stocked
    Gasket×1
