CRT48-37V Trowel

CRT48-37V Panel cpl. Diagram

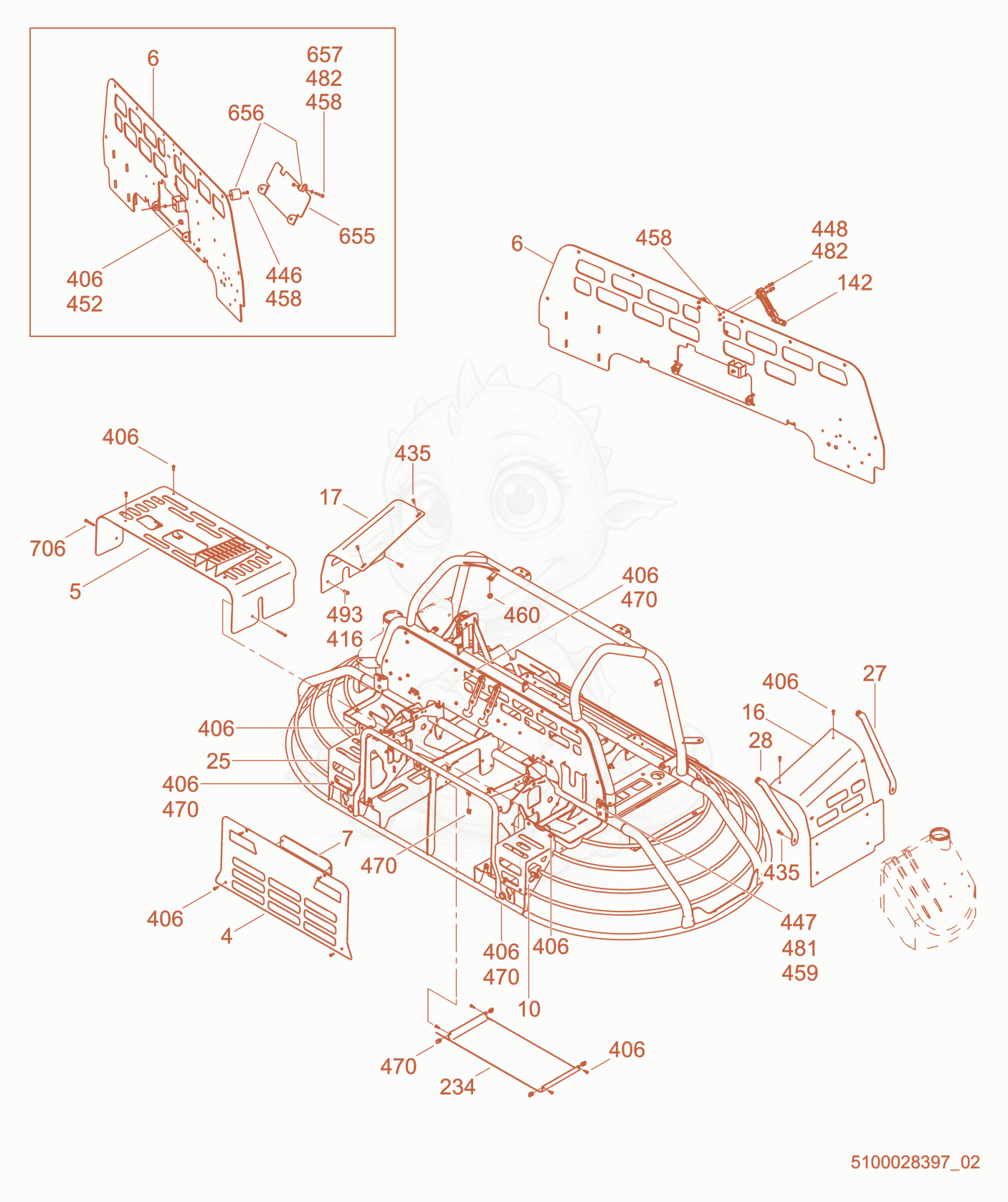

Exploded parts diagram of the Panel cpl. of a Wacker Neuson CRT48-37V, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

45000164099
$193.31
PLATE-FRONT GRILL P-5000112006 - 5000164099×1
55000164100
$293.82
Plate-Foot Assembly P-5000176420 - 5000164100×1
65200024411Not stocked
Plate×1
105000164103
$33.44
PLATE-STEP,CRT48 P-5000176420 - 5000164103×1
165200023454Not stocked
Panel-side×1
175200023453Not stocked
Right side panel×1
255000165031
$132.80
PLATE-STEP,RIGHT P-5000176420 - 5000165031×1
275100015939
$29.98
STRUT-REAR P-5000176420 - 5100015939×1
285100015938
$33.23
STRUT-FRONT P-5000176420 - 5100015938×1
325000155125
$1.16
STUD-BALL 10 x M8 - 5000155125×2
1425000174972
$33.59
LATCH & STUD SP=5100043485 - 5000174972×2
1825000028707
$0.67
CLAMP-THREADED,.21-.63 - 5000028707×2
2345000164908
$266.88
GUARD-SPLASH P-5000176420 - 5000164908×1
4165000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×4
4355000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×2
4465000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×3
4475000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×8
4485000154898
$0.20
SCREW M5 X 30 HX HD,BLK - 5000154898×4
4525000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×2
4535000029117
$0.03
NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×10
4585000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×8
4595000089316
$0.29
NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
4605000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
4705000150959
$0.52
NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×13
4815000010621
$0.13
WASHER B10.5 FLAT - 5000010621×8
4825000010625
$0.14
WASHER B5.3 FLAT - 5000010625×1
4825000010625
$0.14
WASHER B5.3 FLAT - 5000010625×4
4935000010374
$0.22
WASHER B8.4 FLAT - 5000010374×4
6555200024413Not stocked
Cover×1
6565000192831
$18.01
LATCH-DOOR - 5000192831×1
6575000011474
$0.18
SCREW M5X25 HX.HD. - 5000011474×1
7065000011331
$0.25
SCREW M6 X 50 HX.HD. - 5000011331×4
