CRT60-66K

CRT60-66K Hydraulic Piping Diagram

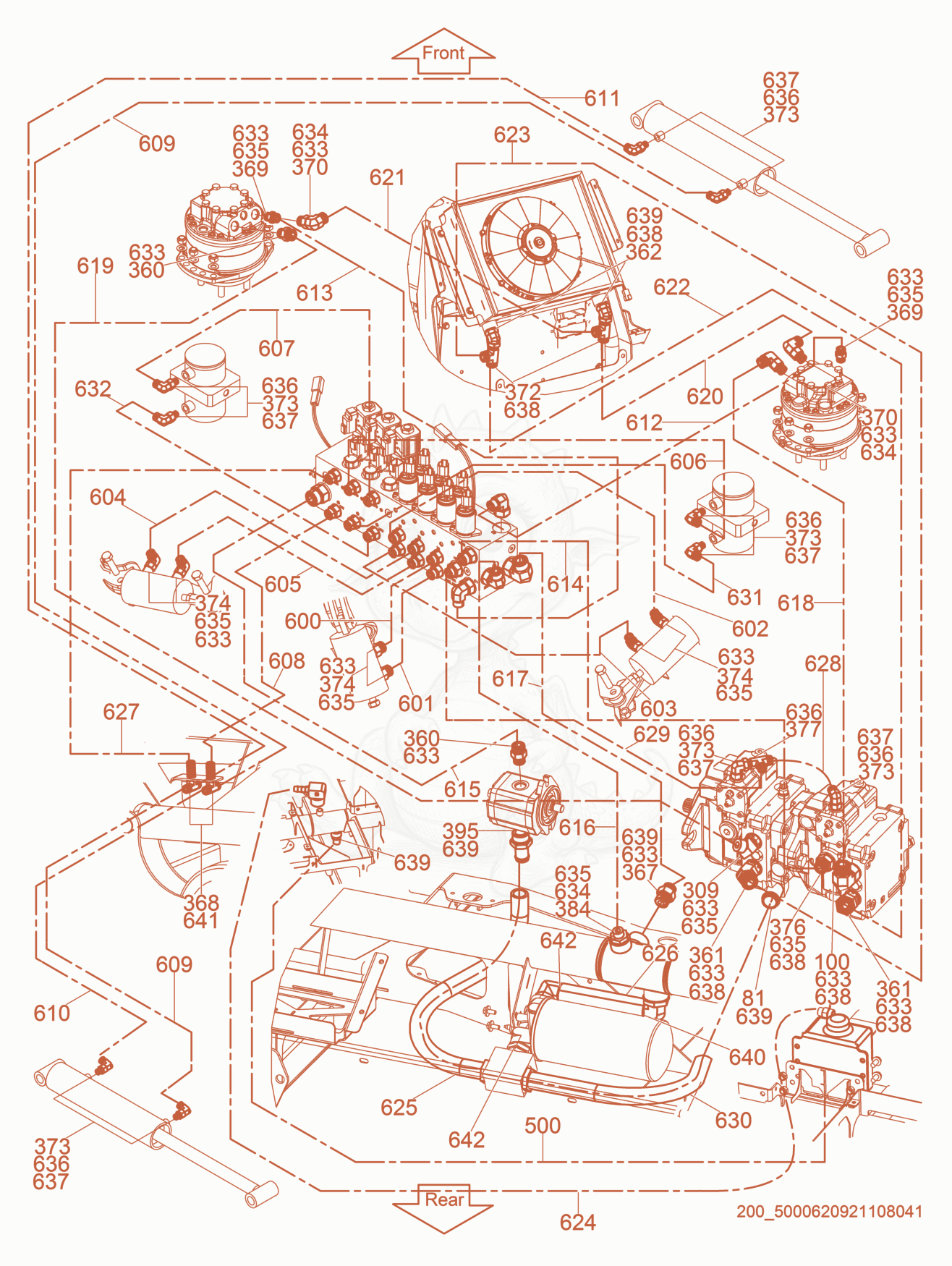

Exploded parts diagram of the Hydraulic Piping of a Wacker Neuson CRT60-66K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 815200003150
    $63.05
    Fitting-1 Hose Barb #12 Male ORB 90 d - 5200003150×1
  • 1005000155051
    $14.42
    FITTING-ELBOW #8 ORB-#10 ORFS - 5000155051×1
  • 3095000086581
    $15.41
    FITTING-SDE45,08X08ST - 5000086581×1
  • 3605000192759
    $8.35
    Fitting-Straight #10 ORF-#10 ORB - 5000192759×2
  • 3615000192760
    $14.86
    Fitting-45 degree #10 ORFS - #8 ORB - 5000192760×2
  • 3625000192761
    $16.97
    Fitting-45 degree #12 ORB - #12 ORFS - 5000192761×2
  • 3675000193614
    $9.05
    Fitting-Strght Thread #10 ORFS-#12SAEORB - 5000193614×1
  • 3685000194024
    $12.76
    Tee-Union,Bulkhead - 5000194024×2
  • 3695000081583
    $4.00
    FITTING #8 - 5000081583×2
  • 3705000119813
    $21.00
    FITTING-90 DEG-#10 ORBX10 ORFS - 5000119813×3
  • 3725000116177
    $28.86
    FITTING-ADAPTER,TEE - 5000116177×2
  • 3735000111285
    $4.64
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×10
  • 3745000078962
    $11.04
    FITTING-ELBOW 90,HYDRAULIC - 5000078962×6
  • 3765000079875
    $4.36
    FITTING-STR.THD.CONNECTOR - 5000079875×1
  • 3775000111280
    $19.56
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 3845000112404
    $13.22
    FITTING-HYD. 8-12 ST. - 5000112404×1
  • 3955200001992
    $20.21
    Fitting-Hose Barb,1 - 5200001992×1
  • 5005200021478Not stocked
    Overflow hose×1
  • 6005000193978
    $59.46
    HOSE - LR STEER CYLINDER A - 5000193978×1
  • 6015000193979
    $40.12
    HOSE - LR STEER CYLINDER B - 5000193979×1
  • 6025000193980
    $52.47
    HOSE - RH FR CYLINDER A - 5000193980×1
  • 6035000193981
    $45.73
    HOSE - RH FR CYLINDER B - 5000193981×1
  • 6045000193982
    $81.47
    HOSE - LH FR CYLINDER A - 5000193982×1
  • 6055000193983
    $58.72
    HOSE - LH FR CYLINDER B - 5000193983×1
  • 6065000193984
    $40.22
    HOSE - RH PITCH CYLINDER - 5000193984×1
  • 6075000193985
    $53.57
    HOSE - LH PITCH CYLINDER - 5000193985×1
  • 6085000193986
    $34.07
    HOSE - WHEEL KIT SUPPLY EXT. - 5000193986×1
  • 6095000193987
    $30.87
    HOSE - WHEEL KIT REAR EXT/FRONT RET - 5000193987×2
  • 6105000193988
    $28.03
    HOSE - WHEEL KIT EXTENDED FRONT - 5000193988×1
  • 6115000193989
    $47.40
    HOSE - WHEEL KIT RETRACT REAR - 5000193989×1
  • 6125000193990
    $42.89
    HOSE - RH MOTOR CASE DRAIN - 5000193990×1
  • 6135000193991
    $65.30
    HOSE - LH MOTOR CASE DRAIN - 5000193991×1
  • 6145000193992
    $42.76
    HOSE - HYDRO CASE DRAIN - 5000193992×1
  • 6155000193993
    $75.52
    HOSE - AUX PUMP TO VALVE - 5000193993×1
  • 6165200001554
    $45.40
    HOSE - VALVE TO TANK - 5200001554×1
  • 6175000193996
    $64.43
    HOSE - TANK RETURN - 5000193996×1
  • 6185000193997
    $211.12
    HOSE - HYDRO TO RH MOTOR - 5000193997×1
  • 6195000193998
    $291.62
    HOSE - HYDRO TO LH MOTOR - 5000193998×1
  • 6205000193999
    $110.32
    HOSE - RH MOTOR TO COOLER - 5000193999×1
  • 6215000194000
    $139.32
    HOSE - LH MOTOR TO COOLER - 5000194000×1
  • 6225000194001
    $78.53
    HOSE - COOLER TO RH HYDRO - 5000194001×1
  • 6235000194002
    $101.87
    HOSE - COOLER TO LH HYDRO - 5000194002×1
  • 6245000194003
    $16.53
    HOSE - BREATHER TANK - 5000194003×1
  • 6255200001555
    $40.71
    HOSE - GEAR PUMP TO FILTER - 5200001555×1
  • 6265200001556
    $12.79
    HOSE - RESERVOIR TO FILTER - 5200001556×1
  • 6275000194025
    $40.28
    HOSE - CRT WHEEL KIT RETRACT - 5000194025×1
  • 6285000194006
    $19.70
    HOSE - CONTROL LINE PUMP TO PUMP - 5000194006×1
  • 6295000194007
    $34.47
    HOSE - CONTROL LINE PUMP TO VALVE - 5000194007×1
  • 6305200003190
    $114.30
    HOSE - FILTER TO CHARGE PUMP - 5200003190×1
  • 6315200003984
    $77.90
    HOSE - RH PITCH CYLINDER - 5200003984×1
  • 6325200003985
    $58.32
    Hose - CRT60 LH PITCH CYLINDER D - 5200003985×1
  • 6335000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×18
  • 6345000080734
    $0.56
    O-RING .924 X.116 DURO90 3-912 - 5000080734×4
  • 6355000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×11
  • 6365000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×11
  • 6375000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×10
  • 6385000080733
    $0.45
    O-RING .755 X.097 DURO90 3-910 - 5000080733×8
  • 6395000083970
    $0.37
    O-RING .926 ID X .070 THK.DIA - 5000083970×4
  • 6405000080735
    $0.77
    O-RING 1.171 X.116 DUR90 3-916 - 5000080735×1
  • 6415000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×6
  • 6425200006764
    $1.47
    O-RING 1.975 x .118 DURO 90 - 5200006764×2
