CRT60-66K

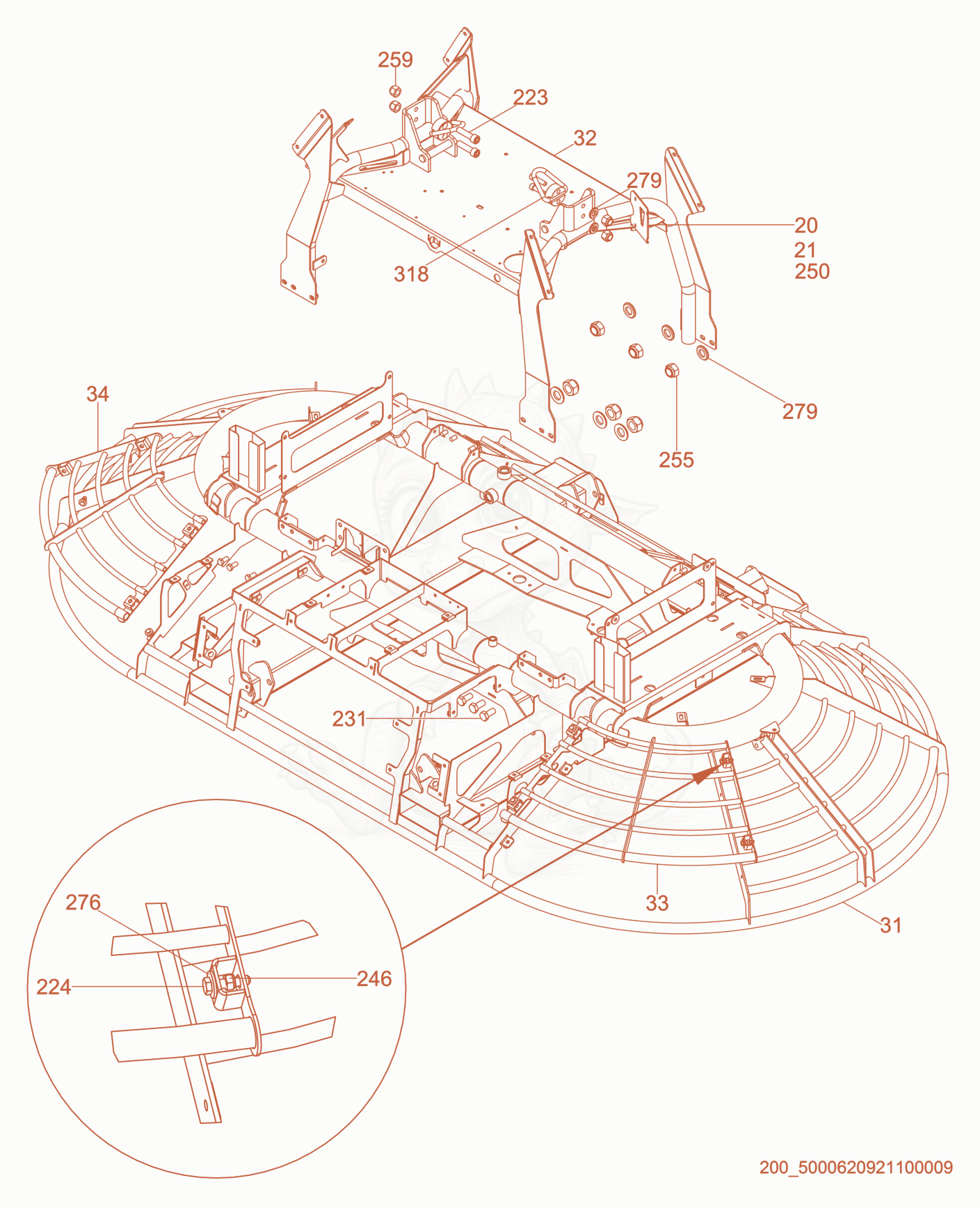

CRT60-66K Frame cpl. Diagram

Exploded parts diagram of the Frame cpl. of a Wacker Neuson CRT60-66K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000165143
    $25.80
    BOTTLE-OVERFLOW - 5000165143×1
  • 215000165144
    $3.23
    CAP-BOTTLE,OVERFLOW - 5000165144×1
  • 315000180500
    $15,191.86
    FRAME-LOWER,CRT60 - 5000180500×1
  • 325000180594
    $1,846.65
    FRAME-UPPER,CRT60 P-5000176420 - 5000180594×1
  • 335000181232
    $364.04
    GUARD-RING ASSY,LEFT P-5000176420 - 5000181232×1
  • 345000183748
    $362.42
    GUARD-RING ASSY,RIGHT P-5000176420 - 5000183748×1
  • 2235000180849
    $3.01
    SCREW 1/2X2 SHCS - 5000180849×4
  • 2245000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×8
  • 2315000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×12
  • 2465000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 2505000183432
    $0.76
    GASKET-CAP,OVERFLOW BOTTLE - 5000183432×1
  • 2555000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×12
  • 2595000117632
    $0.26
    NUT-LOCK 1/2-20,HEX(W/NYLON) - 5000117632×4
  • 2765000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×8
  • 2795000010620
    $0.26
    WASHER B13 FLAT - 5000010620×16
  • 3185000163439
    $16.68
    HINGE-HOOD,GRAY RAL 7043 - 5000163439×2
