CRT60-74L

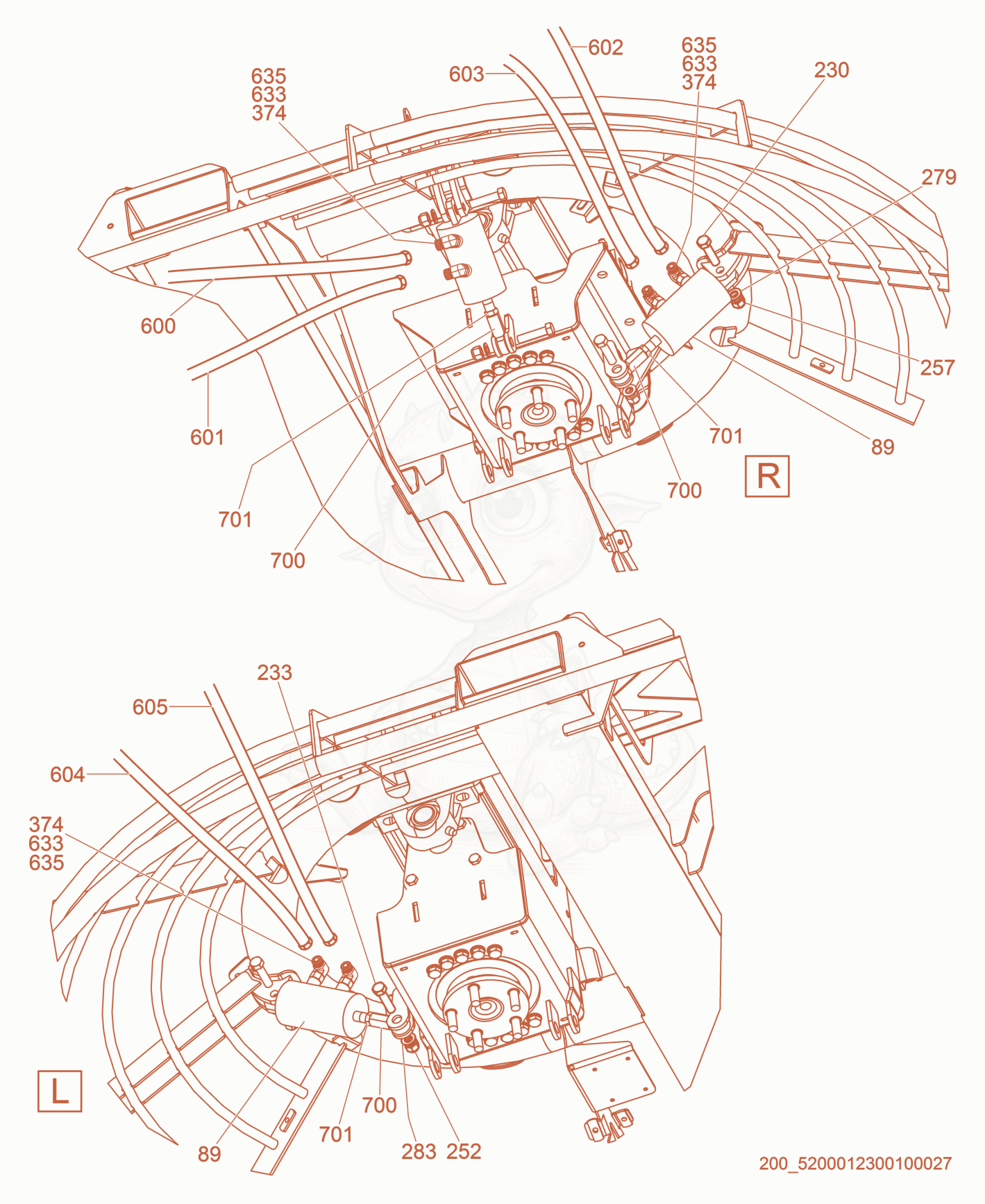

CRT60-74L Steering Hydraulic System Diagram

Exploded parts diagram of the Steering Hydraulic System of a Wacker Neuson CRT60-74L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 895000186618
    $882.07
    Actuator-Hydraulic - 5000186618×3
  • 2305200005881
    $0.82
    Screw-1/2-13 X 2-1/2 HHCS,G8,ZP - 5200005881×3
  • 2335200005880
    $1.03
    Screw-5/8-11 X 2-1/2 HHCS,G8,ZP - 5200005880×3
  • 2525200005882
    $0.34
    Nut-5/8-11 Hex Nut,G8,ZP - 5200005882×3
  • 2575200005885
    $0.18
    Nut-1/2-13 Hex Nut,G8,ZP - 5200005885×3
  • 2795000119289
    $0.33
    WASHER 13 FLAT TP200 - 5000119289×3
  • 2835000010618
    $0.28
    WASHER B17 FLAT - 5000010618×3
  • 3745000078962
    $11.04
    FITTING-ELBOW 90,HYDRAULIC - 5000078962×6
  • 6005000193978
    $59.46
    HOSE - LR STEER CYLINDER A - 5000193978×1
  • 6015000193979
    $40.12
    HOSE - LR STEER CYLINDER B - 5000193979×1
  • 6025000193980
    $52.47
    HOSE - RH FR CYLINDER A - 5000193980×1
  • 6035000193981
    $45.73
    HOSE - RH FR CYLINDER B - 5000193981×1
  • 6045000193982
    $81.47
    HOSE - LH FR CYLINDER A - 5000193982×1
  • 6055000193983
    $58.72
    HOSE - LH FR CYLINDER B - 5000193983×1
  • 6335000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×6
  • 6355000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×6
  • 7005100036055
    $68.71
    RADIAL ROD END BEARING - 5100036055×3
  • 7015100036056
    $2.60
    Nut-Lock, 5/8-18, Gr8, Plated - 5100036056×3
