CRTv 36-26A Trowel, w/Wheel Kit

CRTV36-26A Tank cpl. Diagram

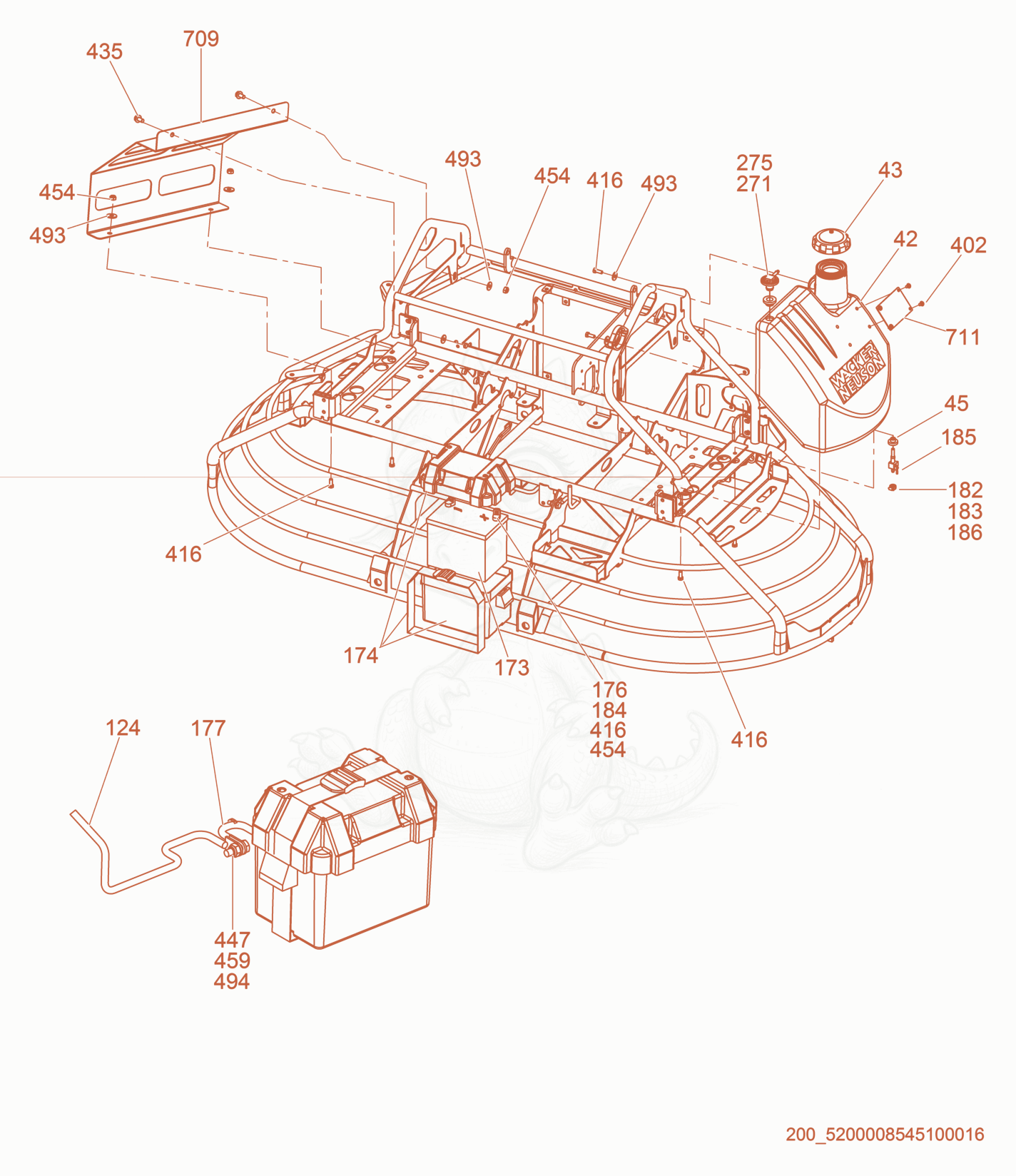

Exploded parts diagram of the Tank cpl. of a Wacker Neuson CRTV36-26A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 425200009133
    $524.62
    Tank-Fuel,CRT48 - 5200009133×1
  • 435000193065
    $23.73
    CAP-FUEL,RACHETING - 5000193065×1
  • 455000110586
    $3.70
    BUSHING-FUEL VALVE - 5000110586×1
  • 1245000165249
    $8.94
    CABLE-GROUNDING,16 - 5000165249×1
  • 1735100044008
    $126.79
    BATTERY-344 CCA - 5100044008×1
  • 1745000118089
    $37.15
    BOX-BATTERY - 5000118089×1
  • 1765000165250
    $16.29
    CABLE-BATTERY,POS,36 - 5000165250×1
  • 1775000118110
    $8.48
    CABLE-BATTERY,NEG,13 - 5000118110×1
  • 1825000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×1
  • 1835000178746
    $21.23
    HOSE-FUEL 57 - 5000178746×1
  • 1845000174901
    $4.21
    WIRE LOOM 43 - 5000174901×1
  • 1855000153104
    $19.97
    VALVE-FUEL,180 DEG,200 MESH - 5000153104×1
  • 1865000174914
    $3.55
    WIRE LOOM 15.75 - 5000174914×1
  • 2715000186628
    $1.32
    GROMMET-ROLLOVER VENT,BUNA-N - 5000186628×1
  • 2755000186627
    $12.58
    VENT-ROLLOVER,FUEL - 5000186627×1
  • 4165000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×7
  • 4355000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
  • 4475000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×1
  • 4545000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 4595000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 4935000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×6
  • 4945000151475
    $0.47
    WASHER-LK M10,SER-INT/EXT-BN783-(A2K) - 5000151475×1
  • 7095200007787
    $138.04
    Plate-Guard P-5000112006 - 5200007787×1
  • 7115000164883
    $27.16
    PLATE-LABEL P-5000176420 - 5000164883×1
