CRTv 36-26A

CRTV36-26A Engine Compartment/Drive cpl. Diagram

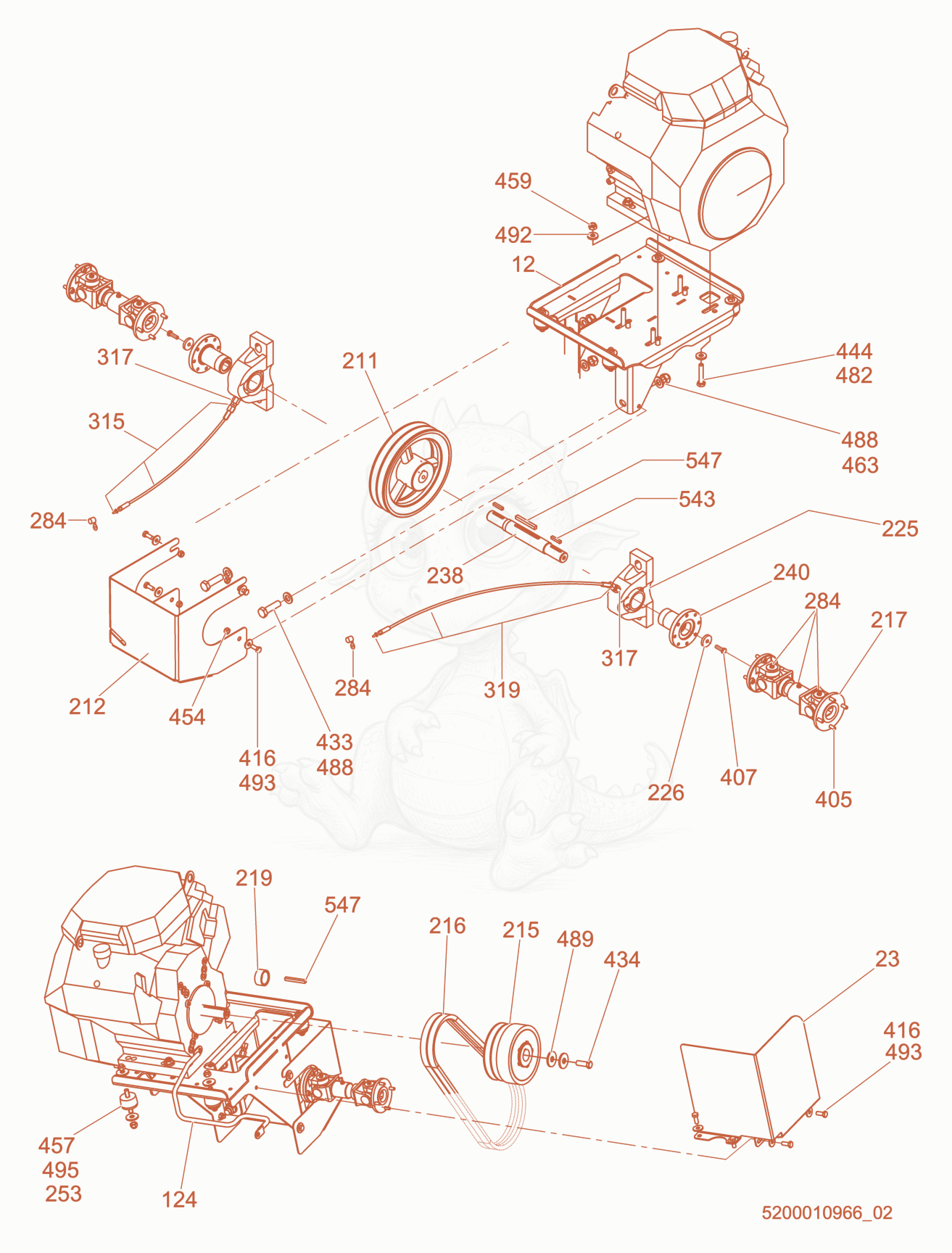

Exploded parts diagram of the Engine Compartment/Drive cpl. of a Wacker Neuson CRTV36-26A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 125000164867
    $1,017.34
    PLATE-ENGINE MOUNT ASSEMBLY P-5000176420 - 5000164867×1
  • 235000165305
    $119.83
    BELTGUARD-24A P-5000176420 - 5000165305×1
  • 1245000165249
    $8.94
    CABLE-GROUNDING,16 - 5000165249×1
  • 2115200007566
    $317.05
    Sheave, Driven 7.4 in - 5200007566×1
  • 2125000165473
    $169.76
    GUARD-SECONDARY,HONDA P-5000176420 - 5000165473×1
  • 2155200007451
    $954.72
    Clutch-Centrifugal - 5200007451×1
  • 2165200007477
    $24.51
    Belt, B44X -V - 5200007477×1
  • 2175000117999
    $529.98
    UNIVERSAL JOINT-SHORT,ASSEMBLY - 5000117999×2
  • 2185000119655
    $2.41
    SHIM-CLUTCH - 5000119655×1
  • 2255000117341
    $164.64
    BEARING-DRIVESHAFT - 5000117341×2
  • 2265000117353
    $1.29
    WASHER 1 ODX.265 IDX.1795 - 5000117353×2
  • 2385000165452
    $93.03
    SHAFT-DRIVE,36 - 5000165452×1
  • 2405000117627
    $309.46
    FITTING-INNER JOINT - 5000117627×2
  • 2535000152587
    $29.73
    SHOCKMOUNT - 5000152587×4
  • 2845000155804
    $0.14
    CAP-GREASE FITTING,RED - 5000155804×8
  • 3155100039337
    $23.75
    Hose-Grease Line,24" - 5100039337×1
  • 3175000172823
    $4.52
    FITTING-ADAPTER - 5000172823×2
  • 3195100039338
    $79.73
    Hose-Grease Line,41" - 5100039338×1
  • 4055000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×16
  • 4075000011470
    $0.11
    SCREW M6 X 20 HX.HD. - 5000011470×4
  • 4165000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×8
  • 4335000011501
    $1.36
    SCREW M14 X 50 HX.HD. - 5000011501×4
  • 4345000164753
    $1.54
    SCREW 7/16-20 X 1-1/4 GR5 Z/P - 5000164753×1
  • 4445000011321
    $0.51
    SCREW M10 X 55 HX.HD. - 5000011321×4
  • 4545000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 4575000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×8
  • 4595000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 4635000117614
    $0.40
    NUT-LOCK M14 CI 8,CL ZI - 5000117614×4
  • 4825000017091
    $0.53
    WASHER 10.5 FLAT - 5000017091×4
  • 4885000117615
    $0.11
    WASHER M14 DIN A,CL ZIN - 5000117615×8
  • 4895000010376
    $0.29
    WASHER A13 FLAT - 5000010376×2
  • 4935000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×8
  • 4955000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×8
  • 5435000073890
    $0.29
    KEY-SQUARE 3/16 X 1.000 - 5000073890×2
  • 5475000165520
    $10.67
    KEY-SQ,1/4 X 2.25 HARDENED,UNDERSIZED - 5000165520×2
