CT30ADT-E,CE-TROWEL

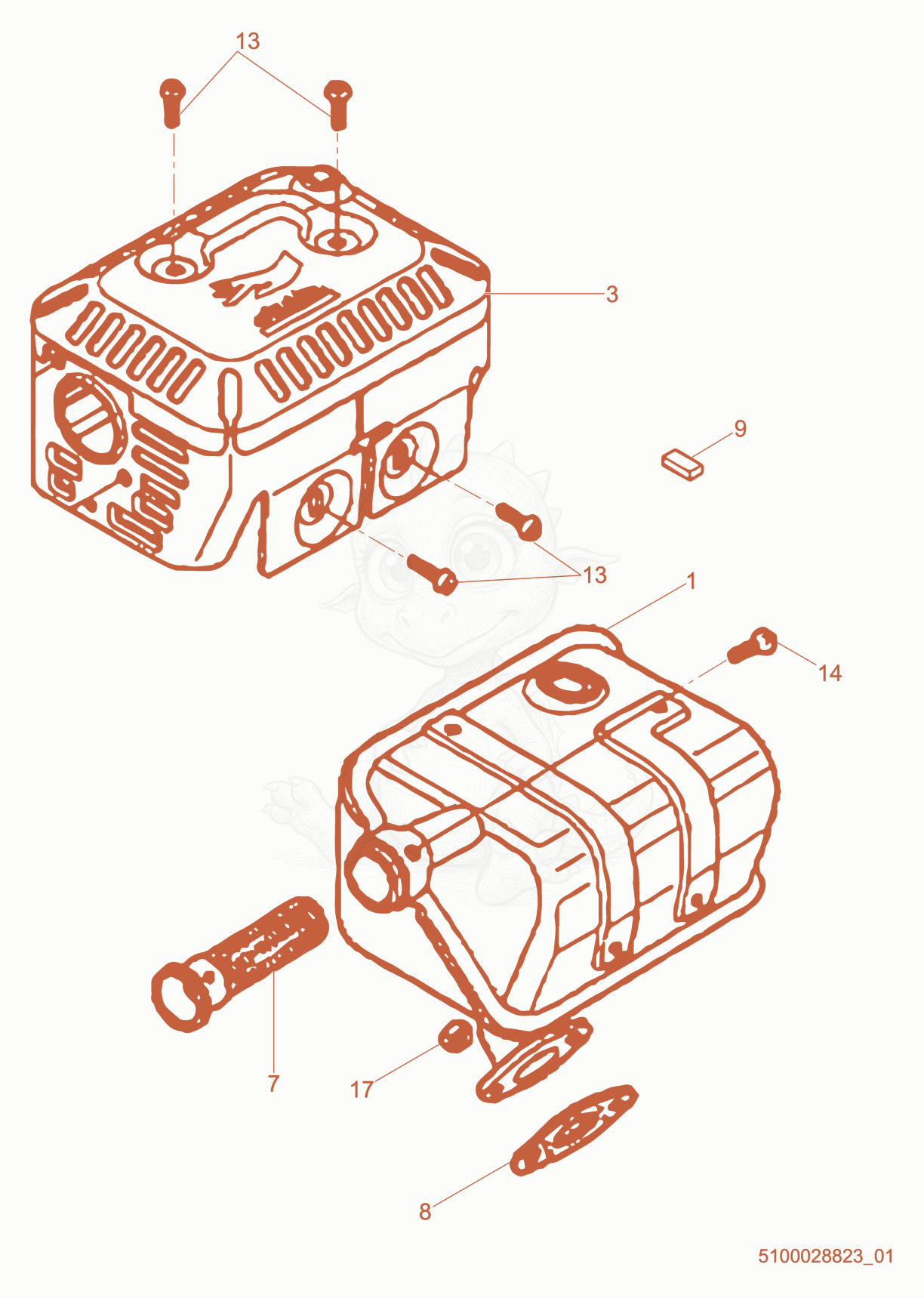

CT30ADT-E Muffler Diagram
- MUFFLER-COMP - 5100028599×1
- GUARD-MUFFLER COVER - 5200006438×1
- SPARK ARRESTER - 5000071075×1
- GASKET-MUFFLER - 5000216516×1
- KEY-SQUARE 4.78 X 38 - 5000070999×1
- SCREW M5 X 8,TAPPING - 5000071070×4
- SCREW-TAPPING 4 X 6 - 5000150916×1
- NUT M8,HEX - 5000071076×2
