CT36-5A Trowel

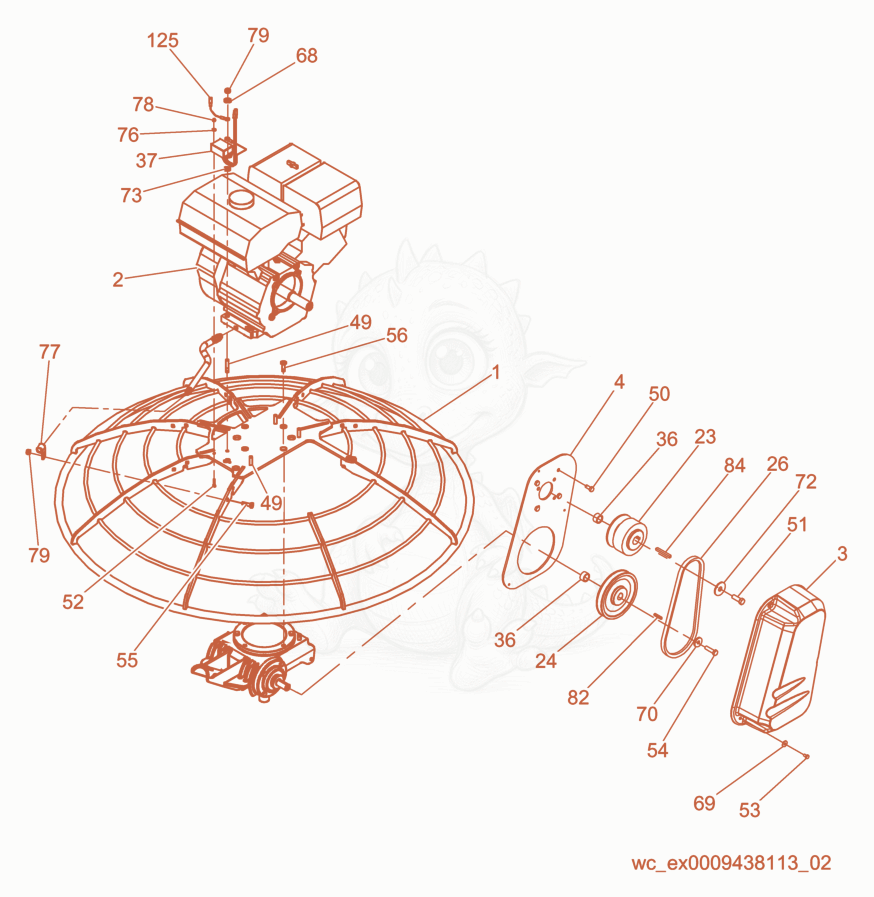

CT36-5A Drive cpl. Diagram

Exploded parts diagram of the Drive cpl. of a Wacker Neuson CT36-5A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100039492
    $1,399.07
    RING-GUARD,CT36 P-5000176420 - 5100039492×1
  • 25000163427
    $2,212.57
    ENGINE 5.5HP COMPLETE - 5000163427×1
  • 35000158968
    $169.79
    GUARD-BELT - 5000158968×1
  • 45000158969
    $316.43
    PLATE-BELTGUARD P-5000176420 - 5000158969×1
  • 235100050577
    $348.70
    CLUTCH-CENTRIFUGAL W/.75 BORE Z5 - 5100050577×1
  • 245000157049
    $24.59
    PULLEY-BK60 X 3/4 - 5000157049×1
  • 265000089632
    $12.47
    BELT-V A26 - 5000089632×1
  • 365000158776
    $2.21
    Spacer - 5000158776×2
  • 375000165554
    $318.76
    SWITCH-GYRO STOP - 5000165554×1
  • 495200007293
    $6.01
    Stud-Engine,Double Ended - 5200007293×4
  • 505000119214Not stocked
    Screw×4
  • 515000161465
    $0.45
    SCREW 5/16-24X2 HH,GR8,ZNC YL - 5000161465×1
  • 525000011486
    $0.19
    SCREW M4 X 20 HX.HD. - 5000011486×2
  • 535000012356
    $0.33
    SCREW M6 X 10 HX.HD. - 5000012356×3
  • 545000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 565000034837
    $0.37
    SCREW M8 X 30 10.9,FLT - 5000034837×4
  • 685000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 695000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×3
  • 705001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 725000073457
    $0.77
    Washer - 5000073457×1
  • 735000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×1
  • 765000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×2
  • 775000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×1
  • 785000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 795000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 825000158850
    $0.24
    KEY - 5000158850×1
  • 845000161464
    $0.65
    KEY SQ. 3/16 X 2-7/8 - 5000161464×1
  • 1255000164632
    $35.73
    WIRING HARNESS,GROUND - 5000164632×1
