CT36-6 Trowel

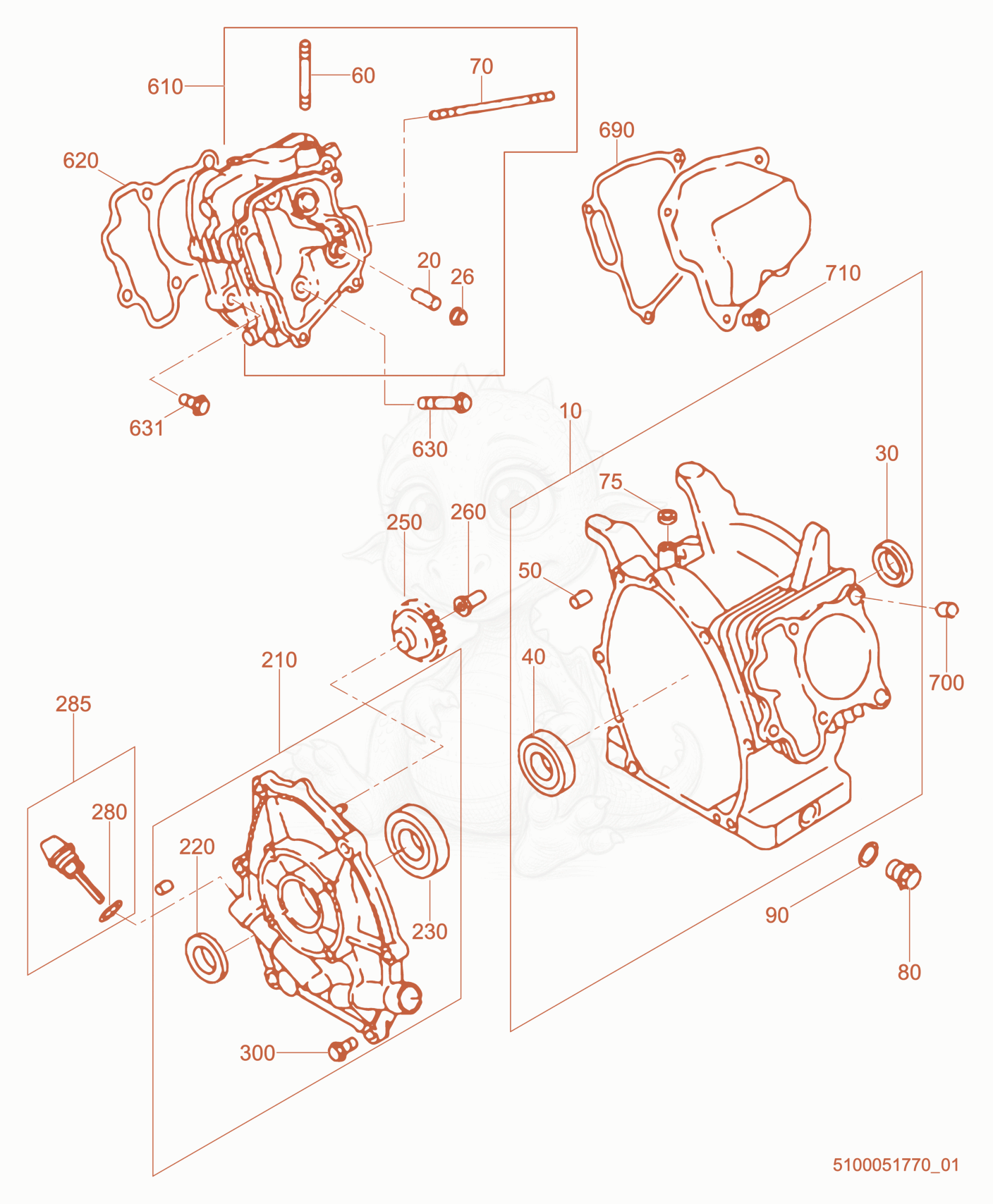

CT36-6 Crankcase cpl. Diagram
- CRANKCASE COMPLETE - 5000205108×1
- GUIDE-VALVE - 5000156440×2
- seal - 5000156441×1
- SEAL-OIL - 5000156442×1
- BEARING-BALL - 5000156443×1
- pipe - 5000156444×2
- STUD - 5200009825×2
- STUD - 5000156446×2
- SEAL-OIL - 5000156447×1
- PLUG-OIL - 5000117215×2
- SEAL-RING - 5000029327×2
- COVER-BEARING ASSEMBLY - 5000156450×1
- SEAL-OIL - 5000156451×1
- BEARING-BALL - 5100051643×1
- GOVERNOR COMPL. - 5000156452×1
- SLEEVE - 5000205111×1
- SEAL-RING - 5100037823×1
- GAUGE-OIL LEVEL - 5000156454×2
- BOLT-FLANGE - 5000156455×6
- CYLINDER HEAD ASSEMBLY - 5000205113×1
- GASKET-CYLINDER HEAD - 5000156457×1
- BOLT-FLANGE - 5000156458×4
- screw - 5000205292×1
- Cover - 5000214809×1
- GASKET-CYLINDER HEAD - 5000156460×1
- pipe - 5000156444×2
- BOLT-FLANGE - 5000156597×4
- gasket set - 5000205115×1
