CT36BDT-E TROWEL

CT36BDT-E Drive System/Engine Diagram

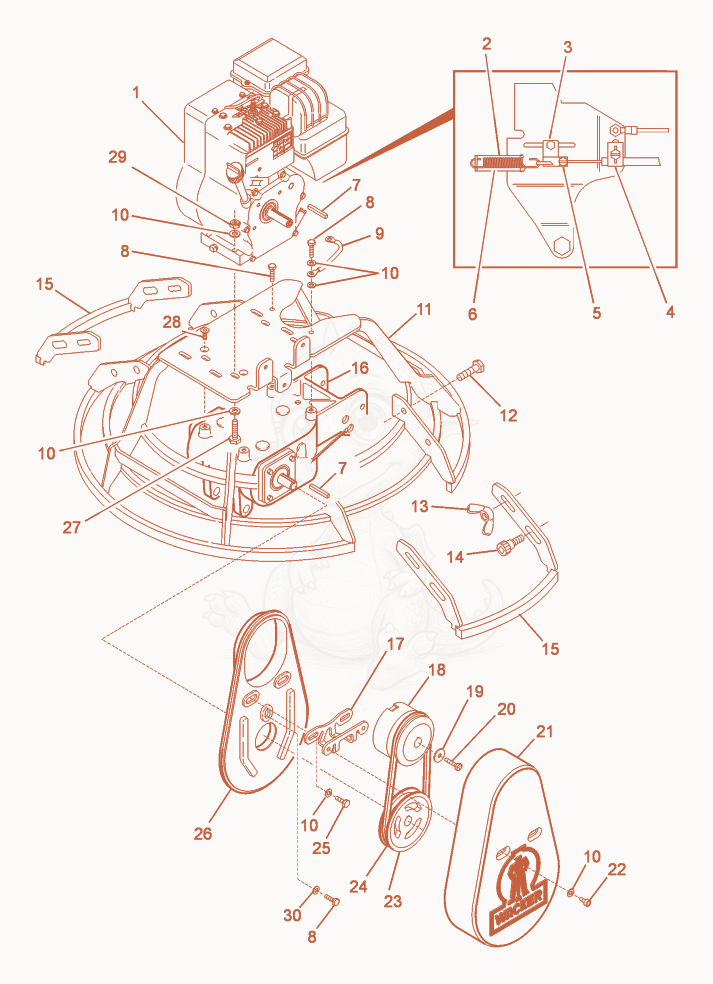

Exploded parts diagram of the Drive System/Engine of a Wacker Neuson CT36BDT-E, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000078740Not stocked
Engine-Briggs×1
25000078688Not stocked
Throttle control mount×1
35000078690
$40.27
BRACKET-LINKAGE SUPPORT - 5000078690×1
35000078691
$5.27
SCREW #6-32 X 1/4,HX.HD. - 5000078691×1
45000030958
$6.12
Clamp - 5000030958×1
45000030959
$4.39
SCREW #10-32 X 5/8,HX.HD.SEM - 5000030959×1
55000078692
$5.69
SCREW #6-32 X 3/8,HX.HD. - 5000078692×1
65000074252
$18.61
spring - 5000074252×1
75003007018
$0.19
KEY-SQUARE 3/16 X 1-13/16 - 5003007018×2
85000011457
$1.49
SCREW M8 X 25 HX.HD. - 5000011457×3
95000079224
$6.03
WIRE-ASSEMBLY,ELECTRIC JUMPER - 5000079224×1
105000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×15
115000089996Not stocked
Guard ring×1
125000025555
$0.20
SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×4
135000110519
$1.32
NUT-WING 3/8-16,LOCKING - 5000110519×4
145000110356
$1.29
SCREW 3/8 X 3/8, SHOULDER - 5000110356×4
155000110330
$100.19
GUARD-EDGER,CT36 - 5000110330×2
165000111640
$559.11
GEARBOX - 5000111640×1
175000085965
$115.66
MOUNT-BELTGUARD - 5000085965×1
185000074019
$252.82
CLUTCH-CENTRIFUGAL W/.75 BORE - 5000074019×1
195000072319
$7.18
WASHER 5/16 X 1-1/8 X 11GA - 5000072319×1
205000054147
$7.78
SCREW 5/16-24 X 1-1/4,HX.LOCK - 5000054147×1
215000073311Not stocked
Beltguard×1
225000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×2
235000075093
$84.67
PULLEY-SINGLE GROOVE,A/B TYPE - 5000075093×1
245000078217
$14.63
BELT-V A24LI - 5000078217×1
255000011456
$0.29
SCREW M8 X 30 HX.HD. - 5000011456×2
265000073585
$80.00
CASTING-PLATE,BELT GUARD MOUNT - 5000073585×1
275000011453
$0.47
SCREW M8 X 45 HX.HD. - 5000011453×4
285000021563
$0.25
SCREW M8 X 20 FLAT HD. - 5000021563×2
295000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×4
305000025636
$0.04
WASHER 5/16 NOM,ST,FLAT - 5000025636×1
