CT36BDT-E TROWEL

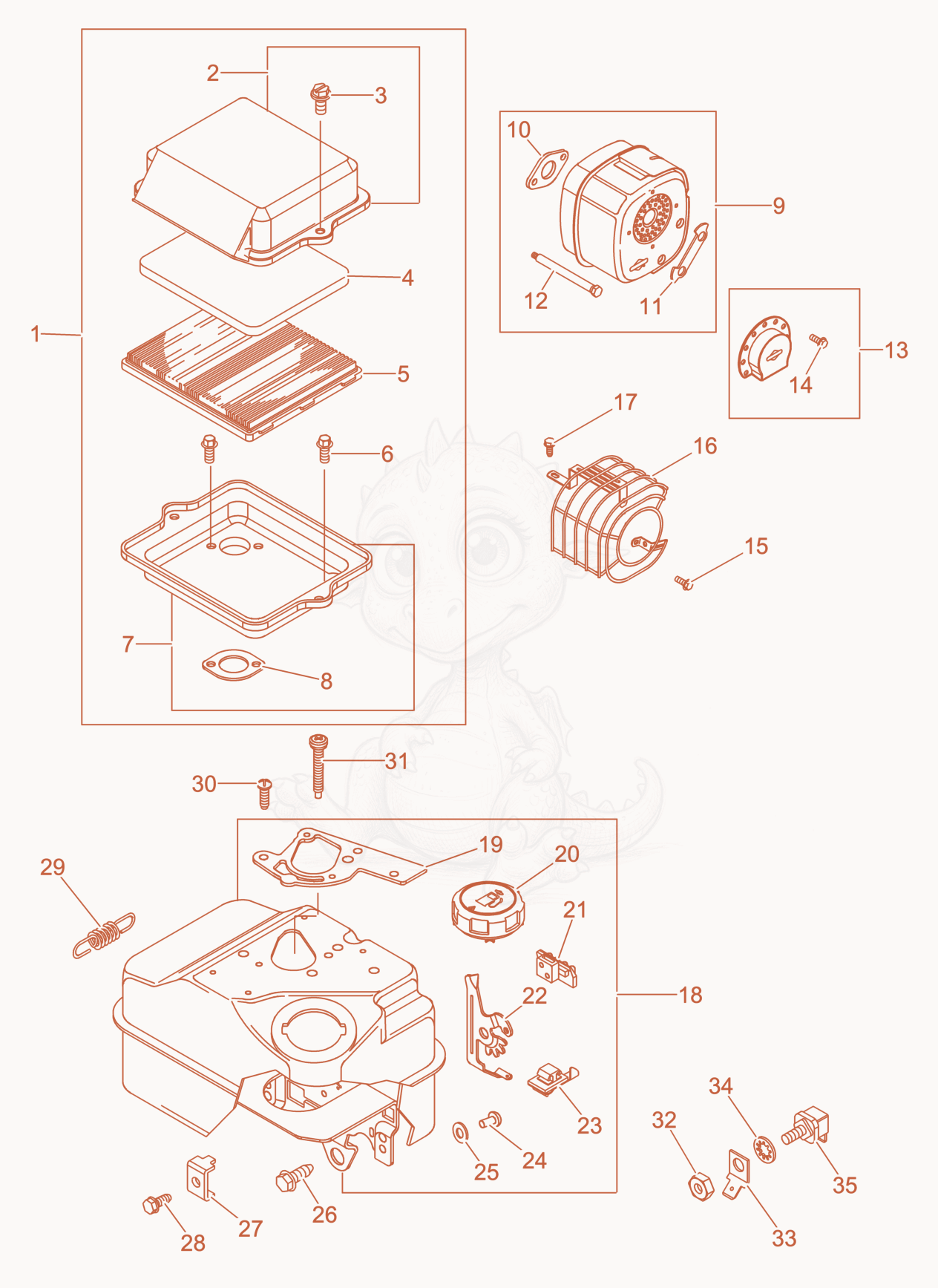

CT36BDT-E Air Cleaner/Muffler/Fuel Tank Diagram

Exploded parts diagram of the Air Cleaner/Muffler/Fuel Tank of a Wacker Neuson CT36BDT-E, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

5000072684
$43.63
SET-ENGINE GASKETS - 5000072684×1
5000084042
$62.98
KIT-CARBURETOR GASKET - 5000084042×1
15000082578
$62.46
AIR CLEANER-ASSEMBLY - 5000082578×1
25000084012
$36.28
COVER - 5000084012×1
35000152659
$9.43
Screw - 5000152659×2
45000077018
$6.30
ELEMENT-PREFILTER AIR CLEANER - 5000077018×1
55000077020
$8.87
ELEMENT-AIR CLEANER CARTRIDGE - 5000077020×1
65000077022
$6.40
SCREW #10-32 X 9/16,HX.HD.MACH - 5000077022×3
75000077021
$9.96
MOUNT-AIR CLEANER BASE - 5000077021×1
85000077023
$10.03
GASKET - 5000077023×1
95000037541
$70.13
Muffler - 5000037541×1
105000071603
$6.96
GASKET-MUFFLER - 5000071603×1
115000071604
$9.64
LOCK-SCREW RETAINER - 5000071604×1
135000051764
$16.30
BAFFLE-ENGINE EXHAUST - 5000051764×1
145000037543
$4.05
SCREW #8-32 X 3/8,HX.HD. - 5000037543×4
155000088627
$6.40
Screw - 5000088627×1
165000071106
$83.00
GUARD-MUFFLER COVER - 5000071106×1
175000020557
$0.32
SCREW 1/4-20 X 1/2 GR5,HEX.HD. - 5000020557×1
185000077040
$174.96
TANK-FUEL - 5000077040×1
195000084019
$5.40
GASKET - 5000084019×1
205000077041
$33.02
CAP-FUEL TANK COVER - 5000077041×1
215000054836
$9.64
GEAR-RACK,GOVERNOR - 5000054836×1
235000075188
$9.85
LEVER-ENGINE STOP SWITCH - 5000075188×1
265000084018
$6.40
screw - 5000084018×1
275000030958
$6.12
Clamp - 5000030958×1
285000030959
$4.39
SCREW #10-32 X 5/8,HX.HD.SEM - 5000030959×1
295000077039
$18.16
Spring - 5000077039×1
305000075120
$3.12
SCREW #10-32 X 3/4 W/LW,RD.HD. - 5000075120×4
315000084043
$7.25
Screw - 5000084043×1
325000030965
$0.11
NUT #8-32,HEX,ZINC PLTD,GR.2 - 5000030965×1
335000118247
$17.81
TERMINAL-GROUND - 5000118247×1
345000118246
$5.56
Washer - 5000118246×1
355000076983Not stocked
Insulator×1
