CT48-11A Trowel

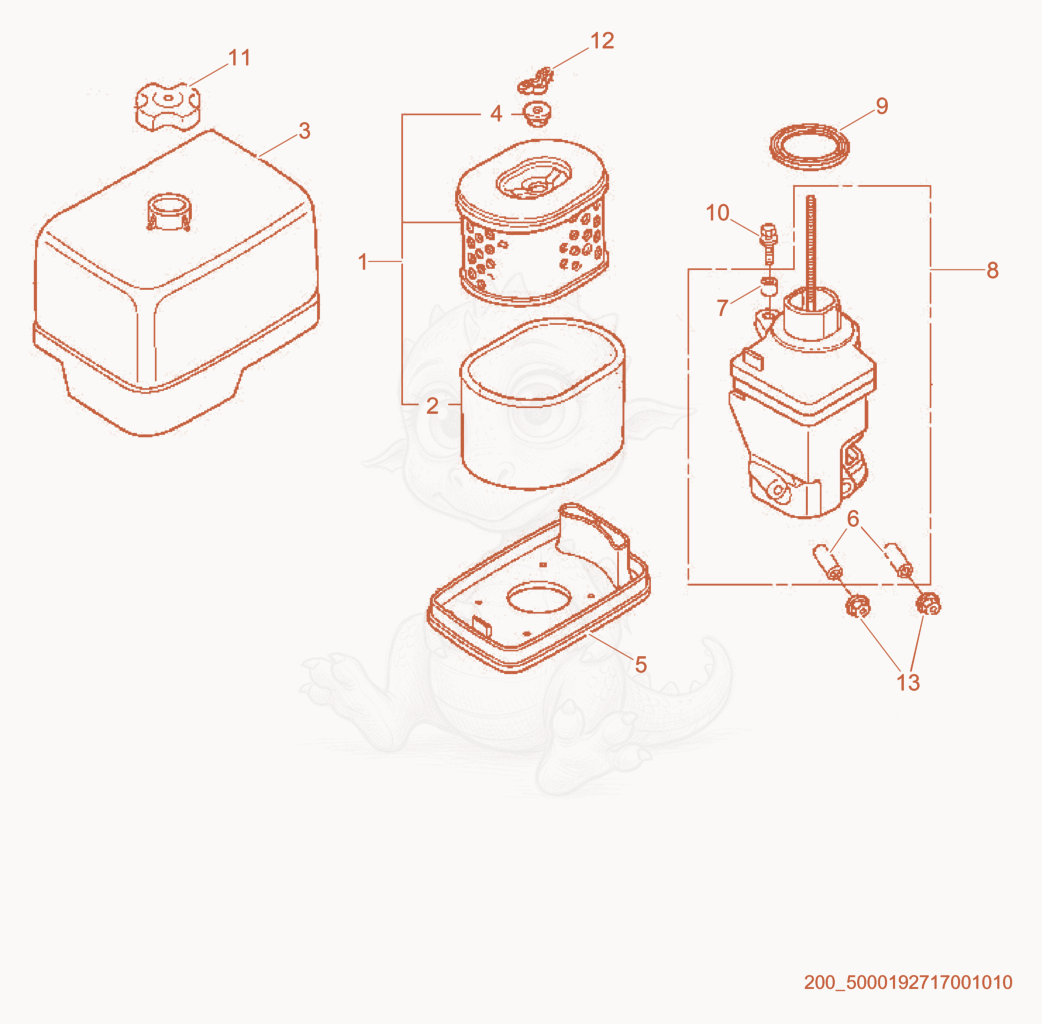

CT48-11A Air Cleaner cpl. Diagram

Exploded parts diagram of the Air Cleaner cpl. of a Wacker Neuson CT48-11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000075847
    $22.81
    ELEMENT-AIR CLEANER - 5000075847×1
  • 25000208620Not stocked
    Element-prefilter×1
  • 35200000441
    $7.40
    Cover-air cleaner - 5200000441×1
  • 45000072343
    $6.93
    GROMMET .240 ID,METALCLAD - 5000072343×1
  • 55200000442
    $21.05
    Mount-air cleaner - 5200000442×1
  • 65000076372
    $5.61
    RING-COLLAR - 5000076372×1
  • 75000071035
    $5.49
    Sleeve - 5000071035×1
  • 85200000443
    $15.50
    Mount-air cleaner - 5200000443×1
  • 95200000440
    $1.13
    Gasket-air cleaner mount - 5200000440×1
  • 105000217494
    $2.59
    SCREW W/WASHER M6 X 22 - 5000217494×1
  • 125000071621
    $7.20
    NUT-WING M6 - 5000071621×1
  • 135000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
