CT48BDT-TROWEL

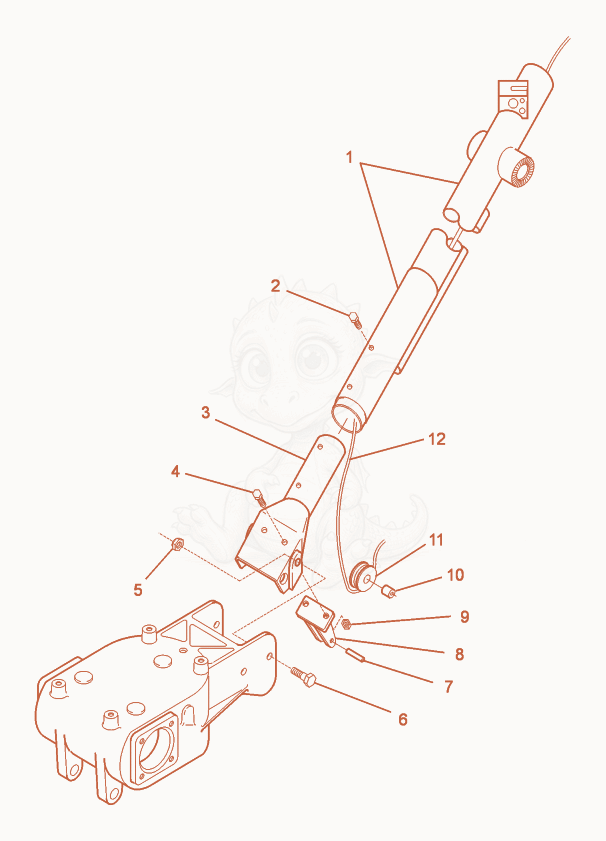

CT48BDT Lower Handle Diagram
- PIPE-HANDLE - 5000080188×1
- SCREW M8 X 16 HX.HD. - 5000012361×2
- KIT-HANDLE BASE - 5000112063×1
- SCREW M8 X 20 HX.HD. - 5000012362×2
- NUT-LOCK M10 HEX. - 5000010365×2
- SCREW M10 X 40 HX.HD. - 5000011318×2
- PIN 6 X 30 ROLL - 5000013769×1
- HOLDER-PULLEY - 5000076182×1
- NUT-LOCK M8 HEX - 5000010367×2
- BUSHING - 5000073348×1
- PULLEY-SMALL - 5000073334×1
- CABLE-PITCH CONTROL - 5000111596×1
